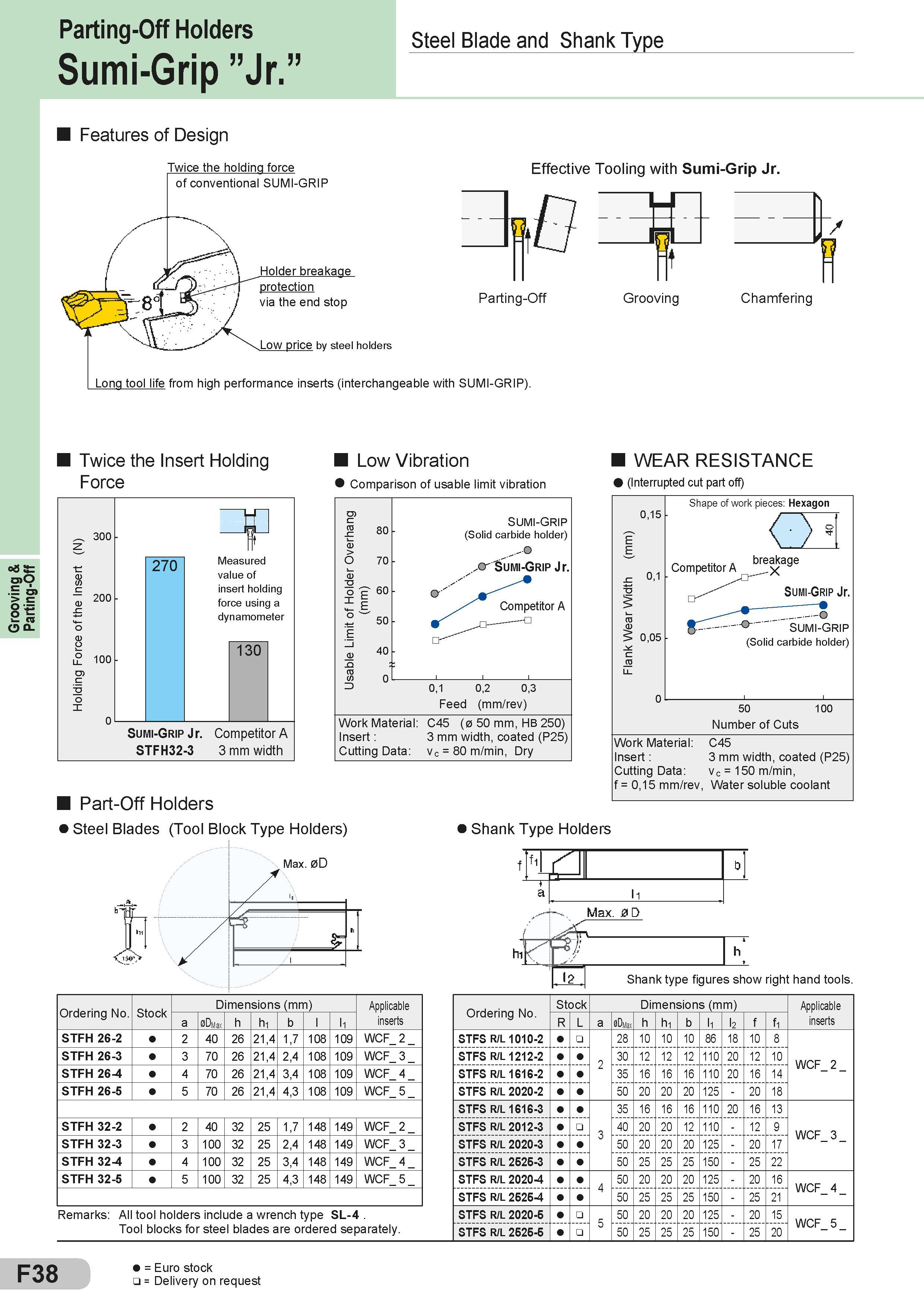

Grooving & Parting-Off Parting-Off Holders Sumi-Grip ”Jr.” Steel Blade and Shank Type Features of Design Twice the holding force of conventional SUMI-GRIP Effective Tooling with Sumi-Grip Jr. Holder breakage protection via the end stop Parting-Off Low price by steel holders Long tool life from high performance inserts (interchangeable with SUMI-GRIP). Grooving Chamfering Twice the Insert Holding Force Low Vibration Comparison of usable limit vibration 0,1 0,2 0,3 Feed (mm/rev) Sumi-Grip Jr. Competitor A STFH32-3 3 mm width Work Material: C45 (0 50 mm, HB 250) Insert : 3 mm width, coated (P25) Cutting Data: vc = 80 m/min, Dry I Part-Off Holders 1 Steel Blades (Tool Block Type Holders) Max. 0D I WEAR RESISTANCE i (Interrupted cut part off) Work Material: C45 Insert : 3 mm width, coated (P25) Cutting Data: vc = 150 m/min, f = 0,15 mm/rev, Water soluble coolant Shank Type Holders z Shank type figures show right hand tools. Ordering No. Stock Dimensions (mm) Размеры указаны в мм Applicable inserts a 0DMax h h1 b l l1 STFH 26-2 2 40 26 21,4 1,7 108 109 WCF 2 STFH 26-3 3 70 26 21,4 2,4 108 109 WCF 3 STFH 26-4 4 70 26 21,4 3,4 108 109 WCF 4 STFH 26-5 5 70 26 21,4 4,3 108 109 WCF 5 STFH 32-2 2 40 32 25 1,7 148 149 WCF 2 STFH 32-3 3 100 32 25 2,4 148 149 WCF 3 STFH 32-4 4 100 32 25 3,4 148 149 WCF 4 STFH 32-5 5 100 32 25 4,3 148 149 WCF 5 Remarks: All tool holders include a wrench type SL-4 . Tool blocks for steel blades are ordered separately. Stock Dimensions (mm) Размеры указаны в мм Ordering No. R L a 0DMax h h1 b l1 l f f1 STFS R/L 1010-2 2 28 10 10 10 86 18 10 8 STFS R/L 1212-2 30 12 12 12 110 20 12 10 STFS R/L 1616-2 35 16 16 16 110 20 16 14 STFS R/L 2020-2 50 20 20 20 125 - 20 18 STFS R/L 1616-3 3 35 16 16 16 110 20 16 13 STFS R/L 2012-3 40 20 20 12 110 - 12 9 STFS R/L 2020-3 50 20 20 20 125 - 20 17 STFS R/L 2525-3 50 25 25 25 150 - 25 22 STFS R/L 2020-4 4 50 20 20 20 125 - 20 16 STFS R/L 2525-4 50 25 25 25 150 - 25 21 STFS R/L 2020-5 5 50 20 20 20 125 - 20 15 STFS R/L 2525-5 50 25 25 25 150 - 25 20 Applicable inserts WCF 2 WCF 3 WCF 4 WCF 5 F38 l = Euro stock = Delivery on request
