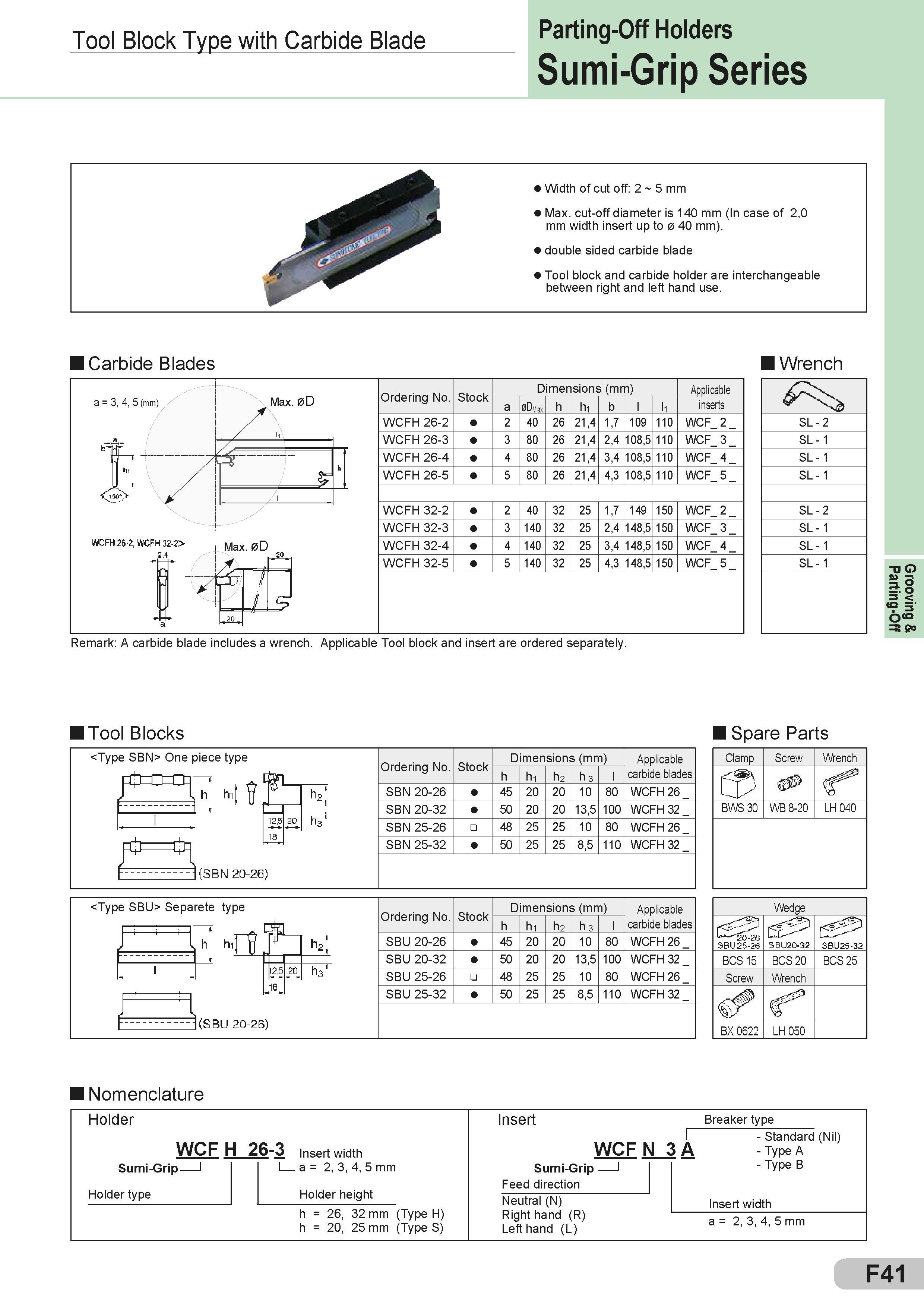

237 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.F41

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. F41 0237 Lab2u

Tool Block Type with Carbide Blade parting-Off Hddere Sumi-Grip Series Width of cut off: 2 5 mm Max. cut-off diameter is 140 mm (In case of 2,0 mm width insert up to 0 40 mm). double sided carbide blade Tool block and carbide holder are interchangeable between right and left hand use. Wrench SL-2 SL - 1 SL - 1 SL - 1 SL - 2 SL - 1 SL - 1 SL - 1 Spare Parts Запасные части Sumitomo и комплектующие Clamp Screw Wrench & BWS30 WB 8-20 LH 040 Wedge SBU 25-26 SBU20-32 SBU25-32 BCS15 BCS 20 BCS 25 Screw Wrench r3 BX 0622 LH 050 Nomenclature Holder WCF H 26-3 Insert width Insert Breaker type I - Standard (Nil) WCF N 3 A - Type A Sumi-Grip I I a = 2, 3, 4, 5 mm Holder type Holder height Sumi-Grip I Feed direction - Type B Insert width Neutral (N) Right hand (R) Left hand (L) h = 26, 32 mm (Type H) h = 20, 25 mm (Type S) a = 2, 3, 4, 5 mm I Tool Blocks One piece type Ordering No. Stock Dimensions (mm) Размеры указаны в мм Applicable carbide blades h h1 h h 3 l SBN 20-26 45 20 20 10 80 WCFH 26 SBN 20-32 50 20 20 13,5 100 WCFH 32 SBN 25-26 48 25 25 10 80 WCFH 26 SBN 25-32 50 25 25 8,5 110 WCFH 32 Ordering No. Stock Dimensions (mm) Размеры указаны в мм Applicable carbide blades h h1 h2 h 3 l SBU 20-26 45 20 20 10 80 WCFH 26 SBU 20-32 50 20 20 13,5 100 WCFH 32 SBU 25-26 48 25 25 10 80 WCFH 26 SBU 25-32 50 25 25 8,5 110 WCFH 32 Separete type Carbide Blades a = 3, 4, 5 (mm) Max. 0D Ordering No. Stock Dimensions (mm) Размеры указаны в мм Applicable inserts a 0DMax h h1 b l l1 WCFH 26-2 2 40 26 21,4 1,7 109 110 WCF 2 WCFH 26-3 3 80 26 21,4 2,4 108,5 110 WCF 3 WCFH 26-4 4 80 26 21,4 3,4 108,5 110 WCF 4 WCFH 26-5 5 80 26 21,4 4,3 108,5 110 WCF 5 WCFH 32-2 2 40 32 25 1,7 149 150 WCF 2 WCFH 32-3 3 140 32 25 2,4 148,5 150 WCF 3 WCFH 32-4 4 140 32 25 3,4 148,5 150 WCF 4 WCFH 32-5 5 140 32 25 4,3 148,5 150 WCF 5 Remark: A carbide blade includes a wrench. Applicable Tool block and insert are ordered separately. F41 Grooving & Parting-Off
