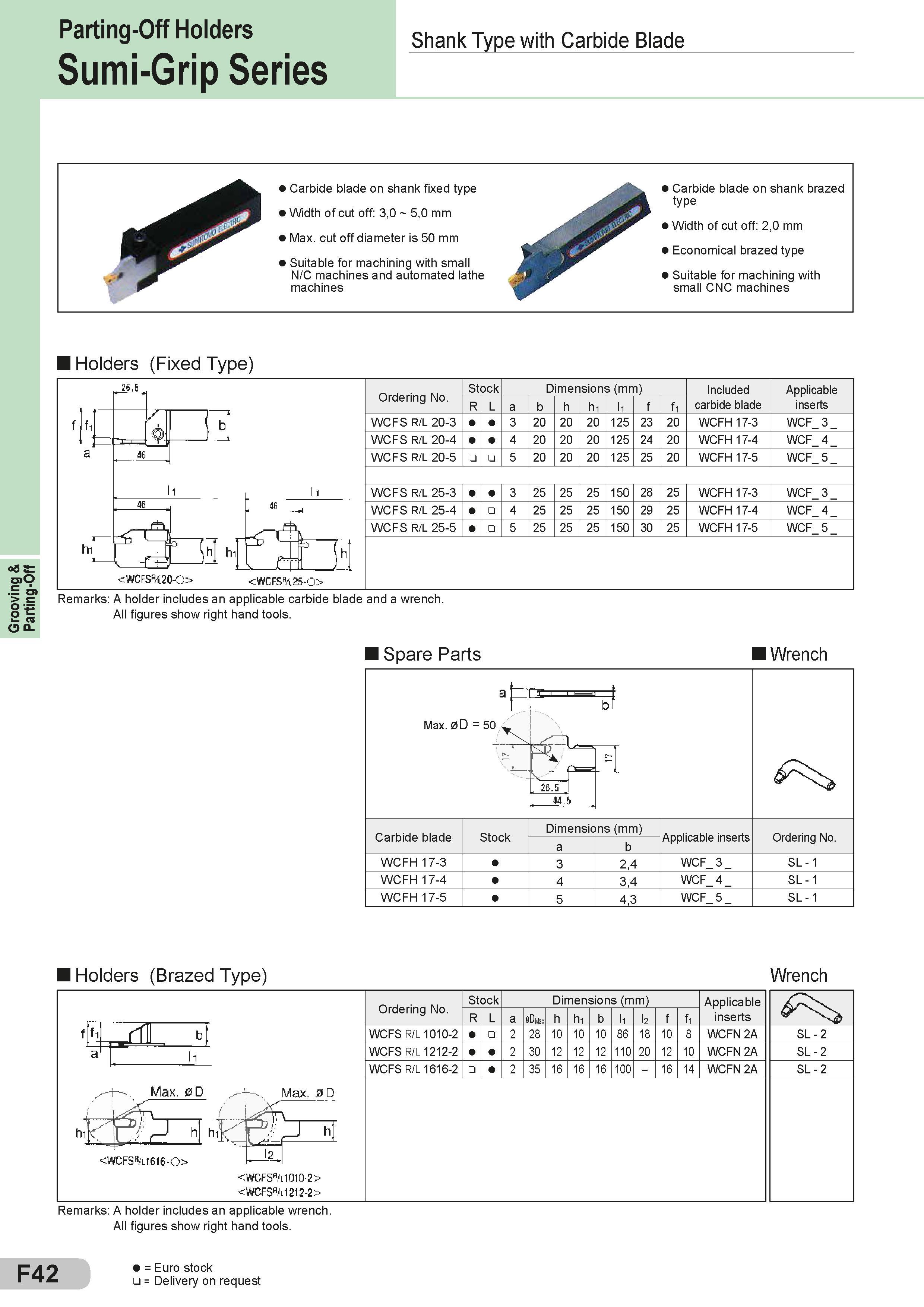

Grooving & Parting-Off Parting-Off Holders Sumi-Grip Series Shank Type with Carbide Blade Holders (Fixed Type) ordering No. Stock Dimensions (mm) Размеры указаны в мм Included carbide blade Applicable inserts R L a b h h1 l1 f f1 WCFS R/L 20-3 3 20 20 20 125 23 20 WCFH 17-3 WCF 3 WCFS R/L 20-4 4 20 20 20 125 24 20 WCFH 17-4 WCF 4 WCFS R/L 20-5 5 20 20 20 125 25 20 WCFH 17-5 WCF 5 WCFS R/L 25-3 3 25 25 25 150 28 25 WCFH 17-3 WCF 3 WCFS R/L 25-4 4 25 25 25 150 29 25 WCFH 17-4 WCF 4 WCFS R/L 25-5 5 25 25 25 150 30 25 WCFH 17-5 WCF 5 Remarks: A holder includes an applicable carbide blade and a wrench. All figures show right hand tools. Spare Parts Запасные части Sumitomo и комплектующие I Wrench ITS Max. 0D = 50 26.5 M.S Carbide blade WCFH 17-3 WCFH 17-4 WCFH 17-5 Stock Dimensions (mm) Размеры указаны в мм b 2,4 Applicable inserts WCF 3 Ordering No. SL - 1 3,4 4,3 WCF 4 WCF 5 SL - 1 SL - 1 Holders (Brazed Type) Wrench ordering No. Stock Dimensions (mm) Размеры указаны в мм Applicable inserts R L a 0DMax h h1 b l1 l f f1 WCFS R/L 1010-2 2 28 10 10 10 86 18 10 8 WCFN 2A SL-2 WCFS R/L 1212-2 2 30 12 12 12 110 20 12 10 WCFN 2A SL - 2 WCFS R/L 1616-2 2 35 16 16 16 100 - 16 14 WCFN 2A SL - 2 Remarks: A holder includes an applicable wrench. All figures show right hand tools. F42 = Euro stock = Delivery on request
