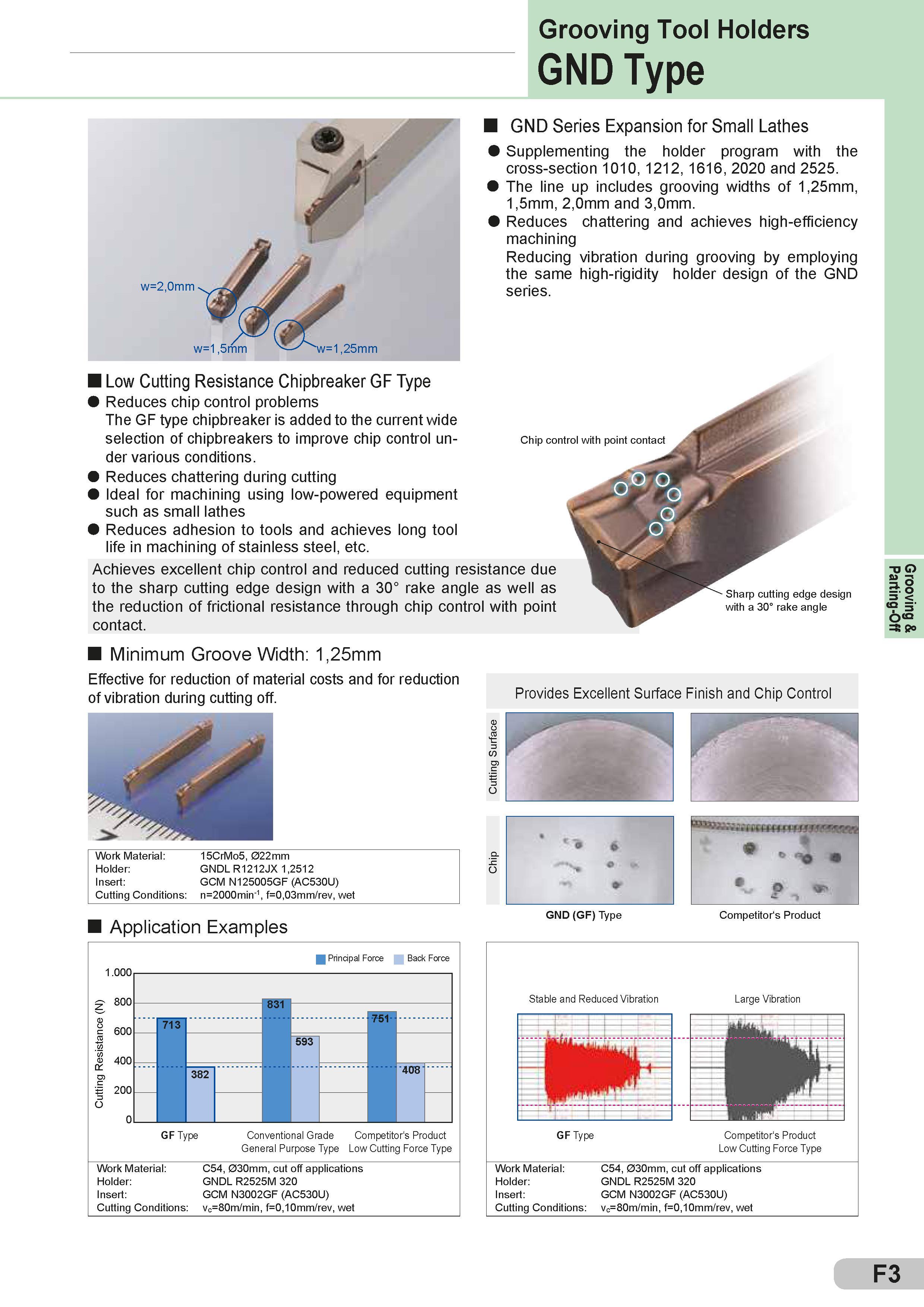

Grooving Tool Holders GND Type GND Series Expansion for Small Lathes Supplementing the holder program with the cross-section 1010, 1212, 1616, 2020 and 2525. The line up includes grooving widths of 1,25mm, 1,5mm, 2,0mm and 3,0mm. Reduces chattering and achieves high-efficiency machining Reducing vibration during grooving by employing the same high-rigidity holder design of the GND series. Low Cutting Resistance Chipbreaker GF Type Reduces chip control problems The GF type chipbreaker is added to the current wide selection of chipbreakers to improve chip control un- Chip control with point contact der various conditions. Reduces chattering during cutting Ideal for machining using low-powered equipment such as small lathes Reduces adhesion to tools and achieves long tool life in machining of stainless steel, etc. Achieves excellent chip control and reduced cutting resistance due to the sharp cutting edge design with a 30° rake angle as well as the reduction of frictional resistance through chip control with point contact. Minimum Groove Width: 1,25mm Effective for reduction of material costs and for reduction of vibration during cutting off Provides Excellent Surface Finish and Chip Control GND (GF) Type Competitors Product Application Examples 1.000 <2 800 ce nc 600 ta ist si 2 400 cn ttin 200 u C 0 Work Material: C54, 030mm, cut off applications Holder: GNDL R2525M 320 Insert: GCM N3002GF (AC530U) Cutting Conditions: vc=80m/min, f=0,10mm/rev, wet Principal Force Back Force 831 751 713 593 382 408 GF Type Conventional Grade Competitor's Product General Purpose Type Low Cutting Force Type Stable and Reduced Vibration Large Vibration GF Type Competitor's Product Low Cutting Force Type Work Material: C54, 030mm, cut off applications Holder: GNDL R2525M 320 Insert: GCM N3002GF (AC530U) Cutting Conditions: vc=80m/min, f=0,10mm/rev, wet F3 Grooving & Parting-Off
