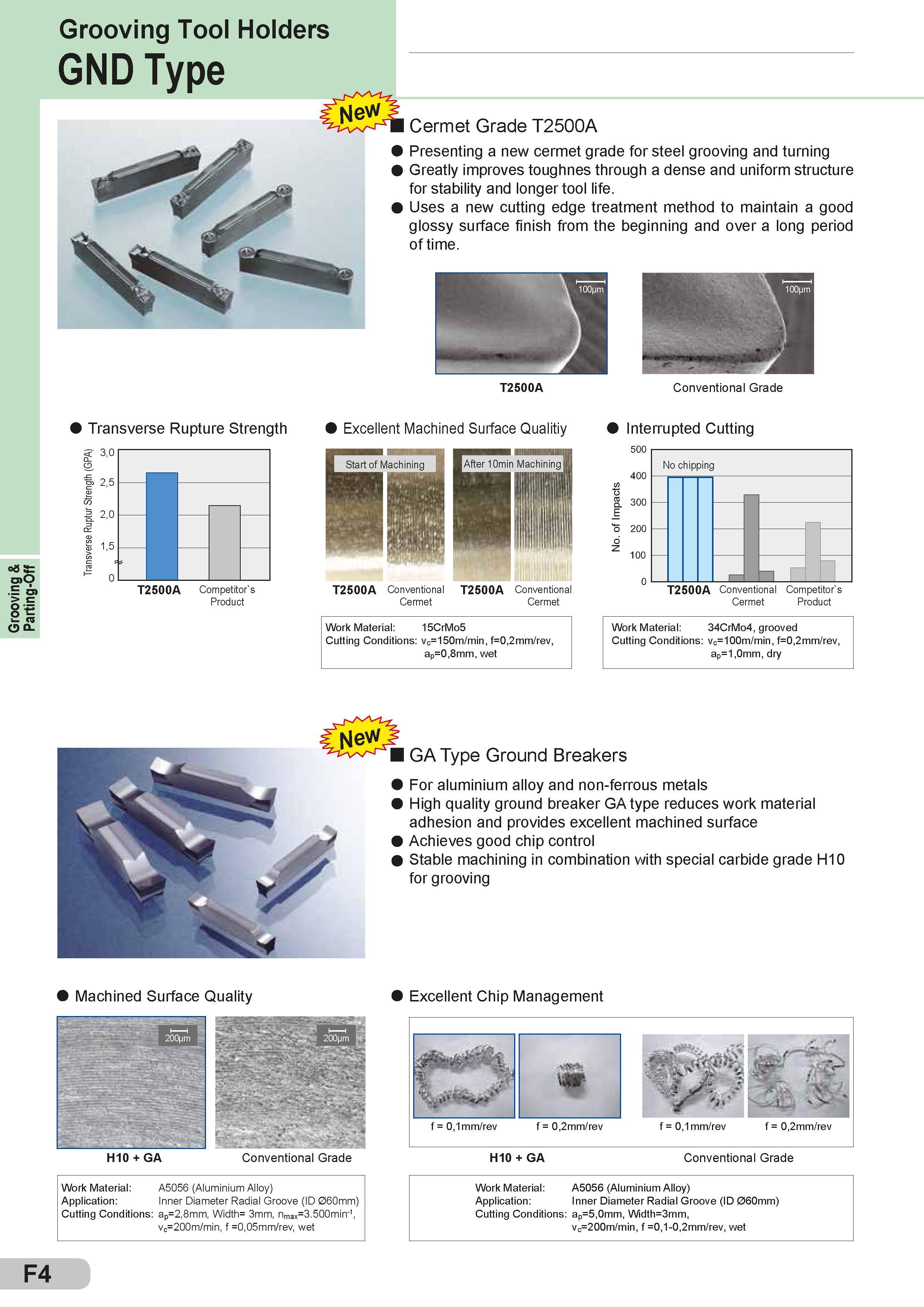

Grooving & Parting-Off Grooving Tool Holders GND Type Cermet Grade T2500A Presenting a new cermet grade for steel grooving and turning Greatly improves toughnes through a dense and uniform structure for stability and longer tool life. Uses a new cutting edge treatment method to maintain a good glossy surface finish from the beginning and over a long period of time. T2500A Conventional Grade Transverse Rupture Strength T2500A Competitor's Product Excellent Machined Surface Qualitiy III Iki in... T2500A Conventional T2500A Conventional Cermet Cermet Interrupted Cutting 500 300 100 No chipping =i T2500A Conventional Competitor's Cermet Product 400 o 200 0 Work Material: 15CrMo5 Cutting Conditions: vc=150m/min, f=0,2mm/rev, ap=0,8mm, wet Work Material: 34CrMo4, grooved Cutting Conditions: vc=100m/min, f=0,2mm/rev, ap=1,0mm, dry Machined Surface Quality H10 + GA Conventional Grade Work Material: A5056 (Aluminium Alloy) Application: Inner Diameter Radial Groove (ID 060mm) Cutting Conditions: ap=2,8mm, Width= 3mm, nmax=3.500min'1; vc=200m/min, f =0,05mm/rev, wet GA Type Ground Breakers For aluminium alloy and non-ferrous metals High quality ground breaker GA type reduces work material adhesion and provides excellent machined surface Achieves good chip control Stable machining in combination with special carbide grade H10 for grooving Excellent Chip Management O t , V :y ,-.y- v , -3T1 : y - if- T&J L V f = 0,1mm/rev f = 0,2mm/rev f = 0,1mm/rev f = 0,2mm/rev H10 + GA Conventional Grade Work Material: A5056 (Aluminium Alloy) Application: Inner Diameter Radial Groove (ID 060mm) Cutting Conditions: ap=5,0mm, Width=3mm, vc=200m/min, f =0,1-0,2mm/rev, wet F4
