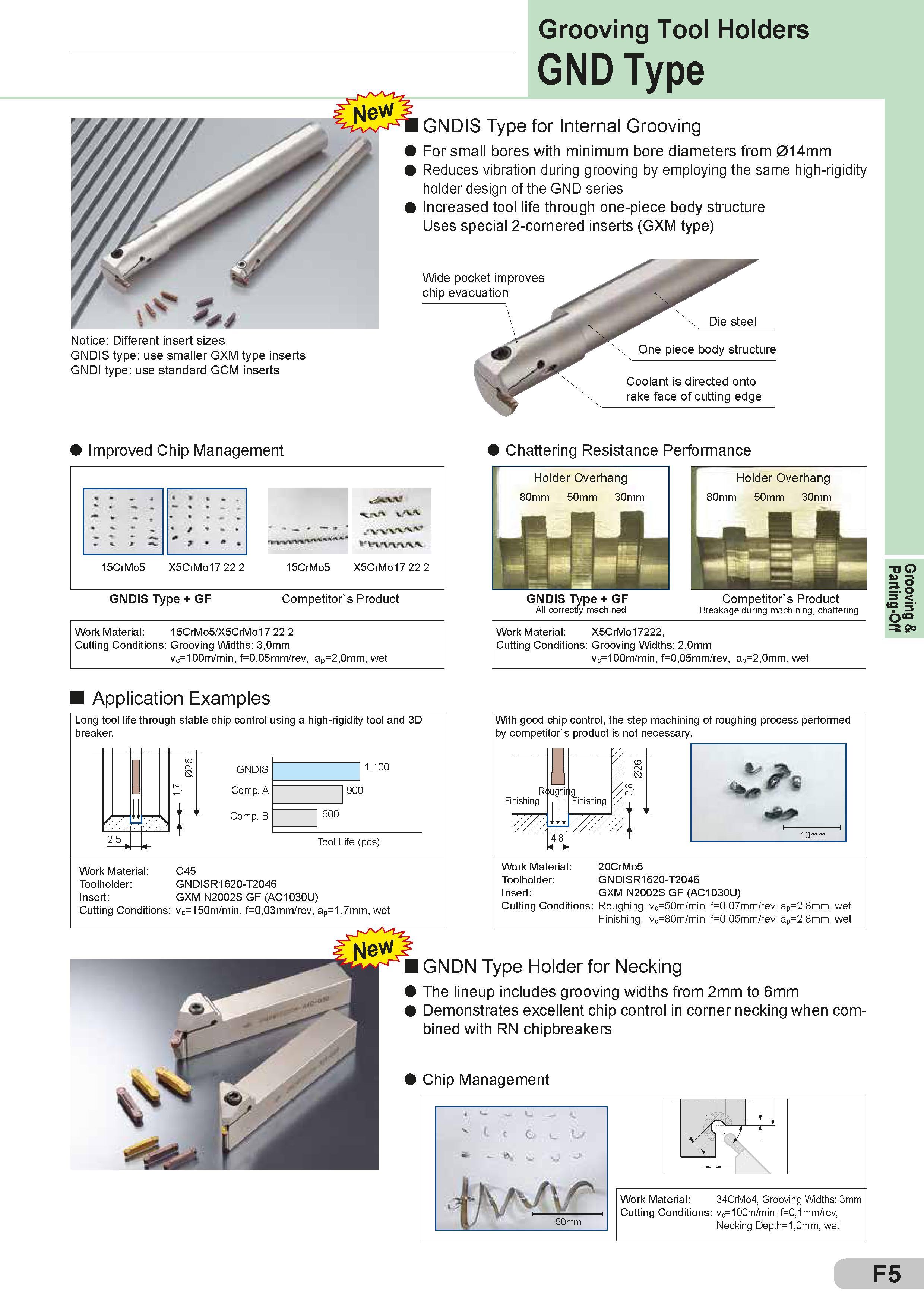

Notice: Different insert sizes GNDIS type: use smaller GXM type inserts GNDI type: use standard GCM inserts Grooving Tool Holders GND Type GNDIS Type for Internal Grooving For small bores with minimum bore diameters from 014mm Reduces vibration during grooving by employing the same high-rigidity holder design of the GND series Increased tool life through one-piece body structure Uses special 2-cornered inserts (GXM type) Wide pocket improves chip evacuation Die steel One piece body structure Coolant is directed onto rake face of cutting edge Improved Chip Management 15CrMo5 X5CrMo17 22 2 15CrMo5 X5CrMo17 22 2 GNDIS Type + GF Competitor's Product Work Material: 15CrMo5/X5CrMo17 22 2 Cutting Conditions: Grooving Widths: 3,0mm vc=100m/min, f=0,05mm/rev, ap=2,0mm, wet Chattering Resistance Performance r Holder Overhang 80mm 50mm 30mm LI a : ; T H GNDIS Type + GF All correctly machined Holder Overhang 80mm 50mm 30mm Competitor's Product Breakage during machining, chattering Work Material: X5CrMo17222, Cutting Conditions: Grooving Widths: 2,0mm vc=100m/min, f=0,05mm/rev, ap=2,0mm, wet Application Examples Long tool life through stable chip control using a high-rigidity tool and 3D breaker. 2,5 GNDIS Comp. A Comp. B I 1.100 900 I 600 Tool Life (pcs) Work Material: C45 Toolholder: GNDISR1620-T2046 Insert: GXM N2002S GF (AC1030U) Cutting Conditions: vc=150m/min, f=0,03mm/rev, ap=1,7mm, wet With good chip control, the step machining of roughing process performed by competitor's product is not necessary. Finishing Roughing I in 4,8 Finishing Work Material: 20CrMo5 Toolholder: GNDISR1620-T2046 Insert: GXM N2002S GF (AC1030U) Cutting Conditions: Roughing: vc=50m/min, f=0,07mm/rev, ap=2,8mm, wet Finishing: vc=80m/min, f=0,05mm/rev, ap=2,8mm, wet GNDN Type Holder for Necking The lineup includes grooving widths from 2mm to 6mm Demonstrates excellent chip control in corner necking when combined with RN chipbreakers Chip Management Work Material: 34CrMo4, Grooving Widths: 3mm Cutting Conditions: vc=100m/min, f=0,1mm/rev; Necking Depth=1,0mm, wet F5 Grooving & Parting-Off
