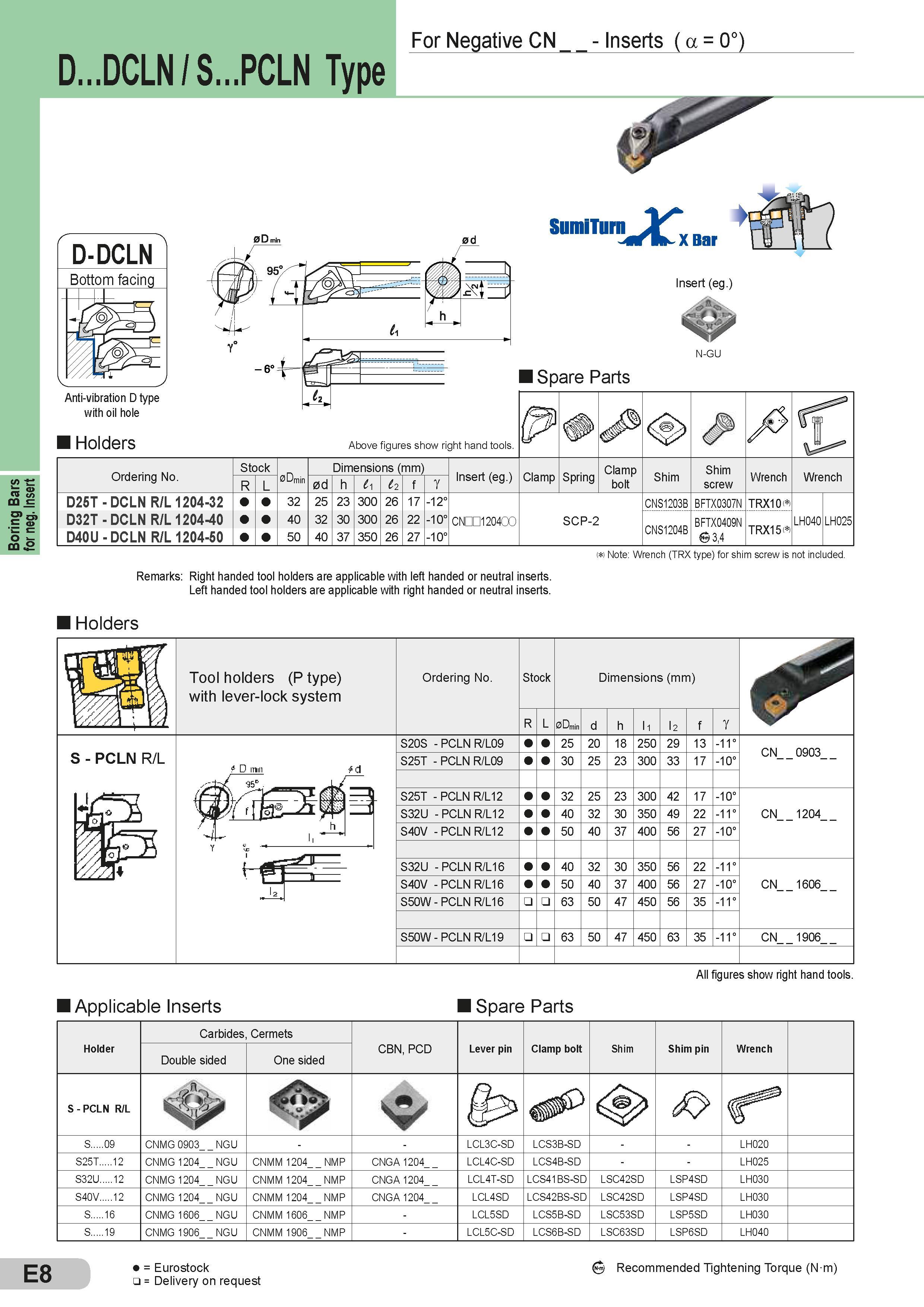

Boring Bars for neg. Insert D...DCLN / S...PCLN Type For Negative CN - Inserts ( a = 0°) Anti-vibration D type with oil hole Holders SumiTurn 'JC, XBar Insert (eg.) N-GU I Spare Parts Запасные части Sumitomo и комплектующие Above figures show right hand tools На эскизе сверху показано правое исполнение инструмента p A tf Clamp Spring Clamp bolt Shim screw Wrench Wrench CNS1203B BFTX0307N TRX10< i SCP-2 CNS1204B BFTX0409N 3,4 TRX15( LH040 LH025 Ordering No. Stock Dimensions (mm) Размеры указаны в мм R L 0Dmin 0d h 11 12 f Y 32 25 23 300 26 17 -12 40 32 30 300 26 22 -10 50 40 37 350 26 27 -10 Insert (eg.) D25T - DCLN R/L 1204-32 D32T - DCLN R/L 1204-40 D40U - DCLN R/L 1204-50 CNDD12040C ( ) Note: Wrench (TRX type) for shim screw is not included. Remarks: Right handed tool holders are applicable with left handed or neutral inserts. Left handed tool holders are applicable with right handed or neutral inserts. Holders Ordering No. Stock Dimensions (mm) Размеры указаны в мм R L 0Dmin d h l1 12 f Y S20S - PCLN R/L09 25 20 18 250 29 13 -11° S25T - PCLN R/L09 30 25 23 300 33 17 -10° S25T - PCLN R/L12 32 25 23 300 42 17 -10° S32U - PCLN R/L12 40 32 30 350 49 22 -11° S40V - PCLN R/L12 50 40 37 400 56 27 -10° S32U - PCLN R/L16 40 32 30 350 56 22 -11° S40V - PCLN R/L16 50 40 37 400 56 27 -10° S50W - PCLN R/L16 63 50 47 450 56 35 -11° S50W - PCLN R/L19 63 50 47 450 63 35 -11° Tool holders (P type) with lever-lock system S - PCLN R/L CN 0903 CN 1204 CN 1606 CN 1906 All figures show right hand tools. I Applicable Inserts Spare Parts Запасные части Sumitomo и комплектующие Carbides, Cermets Holder Double sided One sided CBN, PCD Lever pin Clamp bolt Shim pin Wrench S - PCLN R/L S 09 CNMG 0903 NGU - - LCL3C-SD LCS3B-SD - - LH020 S25T 12 CNMG 1204 NGU CNMM 1204 NMP CNGA 1204 LCL4C-SD LCS4B-SD - - LH025 S32U 12 CNMG 1204 NGU CNMM 1204 NMP CNGA 1204 LCL4T-SD LCS41BS-SD LSC42SD LSP4SD LH030 S40V 12 CNMG 1204 NGU CNMM 1204 NMP CNGA 1204 LCL4SD LCS42BS-SD LSC42SD LSP4SD LH030 S 16 CNMG 1606 NGU CNMM 1606 NMP - LCL5SD LCS5B-SD LSC53SD LSP5SD LH030 S 19 CNMG 1906 NGU CNMM 1906 NMP - LCL5C-SD LCS6B-SD LSC63SD LSP6SD LH040 E8 = Eurostock = Delivery on request Recommended Tightening Torque (N m)
