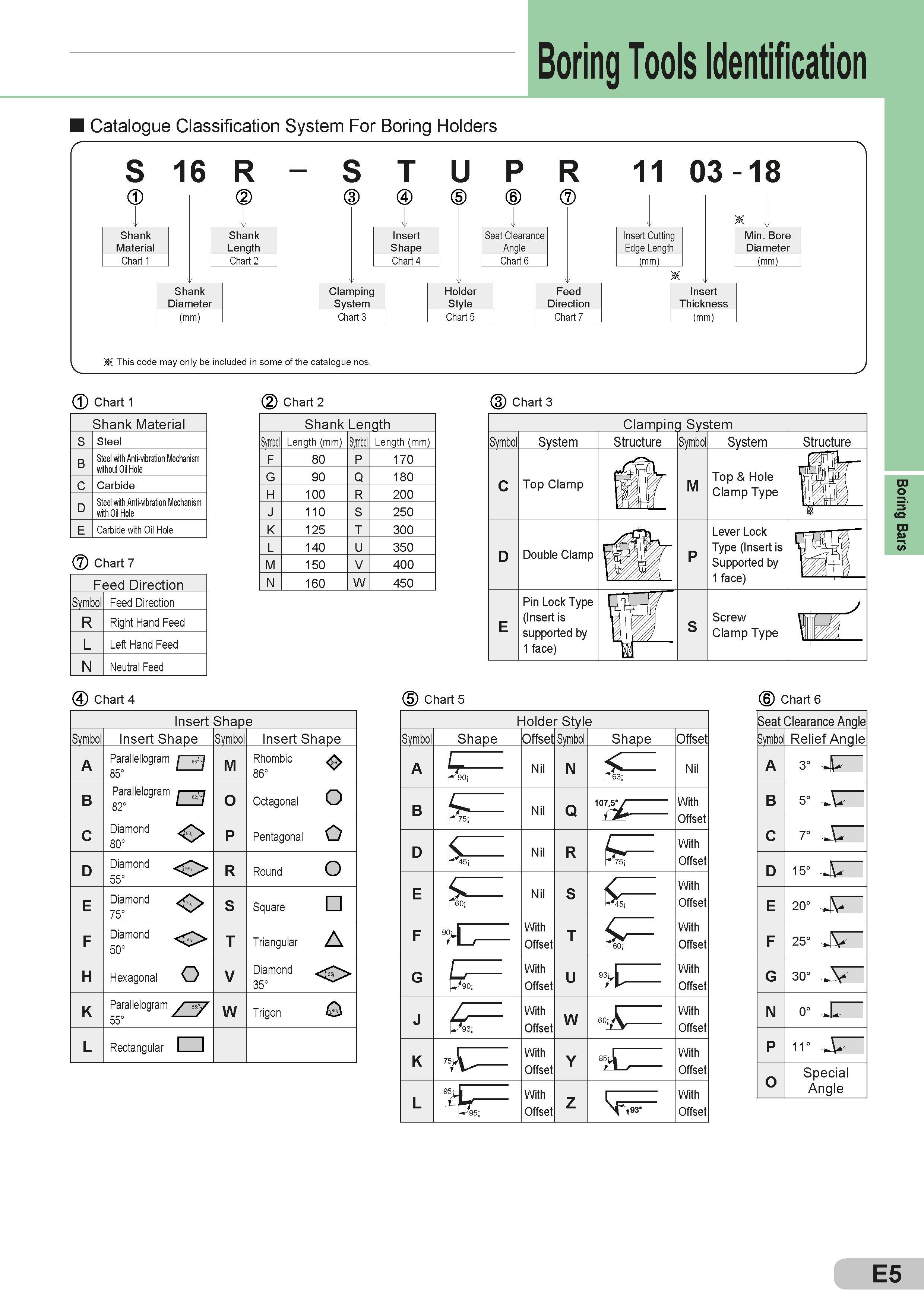

Boring Tools Identification Catalogue Classification System For Boring Holders (1) Chart 1 Chart 2 Chart 3 Shank Material S Steel B Steel with Anti-vibration Mechanism without Oil Hole C Carbide D Steel with Anti-vibration Mechanism with Oil Hole E Carbide with Oil Hole Chart 7 Feed Direction Symbol Feed Direction R Right Hand Feed L Left Hand Feed N Neutral Feed Shank Length Symbol Length (mm) Symbol Length (mm) F 80 P 170 G 90 Q 180 H 100 R 200 J 110 S 250 K 125 T 300 L 140 U 350 M 150 V 400 N 160 W 450 Chart 4 Insert Shape Symbol Insert Shape Symbol Insert Shape A Parallellogram 85° £3 M Rhombic 86° B Parallelogram 82° OJ O Octagonal o C Diamond 80° <-> P Pentagonal o D Diamond 55° < > R Round o E Diamond 75° < S Square F Diamond 50° <,> T Triangular A H Hexagonal O V Diamond 35° < > K Parallelogram 55° W Trigon & L Rectangular Clamping System Symbol System Structure Symbol System C Top Clamp D Double Clamp E Pin Lock Type (Insert is supported by 1 face) M P Top & Hole Clamp Type Lever Lock Type (Insert is Supported by 1 face) S Screw Clamp Type Structure Chart 6 Seat Clearance Angle Symbo Relief Anqle A 3° JW' B 5° C 7° D U 5° E k 0° 2 F 2 ° G 3 ° k\ N 4 0° P 11° JU O Special Angle E5 Boring Bars
