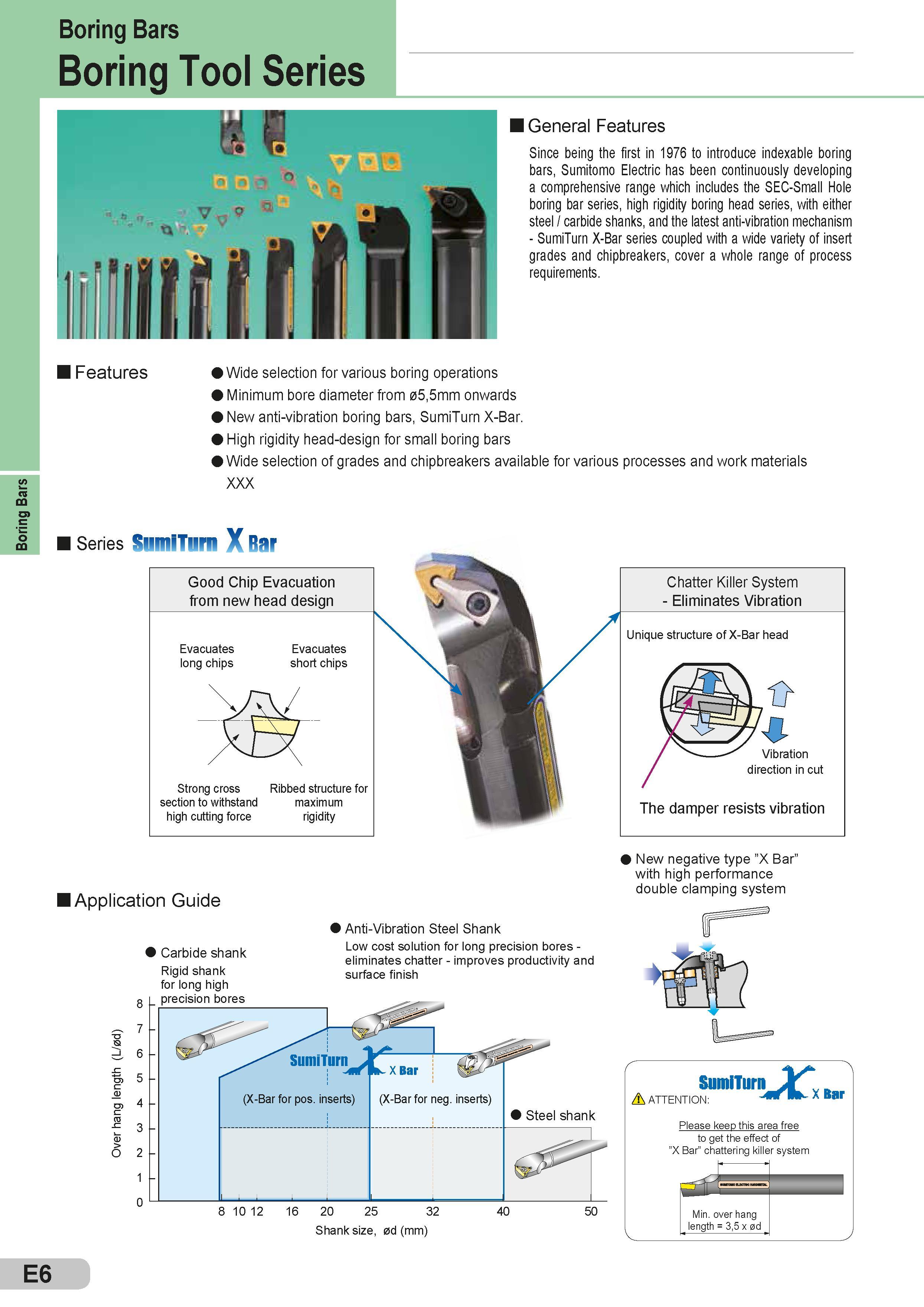

Boring Bars Boring Bars Boring Tool Series General Features Since being the first in 1976 to introduce indexable boring bars, Sumitomo Electric has been continuously developing a comprehensive range which includes the SEC-Small Hole boring bar series, high rigidity boring head series, with either steel / carbide shanks, and the latest anti-vibration mechanism - SumiTurn X-Bar series coupled with a wide variety of insert grades and chipbreakers, cover a whole range of process requirements. Features Wide selection for various boring operations Minimum bore diameter from 05,5mm onwards New anti-vibration boring bars, SumiTurn X-Bar. High rigidity head-design for small boring bars Wide selection of grades and chipbreakers available for various processes and work materials XXX Series ° iT V Good Chip Evacuation from new head design Evacuates Evacuates long chips short chips V Strong cross Ribbed structure for section to withstand maximum high cutting force rigidity I Application Guide New negative type ”X Bar” with high performance double clamping system Carbide shank Rigid shank for long high 8 - precision bores Anti-Vibration Steel Shank Low cost solution for long precision bores -eliminates chatter - improves productivity and surface finish > O SumiTurn Jj (X-Bar for pos. inserts) XBar (X-Bar for neg. inserts) SumiTurn A ATTENTION: JtT X Bar Steel shank Please keep this area free to get the effect of ”X Bar” chattering killer system 8 10 12 16 20 25 32 Shank size, 0d (mm) 40 50 Min. over hang length = 3,5 x 0d 7 6 5 4 3 2 0 E6
