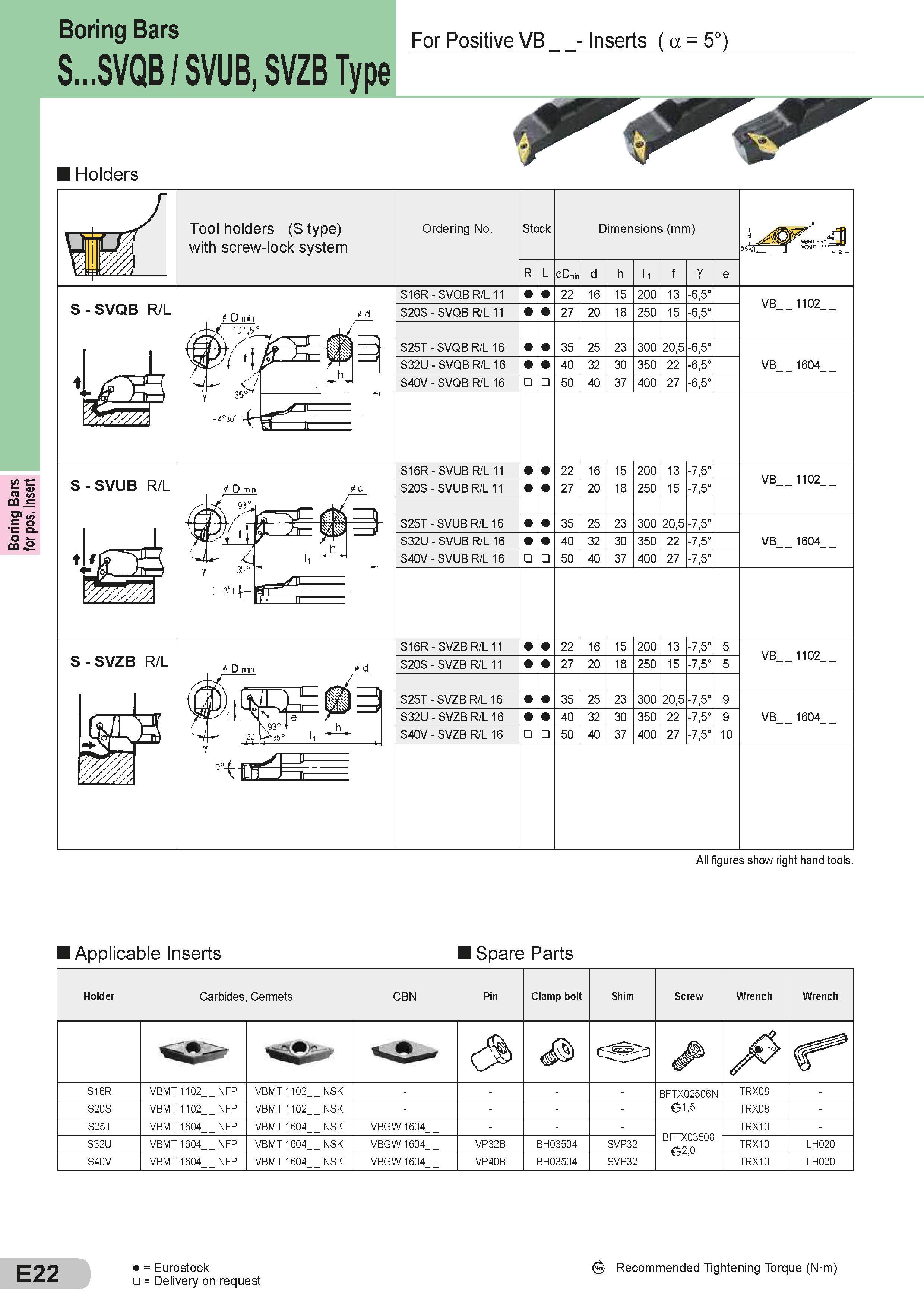

Boring Bars for pos. Insert Boring Bars por p0SjtjVe VB Inserts ( a = 5°) S...SVQB / SVUB, SVZB Type Holders Tool holders (S type) with screw-lock system Ordering No. Stock Dimensions (mm) Размеры указаны в мм R L 0Dmin d h l1 f Y e S16R - SVQB R/L 11 22 16 15 200 13 -6,5° S20S - SVQB R/L 11 27 20 18 250 15 -6,5° S25T - SVQB R/L 16 35 25 23 300 20,5 -6,5° S32U - SVQB R/L 16 40 32 30 350 22 -6,5° S40V - SVQB R/L 16 50 40 37 400 27 -6,5° S16R - SVUB R/L 11 22 16 15 200 13 -7,5° S20S - SVUB R/L 11 27 20 18 250 15 -7,5° S25T - SVUB R/L 16 35 25 23 300 20,5 -7,5° S32U - SVUB R/L 16 40 32 30 350 22 -7,5° S40V - SVUB R/L 16 50 40 37 400 27 -7,5° S16R - SVZB R/L 11 22 16 15 200 13 -7,5° 5 S20S - SVZB R/L 11 27 20 18 250 15 -7,5° 5 S25T - SVZB R/L 16 35 25 23 300 20,5 -7,5° 9 S32U - SVZB R/L 16 40 32 30 350 22 -7,5° 9 S40V - SVZB R/L 16 50 40 37 400 27 -7,5° 10 S - SVQB R/L VB 1102 VB 1604 S - SVUB R/L VB 1102 VB 1604 S - SVZB R/L VB 1102 VB 1604 All figures show right hand tools. Applicable Inserts Spare Parts Запасные части Sumitomo и комплектующие Holder Carbides, Cermets CBN Pin Clamp bolt Shim Screw Wrench Wrench S16R VBMT 1102 NFP VBMT 1102 NSK - - - - BFTX02506N TX1,5 TRX08 - S20S VBMT 1102 NFP VBMT 1102 NSK - - - - TRX08 - S25T VBMT 1604 NFP VBMT 1604 NSK VBGW 1604 - - - BFTX03508 2,0 TRX10 - S32U VBMT 1604 NFP VBMT 1604 NSK VBGW 1604 VP32B BH03504 SVP32 TRX10 LH020 S40V VBMT 1604 NFP VBMT 1604 NSK VBGW 1604 VP40B BH03504 SVP32 TRX10 LH020 E22 = Eurostock = Delivery on request Recommended Tightening Torque (N m)
