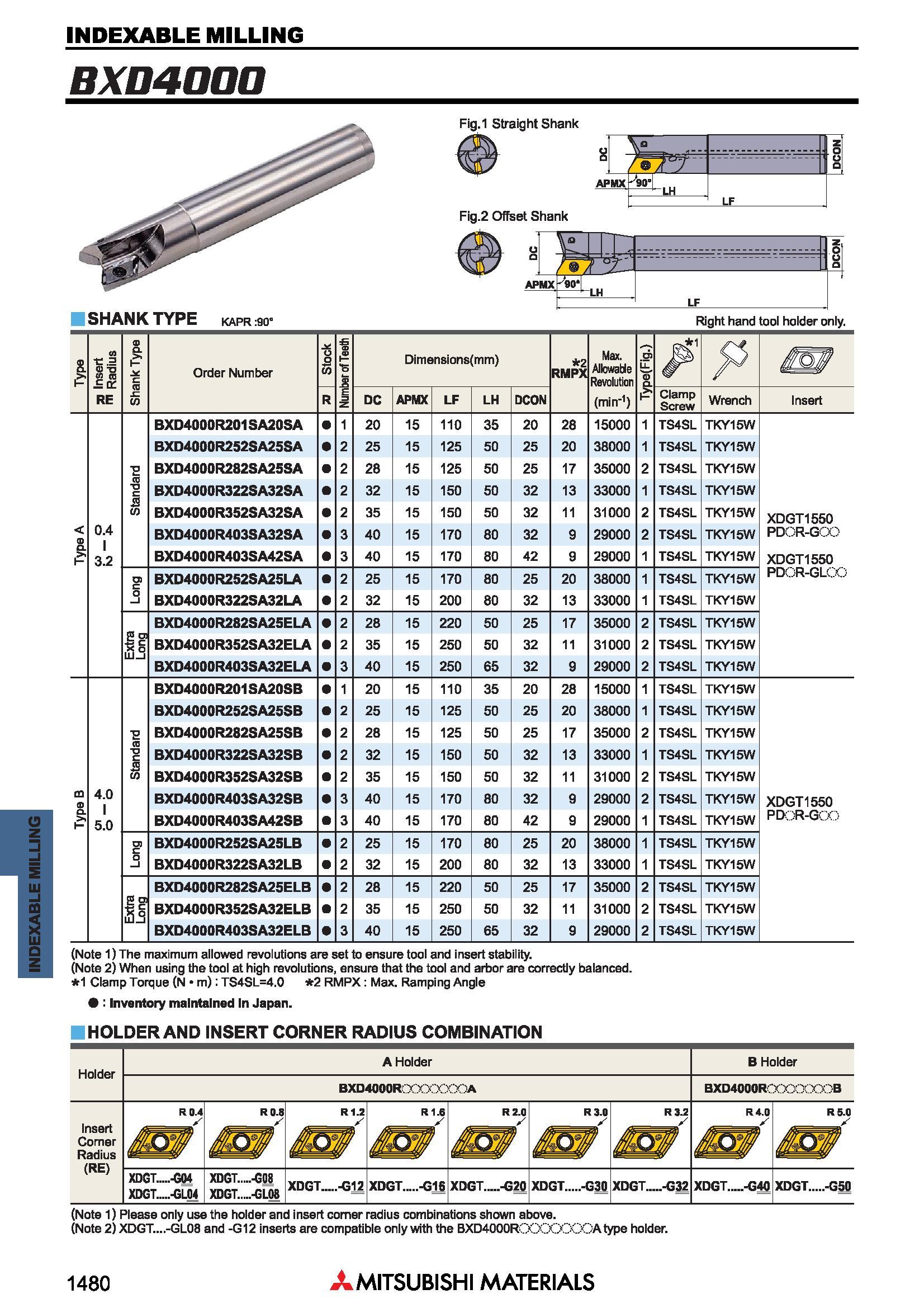

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ BXD4000 Fig.1 Straight Shank LF Fig.2 Offset Shank DC , z n hi o a AP MX -'W LF SHANK TYPE KAPR :90° Right hand tool holder only. Type ut C.3 P £ al RE Shank Type Обозначение Order Number Stock £ s s Dimensions(mm) 2 RMPX Max. Allowable Revolution Type(Fig.) P ifiF R E 3 z DC APMX LF LH CON (min-1) Clamp Screw Wrench Insert BXD4000R201SA20SA 1 20 15 110 35 20 28 15000 1 TS4SL TKY15W BXD4000R252SA25SA 2 25 15 125 50 25 20 38000 1 TS4SL TKY15W 2 BXD4000R282SA25SA 2 28 15 125 50 25 17 35000 2 TS4SL TKY15W TD c £ (0 BXD4000R322SA32SA 2 32 15 150 50 32 13 33000 1 TS4SL TKY15W BXD4000R352SA32SA 2 35 15 150 50 32 11 31000 2 TS4SL TKY15W XDGT1550 < o 0.4 BXD4000R403SA32SA 3 40 15 170 80 32 9 29000 2 TS4SL TKY15W PDOR-GOO £ 3.2 BXD4000R403SA42SA 3 40 15 170 80 42 9 29000 1 TS4SL TKY15W XDGT1550 03 c BXD4000R252SA25LA 2 25 15 170 80 25 20 38000 1 TS4SL TKY15W PDOR-GLCO o l BXD4000R322SA32LA 2 32 15 200 80 32 13 33000 1 TS4SL TKY15W gpl "52 o BXD4000R282SA25ELA 2 28 15 220 50 25 17 35000 2 TS4SL TKY15W BXD4000R352SA32ELA 2 35 15 250 50 32 11 31000 2 TS4SL TKY15W BXD4000R403SA32ELA 3 40 15 250 65 32 9 29000 2 TS4SL TKY15W BXD4000R201SA20SB 1 20 15 110 35 20 28 15000 1 TS4SL TKY15W BXD4000R252SA25SB 2 25 15 125 50 25 20 38000 1 TS4SL TKY15W Standard BXD4000R282SA25SB 2 28 15 125 50 25 17 35000 2 TS4SL TKY15W BXD4000R322SA32SB 2 32 15 150 50 32 13 33000 1 TS4SL TKY15W BXD4000R352SA32SB 2 35 15 150 50 32 11 31000 2 TS4SL TKY15W m m 4.0 BXD4000R403SA32SB 3 40 15 170 80 32 9 29000 2 TS4SL TKY15W XDGT1550 >, i- 5.0 BXD4000R403S A42S B 3 40 15 170 80 42 9 29000 1 TS4SL TKY15W PDOR-GOO O) BXD4000R252SA25LB 2 25 15 170 80 25 20 38000 1 TS4SL TKY15W o BXD4000R322SA32LB 2 32 15 200 80 32 13 33000 1 TS4SL TKY15W Extra Long BXD4000R282SA25ELB 2 28 15 220 50 25 17 35000 2 TS4SL TKY15W BXD4000R352SA32ELB 2 35 15 250 50 32 11 31000 2 TS4SL TKY15W BXD4000R403SA32ELB 3 40 15 250 65 32 9 29000 2 TS4SL TKY15W (Note 1) The maximum allowed revolutions are set to ensure tool and insert stability. (Note 2) When using the tool at high revolutions, ensure that the tool and arbor are correctly balanced. 1 Clamp Torque (N m): TS4SL=4.0 2 RMPX: Max. Ramping Angle Inventory maintained In Japan. HOLDER AND INSERT CORNER RADIUS COMBINATION Holder A Holder B Holder HXMQOOROOOOOOQA BXD4MOR B Insert Comer Radius (RE) R 0.4 y R0.8 / R 1.2 R 1.6 R 2.0 / R3.0 S R 3.2 R4.0 y R 5.0 MOW JMSW XDGT .-G04 XDGT .-GL04 XDGT .-G08 XDGT .-GL08 XDGT -G12 XDGT -G16 XDGT -G20 XDGT -G30 XDGT -G32 XDGT -G40 XDGT -G50 (Note 1) Please only use the holder and insert comer radius combinations shown above. (Note 2) XDGT -GL08 and -G12 inserts are compatible only with the BXD4000RCOCOCOOAtype holder. 1480 Mitsubishi Materials
