AQX Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING

AQX Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING

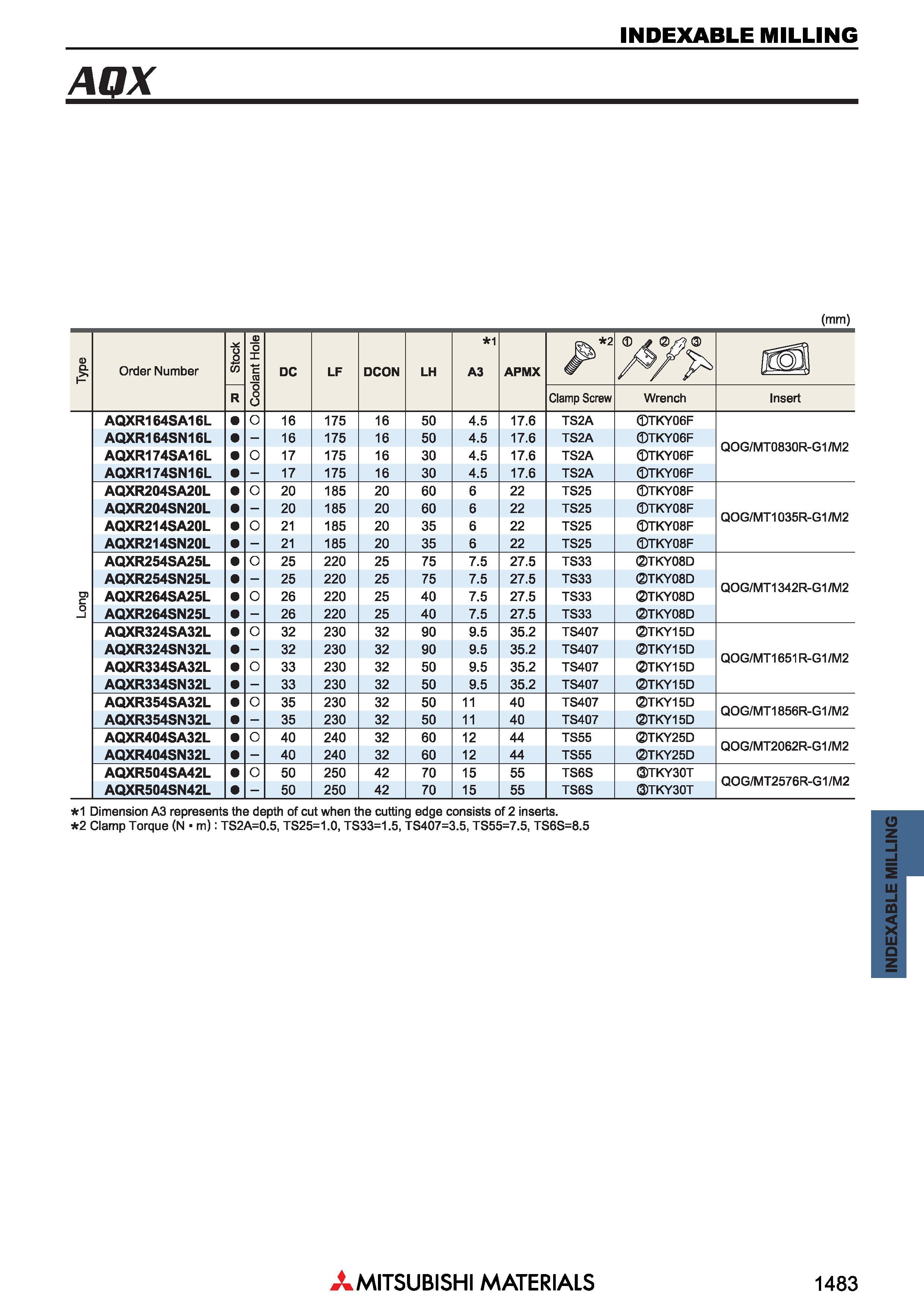

AQX Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ (mm) Type Обозначение Order Number Stock CD O X c ra DC LF CON LH 1 A3 APMX Af> ms R u o O Clamp Screw Wrench Insert AQXR164SA16L O 16 175 16 50 4.5 17.6 TS2A TKY06F AQXR164SN16L - 16 175 16 50 4.5 17.6 TS2A TKY06F QOG/MT0830R-G1/M2 AQXR174SA16L o 17 175 16 30 4.5 17.6 TS2A TKY06F AQXR174SN16L - 17 175 16 30 4.5 17.6 TS2A TKY06F AQXR204SA20L o 20 185 20 60 6 22 TS25 TKY08F AQXR204SN20L - 20 185 20 60 6 22 TS25 TKY08F QOG/MT1035R-G1 /M2 AQXR214SA20L o 21 185 20 35 6 22 TS25 TKY08F AQXR214SN20L - 21 185 20 35 6 22 TS25 TKY08F AQXR254SA25L o 25 220 25 75 7.5 27.5 TS33 0TKYO8D AQXR254SN25L - 25 220 25 75 7.5 27.5 TS33 0TKYO8D QOG/MT1342R-G1 /M2 Ol r AQXR264SA25L o 26 220 25 40 7.5 27.5 TS33 (2TKY08D o i AQXR264SN25L - 26 220 25 40 7.5 27.5 TS33 0TKYO8D AQXR324SA32L o 32 230 32 90 9.5 35.2 TS407 0TKY15D AQXR324SN32L - 32 230 32 90 9.5 35.2 TS407 0TKY15D QOG/MT1651R-G1/M2 AQXR334SA32L o 33 230 32 50 9.5 35.2 TS407 (2TKY15D AQXR334SN32L - 33 230 32 50 9.5 35.2 TS407 0TKY15D AQXR354SA32L o 35 230 32 50 11 40 TS407 0TKY15D QOG/MT1856R-G1 /M2 AQXR354SN32L - 35 230 32 50 11 40 TS407 0TKY15D AQXR404SA32L o 40 240 32 60 12 44 TS55 0TKY25D QOG/MT2062R-G1/M2 AQXR404SN32L - 40 240 32 60 12 44 TS55 0TKY25D AQXR504SA42L o 50 250 42 70 15 55 TS6S TKY30T QOG/MT2576R-G1/M2 AQXR504SN42L - 50 250 42 70 15 55 TS6S TKY30T 1 Dimension A3 represents the depth of cut when the cutting edge consists of 2 inserts. 2 Clamp Torque (N m): TS2A=0.5, TS25=1.0, TS33=1.5, TS407=3.5, TS55=7.5, TS6S=8.5 Mitsubishi Materials 1483 INDEXABLE MILLING
