AQX Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING

AQX Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING

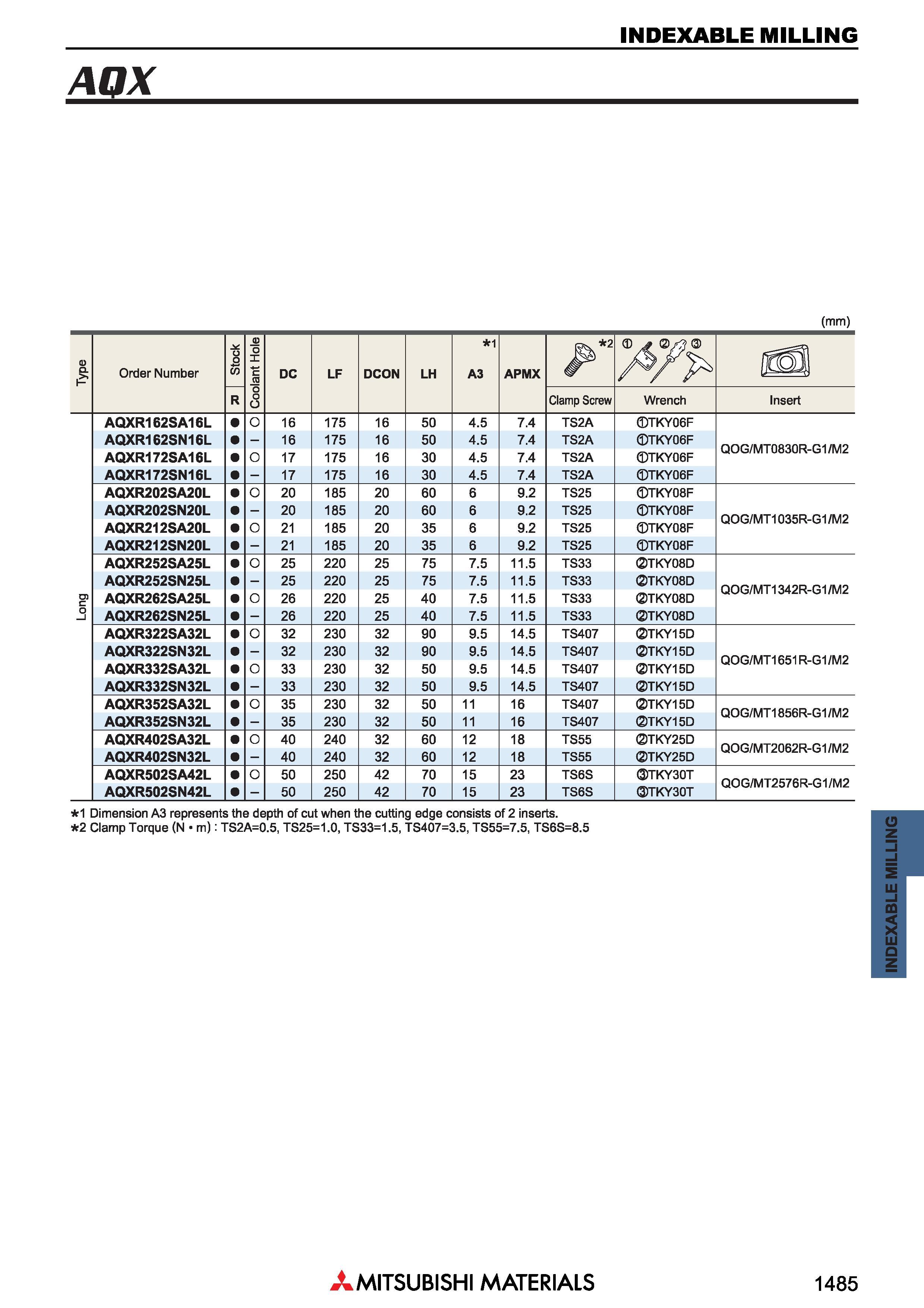

AQX Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ (mm) Type Обозначение Order Number Stock CD O X c (0 DC LF DCON LH 1 A3 APMX /3 (OSS R O Clamp Screw Wrench Insert AQXR162SA16L O 16 175 16 50 4.5 7.4 TS2A TKY06F AQXR162SN16L - 16 175 16 50 4.5 7.4 TS2A TKY06F QOG/MT0830R-G1/M2 AQXR172SA16L o 17 175 16 30 4.5 7.4 TS2A TKY06F AQXR172SN16L - 17 175 16 30 4.5 7.4 TS2A TKY06F AQXR202SA20L o 20 185 20 60 6 9.2 TS25 TKY08F AQXR202SN20L - 20 185 20 60 6 9.2 TS25 TKY08F QOG/MT1035R-G1 /M2 AQXR212SA20L o 21 185 20 35 6 9.2 TS25 TKY08F AQXR212SN20L - 21 185 20 35 6 9.2 TS25 TKY08F AQXR252SA25L o 25 220 25 75 7.5 11.5 TS33 0TKYO8D AQXR252SN25L - 25 220 25 75 7.5 11.5 TS33 (2TKY08D QOG/MT1342R-G1 /M2 O) c AQXR262SA25L o 26 220 25 40 7.5 11.5 TS33 0TKYO8D o i AQXR262SN25L - 26 220 25 40 7.5 11.5 TS33 0TKYO8D AQXR322SA32L o 32 230 32 90 9.5 14.5 TS407 0TKY15D AQXR322SN32L - 32 230 32 90 9.5 14.5 TS407 0TKY15D QOG/MT 1651R-G1 /M2 AQXR332SA32L o 33 230 32 50 9.5 14.5 TS407 0TKY15D AQXR332SN32L - 33 230 32 50 9.5 14.5 TS407 0TKY15D AQXR352SA32L o 35 230 32 50 11 16 TS407 0TKY15D QOG/MT1856R-G1 /M2 AQXR352SN32L - 35 230 32 50 11 16 TS407 0TKY15D AQXR402SA32L o 40 240 32 60 12 18 TS55 0TKY25D QOG/MT2062R-G1/M2 AQXR402SN32L - 40 240 32 60 12 18 TS55 0TKY25D AQXR502SA42L o 50 250 42 70 15 23 TS6S TKY30T QOG/MT2576R-G1/M2 AQXR502SN42L - 50 250 42 70 15 23 TS6S TKY30T 1 Dimension A3 represents the depth of cut when the cutting edge consists of 2 inserts. 2 Clamp Torque (N m): TS2A=0.5, TS25=1.0, TS33=1.5, TS407=3.5, TS55=7.5, TS6S=8.5 Mitsubishi Materials 1485 INDEXABLE MILLING
