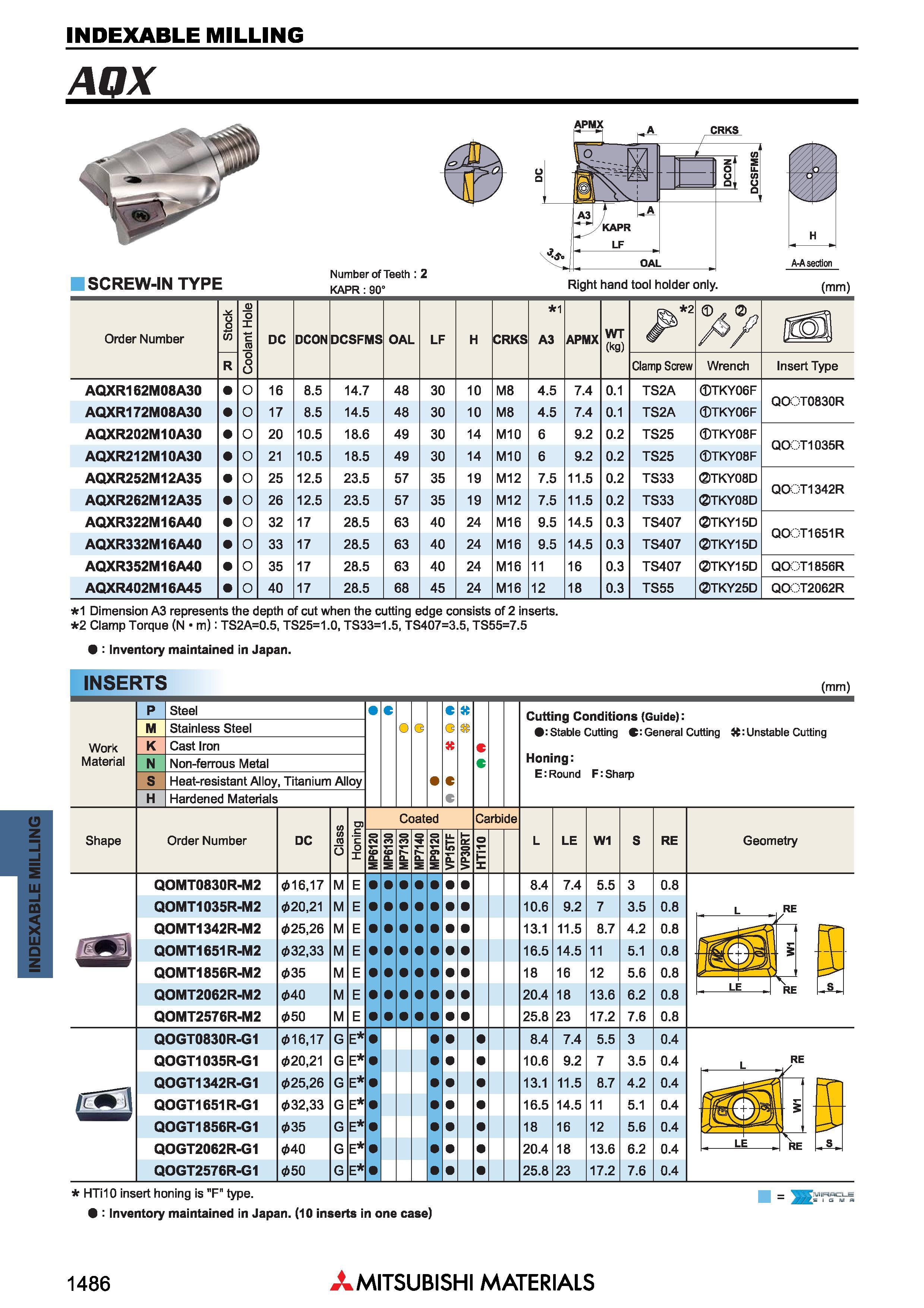

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ AQX APMX CRKS SCREW-IN TYPE Количество режущих зубьев Number of Teeth 2 KAPR: 90° A-A section Right hand tool holder only. (mm) Обозначение Order Number u o W Coolant Hole DC DCON DCSFMS OAL LF H CRKS 1 A3 APMX WT (kg) ufil R Clamp Screw Wrench Insert Type AQXR162M08A30 o 16 8.5 14.7 48 30 10 M8 4.5 7.4 0.1 TS2A 0TKYO6F QOGT0830R AQXR172M08A30 o 17 8.5 14.5 48 30 10 M8 4.5 7.4 0.1 TS2A TKY06F AQXR202M10A30 o 20 10.5 18.6 49 30 14 M10 6 9.2 0.2 TS25 0TKYO8F QOOT1035R AQXR212M10A30 o 21 10.5 18.5 49 30 14 M10 6 9.2 0.2 TS25 TKY08F AQXR252M12A35 o 25 12.5 23.5 57 35 19 M12 7.5 11.5 0.2 TS33 OTKY08D QOOT1342R AQXR262M12A35 o 26 12.5 23.5 57 35 19 M12 7.5 11.5 0.2 TS33 0TKYO8D AQXR322M16A40 o 32 17 28.5 63 40 24 M16 9.5 14.5 0.3 TS407 0TKY15D QOOT1651R AQXR332M16A40 o 33 17 28.5 63 40 24 M16 9.5 14.5 0.3 TS407 0TKY15D AQXR352M16A40 o 35 17 28.5 63 40 24 M16 11 16 0.3 TS407 0TKY15D QOOT1856R AQXR402M16A45 o 40 17 28.5 68 45 24 M16 12 18 0.3 TS55 0TKY25D QOC'T2062R 1 Dimension A3 represents the depth of cut when the cutting edge consists of 2 Inserts. 2 Clamp Torque (N m): TS2A=0.5, TS25=1.0, TS33=1.5, TS407=3.5, TS55=7.5 Inventory maintained in Japan. INSERTS (mm) Обрабатываемые материалы Work Material Steel Stainless Steel Cast Iron Non-ferrous Metal Heat-resistant Alloy, Titanium Alloy Hardened Materials O G Cutting Conditions (Guide): 0:Stable Cutting C:General Cutting X:Unstable Cutting Honing: E: Round F: Sharp Shape Обозначение Order Number C Coated Carbide LE W1 RE Geometry QOMT0830R-M2 QOMT1035R-M2 QOMT1342R-M2 QOMT1651R-M2 QOMT1856R-M2 QOMT2062R-M2 QOMT2576R-M2 016,17 020,21 025,26 032,33 035 040 050 8.4 10.6 13.1 16.5 18 20.4 25.8 5.5 7 8.7 11 12 13.6 17.2 3 3.5 4.2 5.1 5.6 6.2 7.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 jlofti- s LE V RE QOGT0830R-G1 QOGT1035R-G1 QOGT1342R-G1 QOGT1651R-G1 QOGT1856R-G1 QOGT2062R-G1 QOGT2576R-G1 016,17 020,21 025,26 032,33 035 040 050 8.4 10.6 13.1 16.5 18 20.4 25.8 5.5 7 8.7 11 12 13.6 17.2 3 3.5 4.2 5.1 5.6 6.2 7.6 0.4 0.4 0.4 0.4 0.4 0.4 0.4 RE 7rT W1 Li RE HTH0 insert honing is "F" type. Inventory maintained in Japan. (10 inserts in one case) 1486 Mitsubishi Materials
