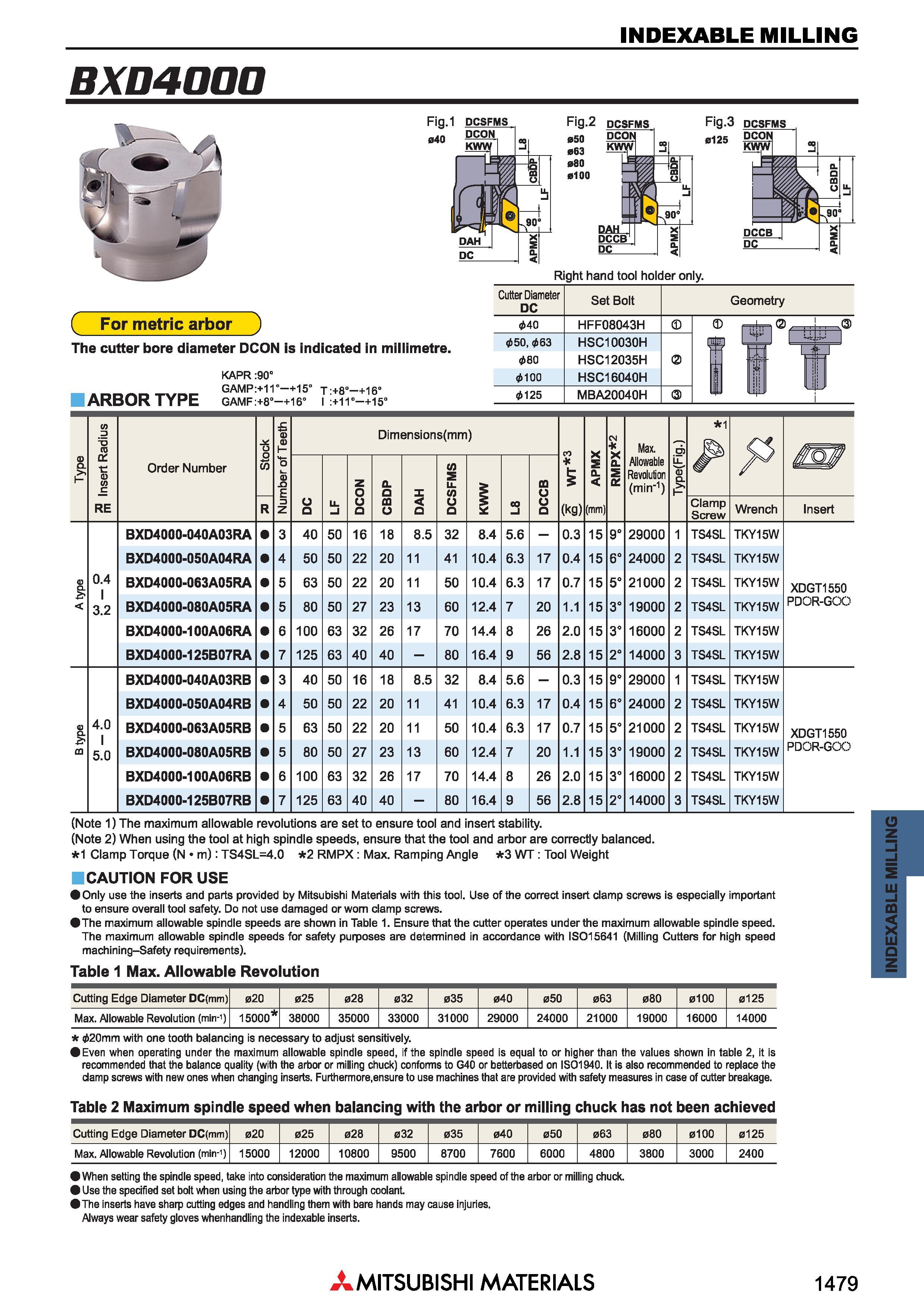

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ BX04000 040 DCON KWW ttj -1 77, p. 03 O LL -1 -J90 DAH X y DC 0. Fig.2 dcsfms 050 Fig.3 dcsfms 0125 Right hand tool holder only. ( For metric arbor ) The cutter bore diameter DCON is indicated in millimetre. Cutter Diameter DC 040 ARBOR TYPE KAPR :90° GAMP:+11” +15° T +8 +i6° GAMF:+8° +16° I :+11°-+15° 050, 063 080 0100 0125 Set Bolt HFF08043H HSC10030H HSC12035H HSC16040H MBA20040H Geometry ffl 0 ffi nri i TT+m HE £ 0) Q. £ fjj Insert Radius 1 Обозначение Order Number Stock Количество режущих зубьев Number of Teeth Dimensions(mm) CO £ (kg) X s 0. < (mm) CM X CL 2 o: Max. Allowable Revolution (min"1) Type(Fig.) 1 >5 at o Q u. i DCON CBDP DAH DCSFMS KWW co l DCCB R Clamp Screw Wrench Insert BXD4000-040A03RA 3 40 50 16 18 8.5 32 8.4 5.6 - 0.3 15 9° 29000 1 TS4SL TKY15W BXD4000-050A04RA 4 50 50 22 20 11 41 10.4 6.3 17 0.4 15 6° 24000 2 TS4SL TKY15W <13 CL 0.4 BXD4000-063A05RA 5 63 50 22 20 11 50 10.4 6.3 17 0.7 15 5° 21000 2 TS4SL TKY15W XDGT1550 < 3.2 BXD4000-080A05RA 5 80 50 27 23 13 60 12.4 7 20 1.1 15 3° 19000 2 TS4SL TKY15W PDOR-GOO BXD4000-100A06RA 6 100 63 32 26 17 70 14.4 8 26 2.0 15 3° 16000 2 TS4SL TKY15W BXD4000-125B07RA 7 125 63 40 40 - 80 16.4 9 56 2.8 15 2° 14000 3 TS4SL TKY15W BXD4000-040A03RB 3 40 50 16 18 8.5 32 8.4 5.6 - 0.3 15 9° 29000 1 TS4SL TKY15W BXD4000-050A04RB 4 50 50 22 20 11 41 10.4 6.3 17 0.4 15 6° 24000 2 TS4SL TKY15W
