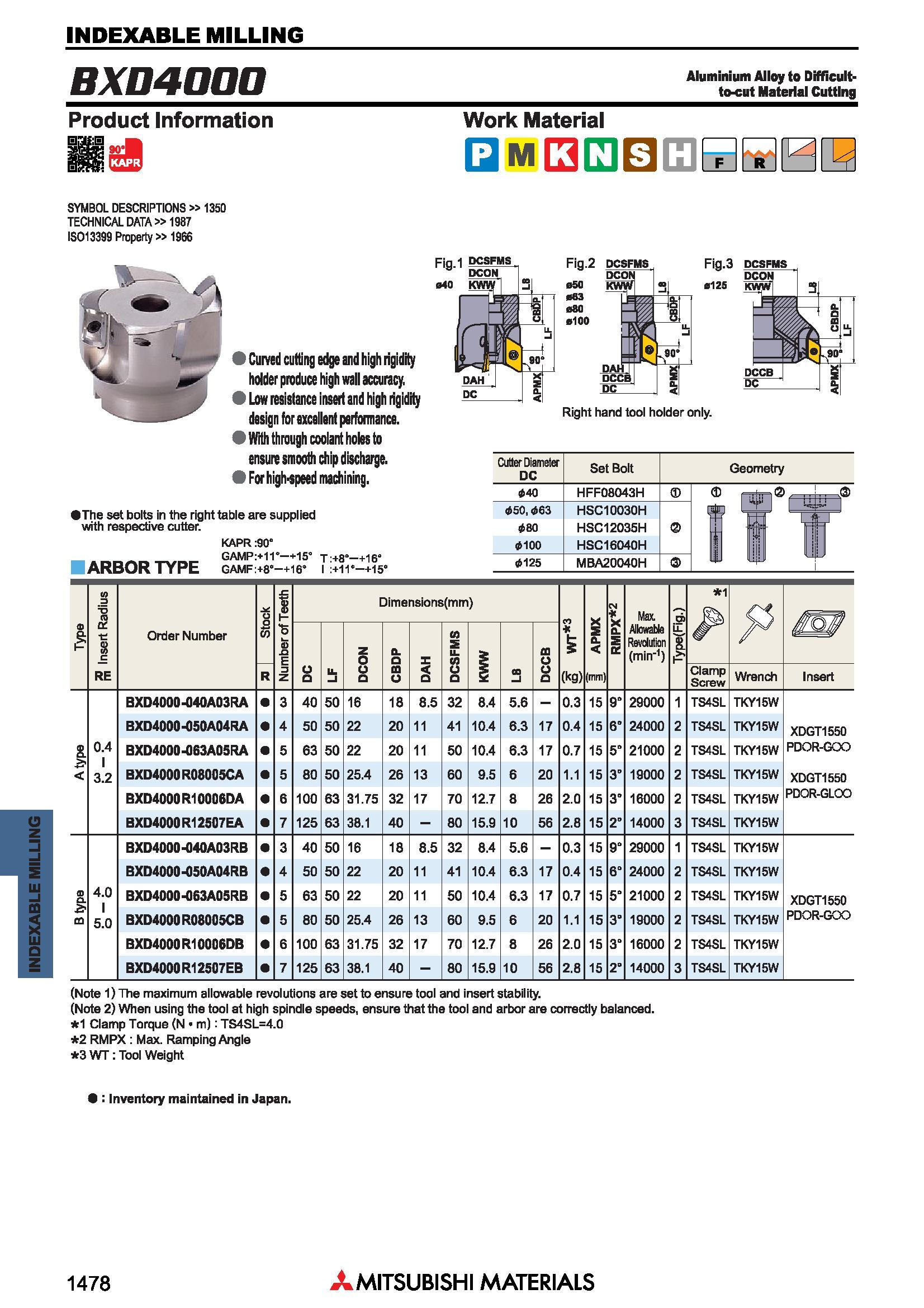

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ 8X04000 Aluminium Alloy to Difficult-to-cut Material Cutting Product Information Обрабатываемые материалы Work Material SYMBOL DESCRIPTIONS 1350 TECHNICAL DATA 1987 ISO 13399 Property 1966 Fjn 1 DCSFMS DCON 040 > Curved cutting edge and high rigidity holder produce high wall accuracy. Low resistance insert and high rigidity design for excellent performance. 'With through coolant holes to ensure smooth chip discharge. For high-speed machining. The set bolts in the right table are supplied with respective cutter. KAPR :90" GAMP:+11 +15° T +a‘ -+16'> ARBOR TYPE GAMF:+8 +16 I :+11 -+15 DCSFMS Dcor OO J "777/ 8 11. -1 1 jr DA) DCC APMX DC Fig.3 dcsfms DCQI 125 KWW Right hand tool holder only. Cutter Diameter DC 40 50, 63 80 100 125 Set Bolt HFF08043H HSC10030H HSC1203SH HSC 16040H MBA20040H Geometry cjn i I Type jin insert Radius Обозначение Order Number Stock Количество режущих зубьев Number of Teeth Dimensions(mm) OO (kg) Q. < (mm) CM 2 Max. Allowable Revolution (min-1) Type(Fig.) 1 P m o Q u. i DCON CBDP DAH DCSFMS KWW to i DCCB R Clamp Screw Wrench Insert BXD4000-040A03RA 3 40 50 16 18 8.5 32 8.4 5.6 - 0.3 15 9“ 29000 1 TS4SL TKY15W BXD4000-050A04RA 4 50 50 22 20 11 41 10.4 6.3 17 0.4 15 6° 24000 2 TS4SL TKY15W XDGT1550 & 0.4 BXD4000-063A05RA 5 63 50 22 20 11 50 10.4 6.3 17 0.7 15 5“ 21000 2 TS4SL TKY15W PDOR-GOO < 3.2 BXD4000 R08005CA 5 80 50 25.4 26 13 60 9.5 6 20 1.1 15 3° 19000 2 TS4SL TKY15W XDGT1550 BXD4000R10006DA 6 100 63 31.75 32 17 70 12.7 8 26 2.0 15 3° 16000 2 TS4SL TKY15W PDOR-GLOO BXD4000 R12507EA 7 125 63 38.1 40 - 80 15.9 10 56 2.8 15 2° 14000 3 TS4SL TKY15W BXD4000-040A03RB 3 40 50 16 18 8.5 32 8.4 5.6 - 0.3 15 9“ 29000 1 TS4SL TKY15W BXD4000-050A04RB 4 50 50 22 20 11 41 10.4 6.3 17 0.4 15 6° 24000 2 TS4SL TKY15W CD CL 4.0 BXD4000-063A05RB 5 63 50 22 20 11 50 10.4 6.3 17 0.7 15 5“ 21000 2 TS4SL TKY15W XDGT1550 CQ 5.0 BXD4000 R08005CB 5 80 50 25.4 26 13 60 9.5 6 20 1.1 15 3° 19000 2 TS4SL TKY15W PDOR-GOO BXD4000 R10006DB 6 100 63 31.75 32 17 70 12.7 8 26 2.0 15 3° 16000 2 TS4SL TKY15W BXD4000 R12507EB 7 125 63 38.1 40 - 80 15.9 10 56 2.8 15 2° 14000 3 TS4SL TKY15W (Note 1) The maximum allowable revolutions are set to ensure tool and insert stability. (Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. 1 Clamp Torque (N m): TS4SL=4.0 2 RMPX: Max. Ramping Angle 3 WT: Tool Weight Inventory maintained in Japan. 1478 Mitsubishi Materials
