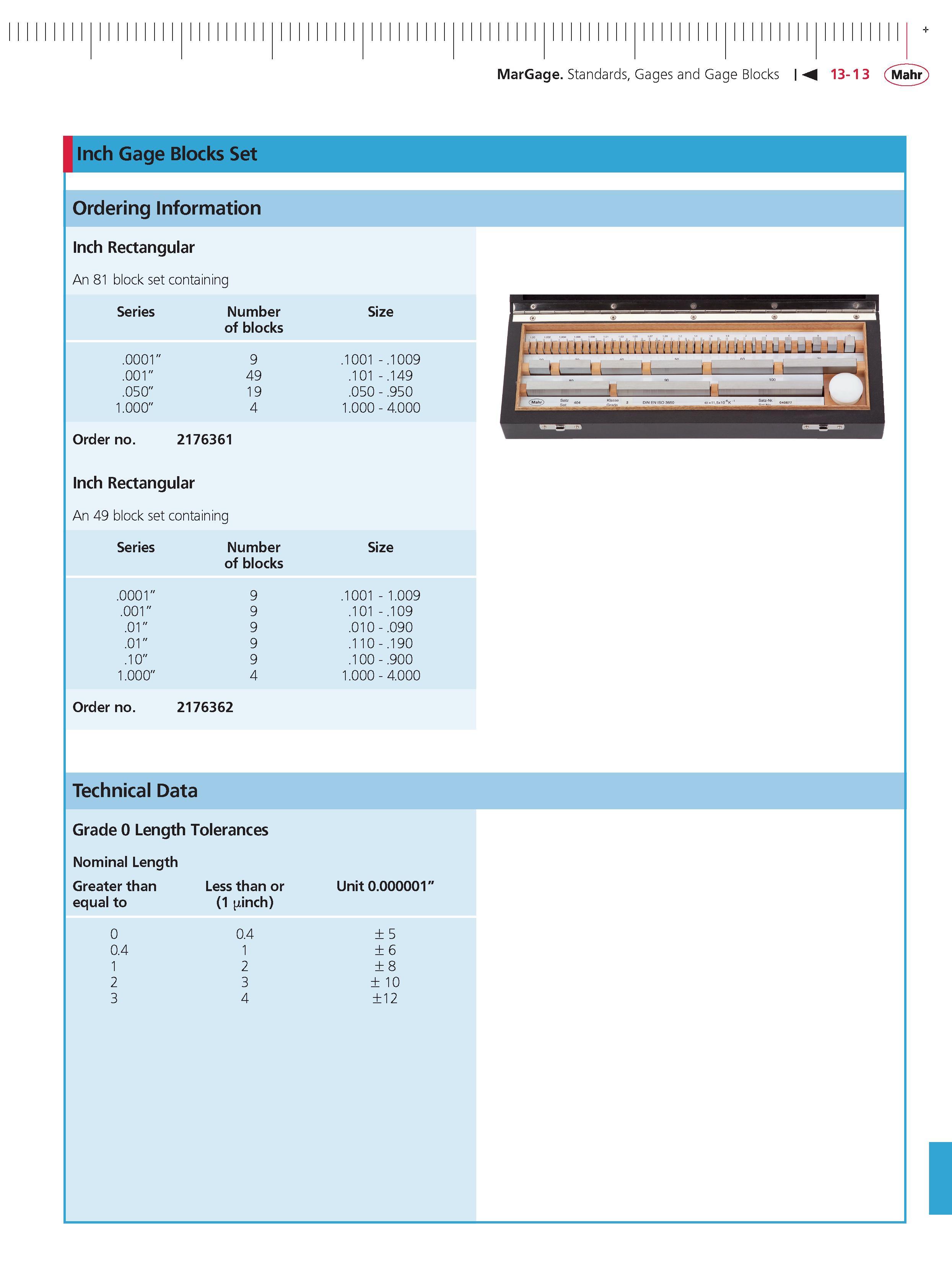

MarGage Standards Gages and Gage Blocks M 13-13 Mahr Inch Gage Blocks Set Ordering Information Inch Rectangular An 81 block set containing series .0001" .001" .050" 1.000" Number of blocks 9 49 19 4 size .1001 - .1009 .101 - .149 .050 - .950 1.000 - 4.000 order no. 2176361 Inch Rectangular An 49 block set containing series .0001" .001" .01" .01" .10" 1.000" Number of blocks 9 9 9 9 9 4 size .1001 - 1.009 .101 -.109 .010-.090 .110-.190 .100-.900 1.000-4.000 order no. 2176362 Technical Data Grade 0 Length tolerances nominal length Greater than equal to 0 0.4 1 2 3 less than or (1 inch) 0.4 1 2 3 4 Unit 0.000001' 5 6 8 10 12
