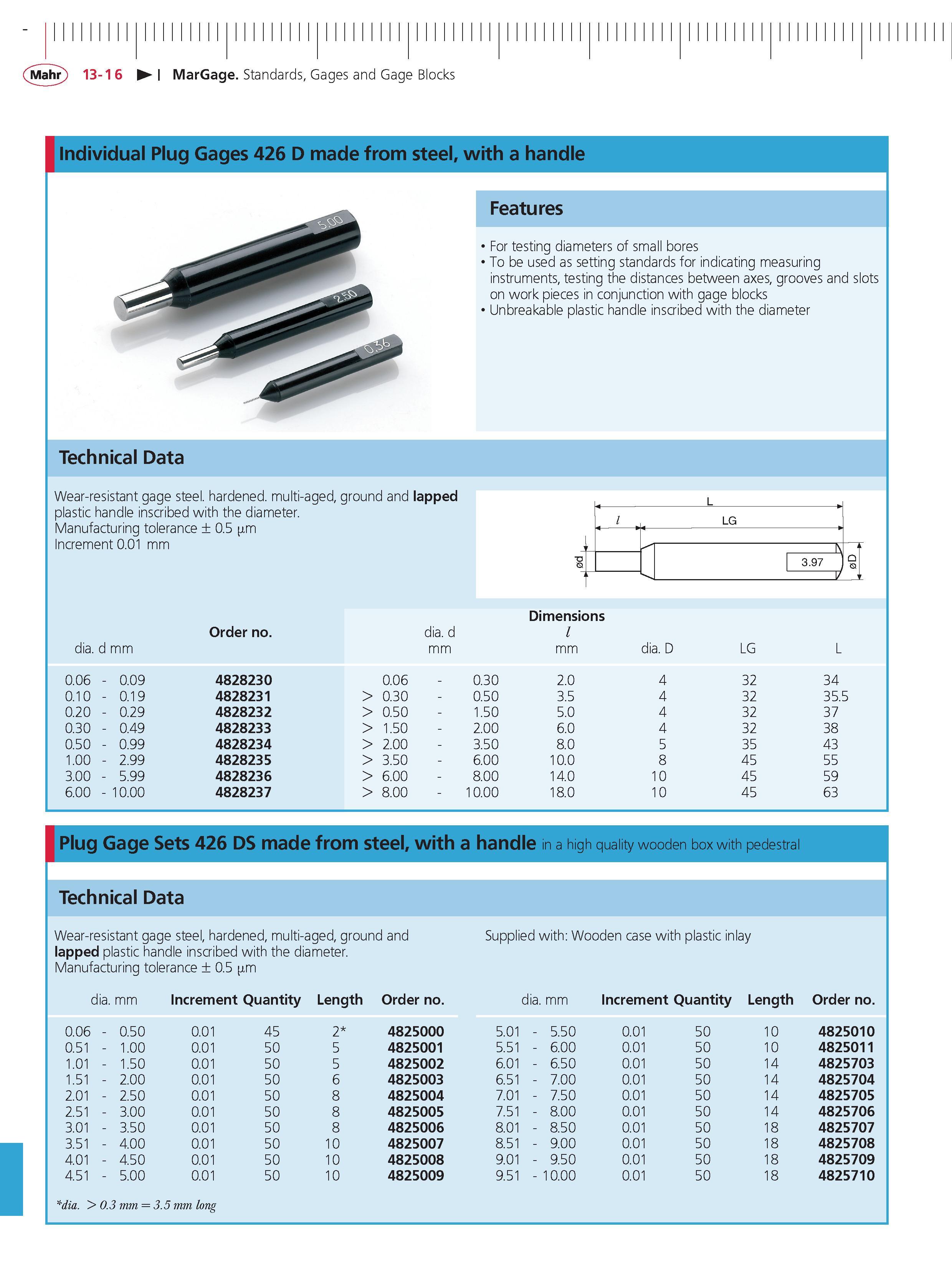

Mahr 13-16 MarGage Standards Gages and Gage Blocks Individual Plug Gages 426 D made from steel with a handle Features For testing diameters of small bores To be used as setting standards for indicating measuring instruments testing the distances between axes grooves and slots on work pieces in conjunction with gage blocks Unbreakable plastic handle inscribed with the diameter Technical Data Wear-resistant gage steel. hardened. multi-aged ground and lapped plastic handle inscribed with the diameter. Manufacturing tolerance 0.5 m Increment 0.01 mm Dimensions order no. dia. d l dia. m m d mm mm dia. D LG L 0.06 - 0.09 4828230 0.06 - 0.30 2.0 4 32 34 0.10 - 0.19 4828231 0.30 - 0.50 3.5 4 32 35.5 0.20 - 0.29 4828232 0.50 - 1.50 5.0 4 32 37 0.30 - 0.49 4828233 1.50 - 2.00 6.0 4 32 38 0.50 - 0.99 4828234 2.00 - 3.50 8.0 5 35 43 1.00 - 2.99 4828235 3.50 - 6.00 10.0 8 45 55 3.00 - 5.99 4828236 6.00 - 8.00 14.0 10 45 59 6.00 - 10.00 4828237 8.00 - 10.00 18.0 10 45 63 Plug Gage sets 426 Ds made from steel with a handle in a high quality wooden box with pedestral Technical Data Wear-resistant gage steel hardened multi-aged ground and Supplied with Wooden case with plastic inlay lapped plastic handle inscribed with the diameter. Manufacturing tolerance 0.5 m dia. mm Increment Quantity Length order no. dia. mm Increment Quantity Length order no. 0.06 - 0.50 0.01 45 2 4825000 5.01 - 5.50 0.01 50 10 4825010 0.51 - 1.00 0.01 50 5 4825001 5.51 - 6.00 0.01 50 10 4825011 1.01 - 1.50 0.01 50 5 4825002 6.01 - 6.50 0.01 50 14 4825703 1.51 - 2.00 0.01 50 6 4825003 6.51 - 7.00 0.01 50 14 4825704 2.01 - 2.50 0.01 50 8 4825004 7.01 - 7.50 0.01 50 14 4825705 2.51 - 3.00 0.01 50 8 4825005 7.51 - 8.00 0.01 50 14 4825706 3.01 - 3.50 0.01 50 8 4825006 8.01 - 8.50 0.01 50 18 4825707 3.51 - 4.00 0.01 50 10 4825007 8.51 - 9.00 0.01 50 18 4825708 4.01 - 4.50 0.01 50 10 4825008 9.01 - 9.50 0.01 50 18 4825709 4.51 - 5.00 0.01 50 10 4825009 9.51 - 10.00 0.01 50 18 4825710 dia. 0.3 mm 3.5 mm long
