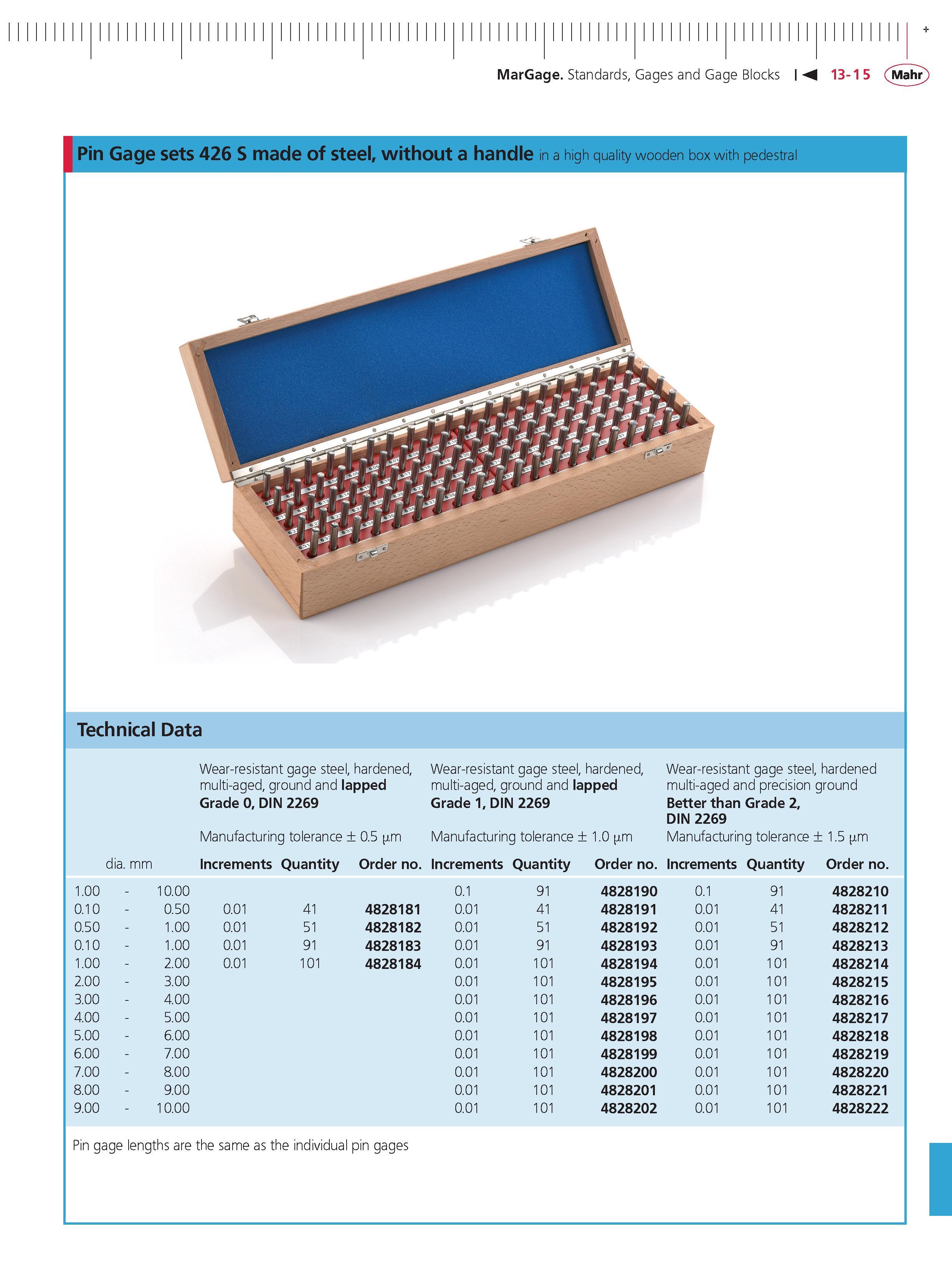

MarGage Standards Gages and Gage Blocks M 13-15 Mahr Pin Gage sets 426 s made of steel without a handle in a high quality wooden box with pedestral Technical Data Wear-resistant gage steel hardened Wear-resistant gage steel hardened Wear-resistant gage steel hardened multi-aged ground and lapped multi-aged ground and lapped multi-aged and precision ground Grade 0 DIN 2269 Grade 1 DIN 2269 Better than Grade 2 DIN 2269 Manufacturing tolerance 0.5 m Manufacturing tolerance m .0 Manufacturing tolerance m .5 dia. mm Increments Quantity order no. Increments Quantity order no. Increments Quantity order no. 1.00 - 10.00 0.1 91 4828190 0.1 91 4828210 0.10 - 0.50 0.01 41 4828181 0.01 41 4828191 0.01 41 4828211 0.50 - 1.00 0.01 51 4828182 0.01 51 4828192 0.01 51 4828212 0.10 - 1.00 0.01 91 4828183 0.01 91 4828193 0.01 91 4828213 1.00 - 2.00 0.01 101 4828184 0.01 101 4828194 0.01 101 4828214 2.00 - 3.00 0.01 101 4828195 0.01 101 4828215 3.00 - 4.00 0.01 101 4828196 0.01 101 4828216 4.00 - 5.00 0.01 101 4828197 0.01 101 4828217 5.00 - 6.00 0.01 101 4828198 0.01 101 4828218 6.00 - 7.00 0.01 101 4828199 0.01 101 4828219 7.00 - 8.00 0.01 101 4828200 0.01 101 4828220 8.00 - 9.00 0.01 101 4828201 0.01 101 4828221 9.00 - 10.00 0.01 101 4828202 0.01 101 4828222 Pin gage lengths are the same as the individual pin gages
