437 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.13-11

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 13-11 0437 ENG Lab2u

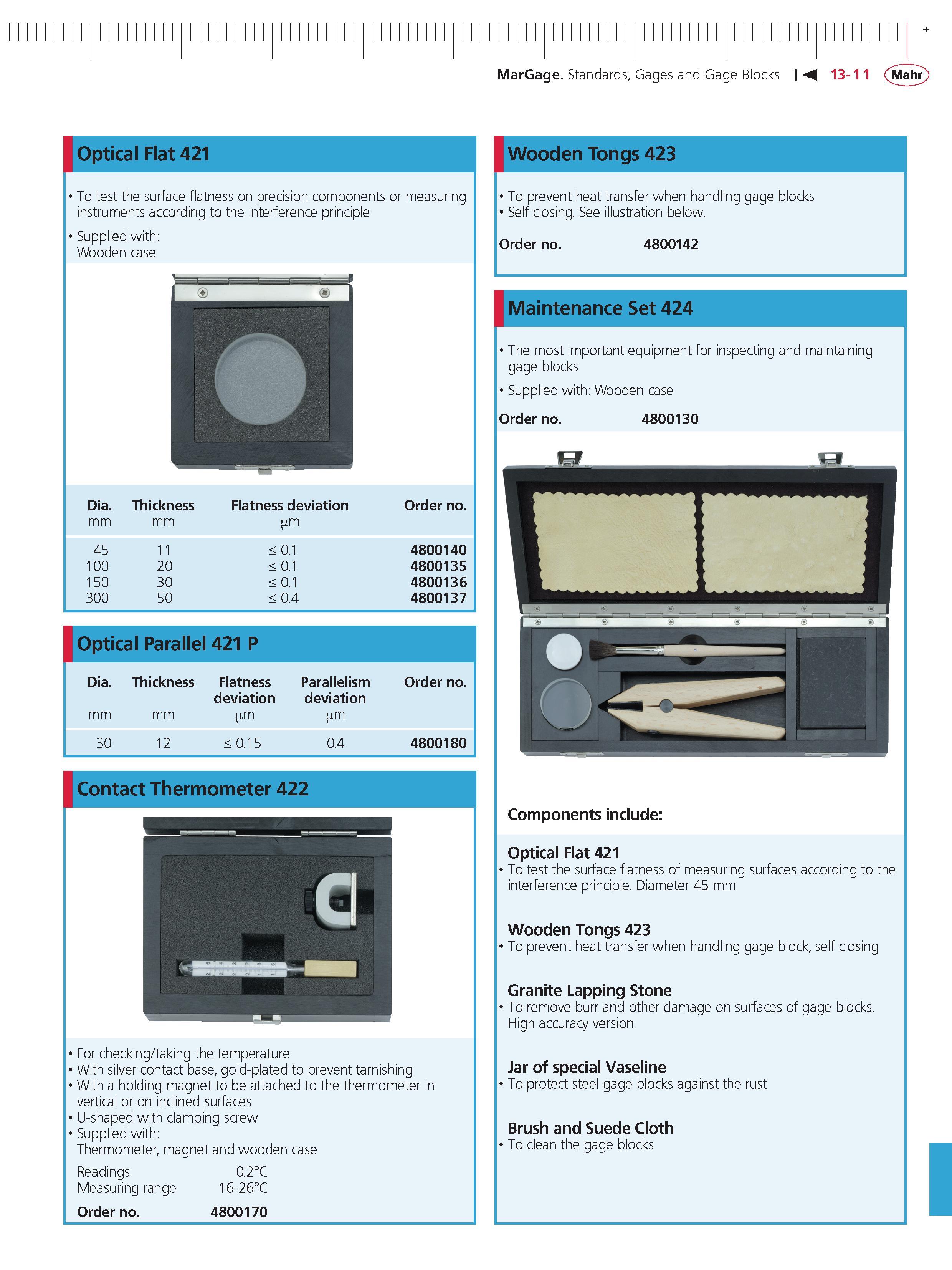

Optical Parallel 421 P Dia. thickness Flatness Parallelism order no. deviation deviation mm mm m m 30 12 0.15 0.4 4800180 Contact Thermometer 422 For checking taking the temperature With silver contact base gold-plated to prevent tarnishing With a holding magnet to be attached to the thermometer in vertical or on inclined surfaces U-shaped with clamping screw Supplied with Thermometer magnet and wooden case Readings 0.2C Measuring range 16-26C Order no. 4800170 + MarGage Standards Gages and Gage Blocks M 13-11 Mahr Wooden tongs 423 To prevent heat transfer when handling gage blocks Self closing. See illustration below. order no. 4800142 Maintenance set 424 The most important equipment for inspecting and maintaining gage blocks Supplied with Wooden case order no. 4800130 components include optical Flat 421 To test the surface flatness of measuring surfaces according to the interference principle. Diameter 45 mm Wooden tongs 423 To prevent heat transfer when handling gage block self closing Granite Lapping stone To remove burr and other damage on surfaces of gage blocks. High accuracy version Jar of special Vaseline To protect steel gage blocks against the rust Brush and suede cloth To clean the gage blocks
