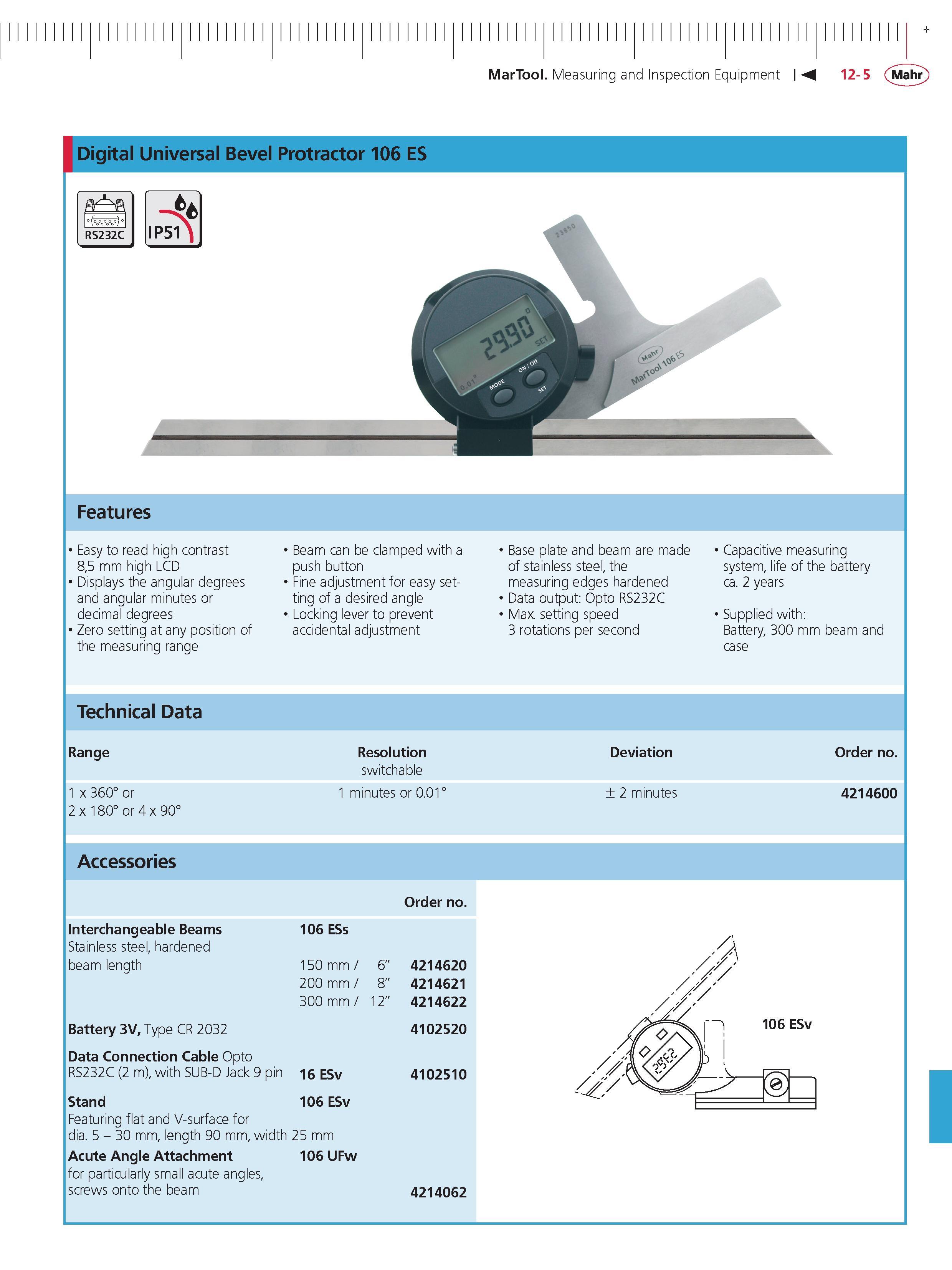

MarTool Measuring and Inspection Equipment M 12-5 Mahr Digital igital Universal Bevel Protractor 106 ES RS232C Features Easy to read high contrast 85 mm high LCD Displays the angular degrees and angular minutes or decimal degrees Zero setting at any position of the measuring range Beam can be clamped with a push button Fine adjustment for easy setting of a desired angle Locking lever to prevent accidental adjustment Base plate and beam are made of stainless steel the measuring edges hardened Data output Opto RS232C Max. setting speed 3 rotations per second Capacitive measuring system life of the battery ca. 2 years Supplied with Battery 300 mm beam and case Technical Data Range 1 x 360 or 2 x 180 or 4 x 90 resolution switchable 1 minutes or 0.01 Deviation 2 minutes Order no. 4214600 Accessories Interchangeable Beams Stainless steel hardened beam length Battery 3v Type CR 2032 106 ESs 150 mm 200 mm 300 mm Data Connection Cable Opto RS232C (2 m) with SUB-D Jack 9 pin 16 ESv Stand 106 ESv Featuring flat and V-surface for dia. 5 - 30 mm length 90 mm width 25 mm Acute Angle Attachment 106 uFw for particularly small acute angles screws onto the beam Order no. 6" 4214620 8" 4214621 12" 4214622 4102520 4102510 4214062 +
