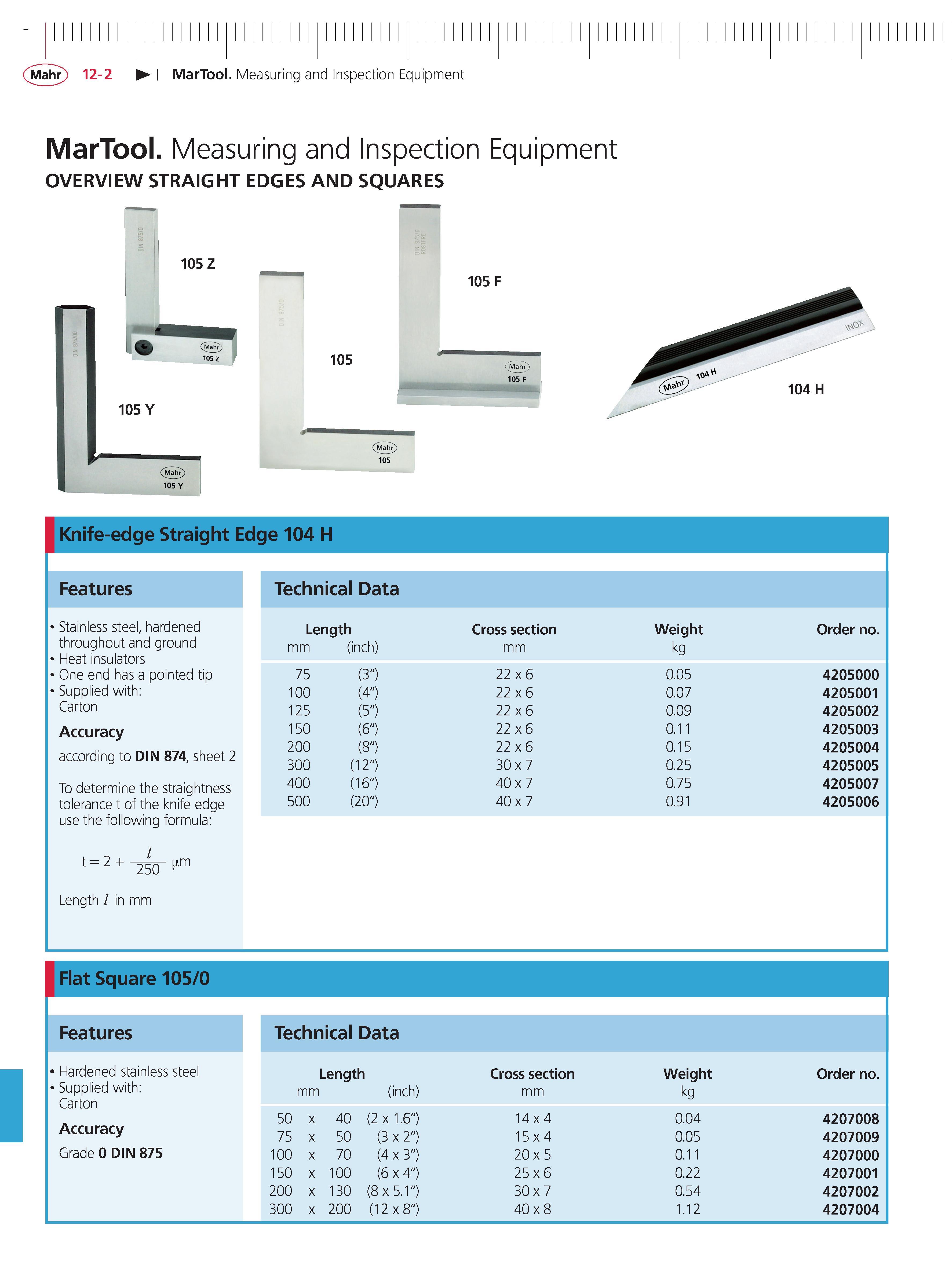

Mahr 12-2 MarTool Measuring and Inspection Equipment MarTool Measuring and Inspection Equipment OVERVIEW STRAIGHT EDGES AND SQUARES 105 Mahr 105 105 F Mahr 105 F 104 H Knife-edge Straight Edge 104 H Features Stainless steel hardened throughout and ground Heat insulators One end has a pointed tip Supplied with Carton Accuracy according to DIN 874 sheet 2 To determine the straightness tolerance t of the knife edge use the following formula Technical Data Length Cross section weight Order no. mm (inch) mm kg 75 (3") 22 x 6 0.05 4205000 100 (4") 22 x 6 0.07 4205001 125 (5") 22 x 6 0.09 4205002 150 (6") 22 x 6 0.11 4205003 200 (8") 22 x 6 0.15 4205004 300 (12") 30 x 7 0.25 4205005 400 (16") 40 x 7 0.75 4205007 500 (20") 40 x 7 0.91 4205006 t 2 + l 250 m Length l in mm Flat Square 105 0 Technical Data Length Cross section weight Order no. mm (inch) mm kg 50 x 40 (2 x 1.6") 14 x 4 0.04 4207008 75 x 50 (3 x 2") 15 x 4 0.05 4207009 100 x 70 (4 x 3") 20 x 5 0.11 4207000 150 x 100 (6 x 4") 25 x 6 0.22 4207001 200 x 130 (8 x 5.1") 30 x 7 0.54 4207002 300 x 200 (12 x 8") 40 x 8 1.12 4207004
