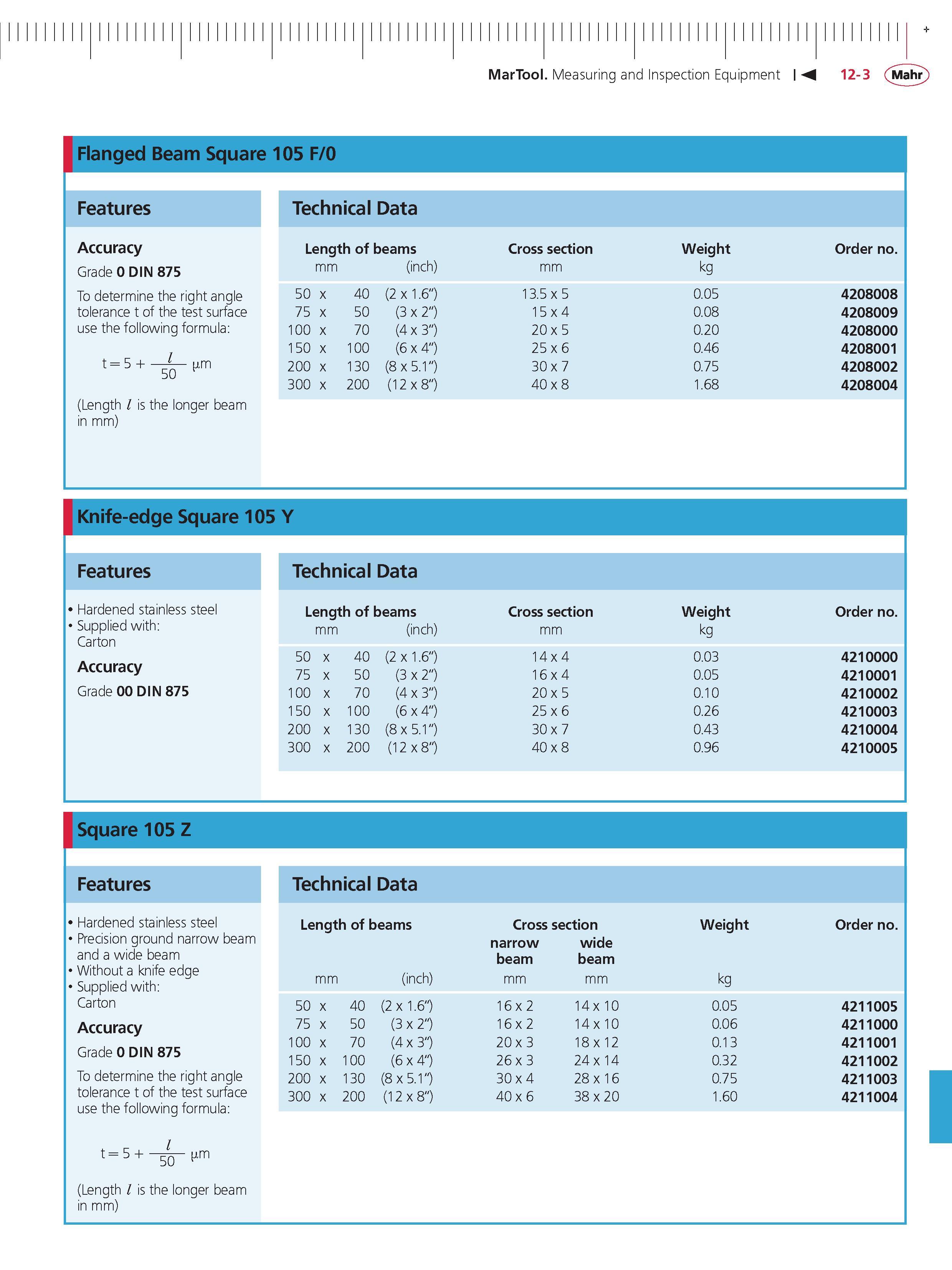

MarTool Measuring and Inspection Equipment M 12-3 Mahr Flanged Beam Square 105 F 0 Features Technical Data Accuracy Grade 0 DIN 875 To determine the right angle tolerance t of the test surface use the following formula t 5 + 50 (Length l is the longer beam in mm) Length of beams Cross section weight Order no. mm (inch) mm kg 50 x 40 (2 x 1.6") 13.5 x 5 0.05 4208008 75 x 50 (3 x 2") 15 x 4 0.08 4208009 100 x 70 (4 x 3") 20 x 5 0.20 4208000 150 x 100 (6 x 4") 25 x 6 0.46 4208001 200 x 130 (8 x 5.1") 30 x 7 0.75 4208002 300 x 200 (12 x 8") 40 x 8 1.68 4208004 Knife-edge Square 105 Y Features Technical Data Hardened stainless steel Supplied with Carton Accuracy Grade 00 DIN 875 Length of beams Cross section weight Order no. mm (inch) mm kg x 0 5 40 (2 x 1.6") 14 x 4 0.03 4210000 x 5 7 50 (3 x 2") 16 x 4 0.05 4210001 100 x 70 (4 x 3") 20 x 5 0.10 4210002 150 x 100 (6 x 4") 25 x 6 0.26 4210003 200 x 130 (8 x 5.1") 30 x 7 0.43 4210004 300 x 200 (12 x 8") 40 x 8 0.96 4210005 Square 105 Z Features Technical Data Hardened stainless steel Precision ground narrow beam and a wide beam Without a knife edge Supplied with Carton Accuracy Grade 0 DIN 875 To determine the right angle tolerance t of the test surface use the following formula Length of beams Cross section weight Order no. narrow wide beam beam mm (inch) mm mm g k 50 x 40 (2 x 1.6") 16 x 2 14 x 10 0.05 4211005 75 x 50 (3 x 2") 16 x 2 14 x 10 0.06 4211000 100 x 70 (4 x 3") 20 x 3 18 x 12 0.13 4211001 150 x 100 (6 x 4") 26 x 3 24 x 14 0.32 4211002 200 x 130 (8 x 5.1") 30 x 4 28 x 16 0.75 4211003 300 x 200 (12 x 8") 40 x 6 38 x 20 1.60 4211004 t 5 + 50 (Length l is the longer beam in mm)
