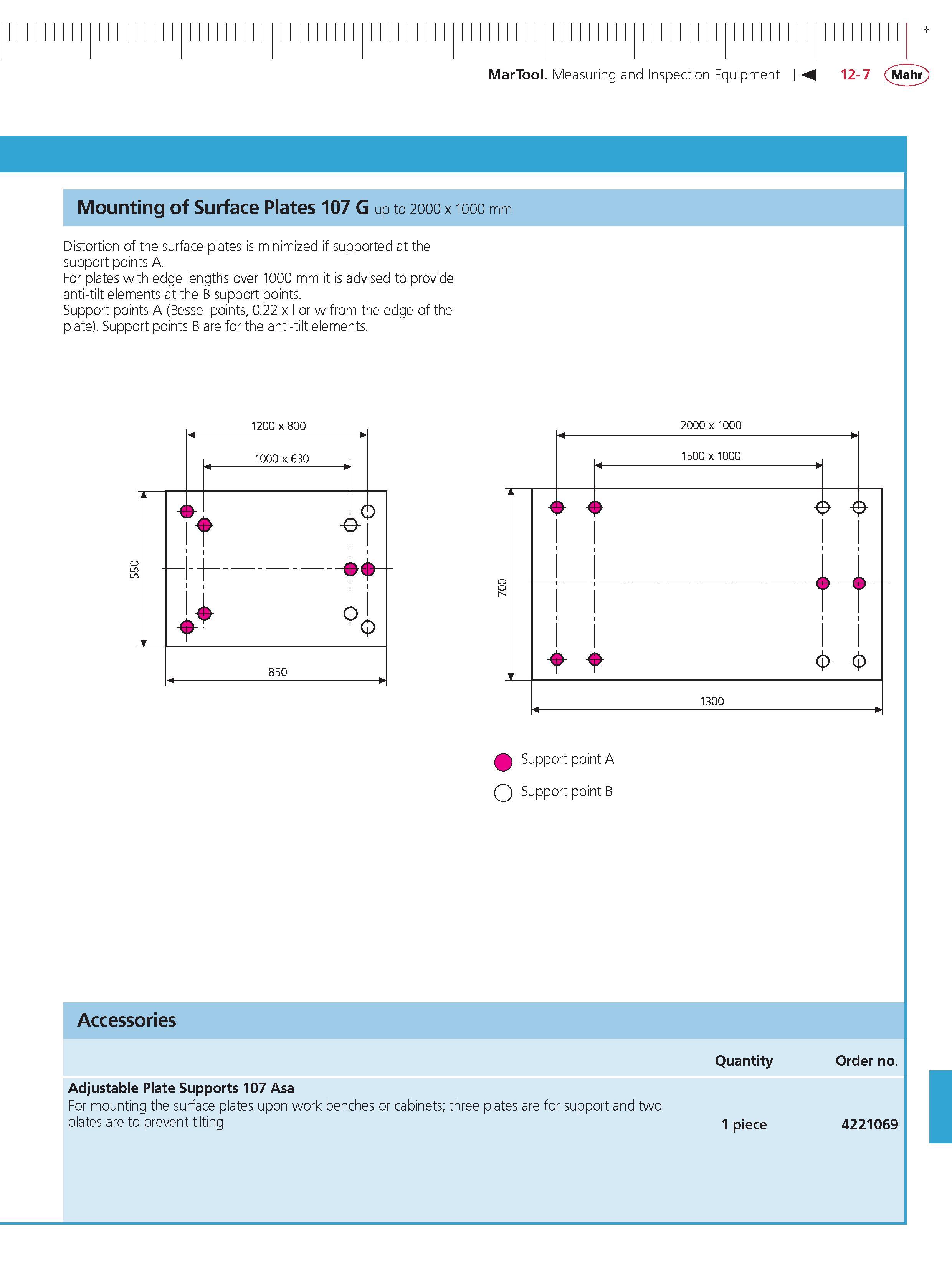

Mounting of Surface Plates 107 G up to 2000 x 1000 mm Distortion of the surface plates is minimized if supported at the support points A. For plates with edge lengths over 1000 mm it is advised to provide anti-tilt elements at the B support points. Support points A (Bessel points 0.22 x l or w from the edge of the plate). Support points B are for the anti-tilt elements. 2000 x1000 1500 x 1000 -0 (j) 1 1 1 1 1 1 1 1 1 1 1 1 - l 1300 Q Support point A Q Support point B Accessories Quantity Order no. Adjustable Plate Supports 107 Asa For mounting the surface plates upon work benches or cabinets; three plates are for support and two plates are to prevent tilting 1 piece
