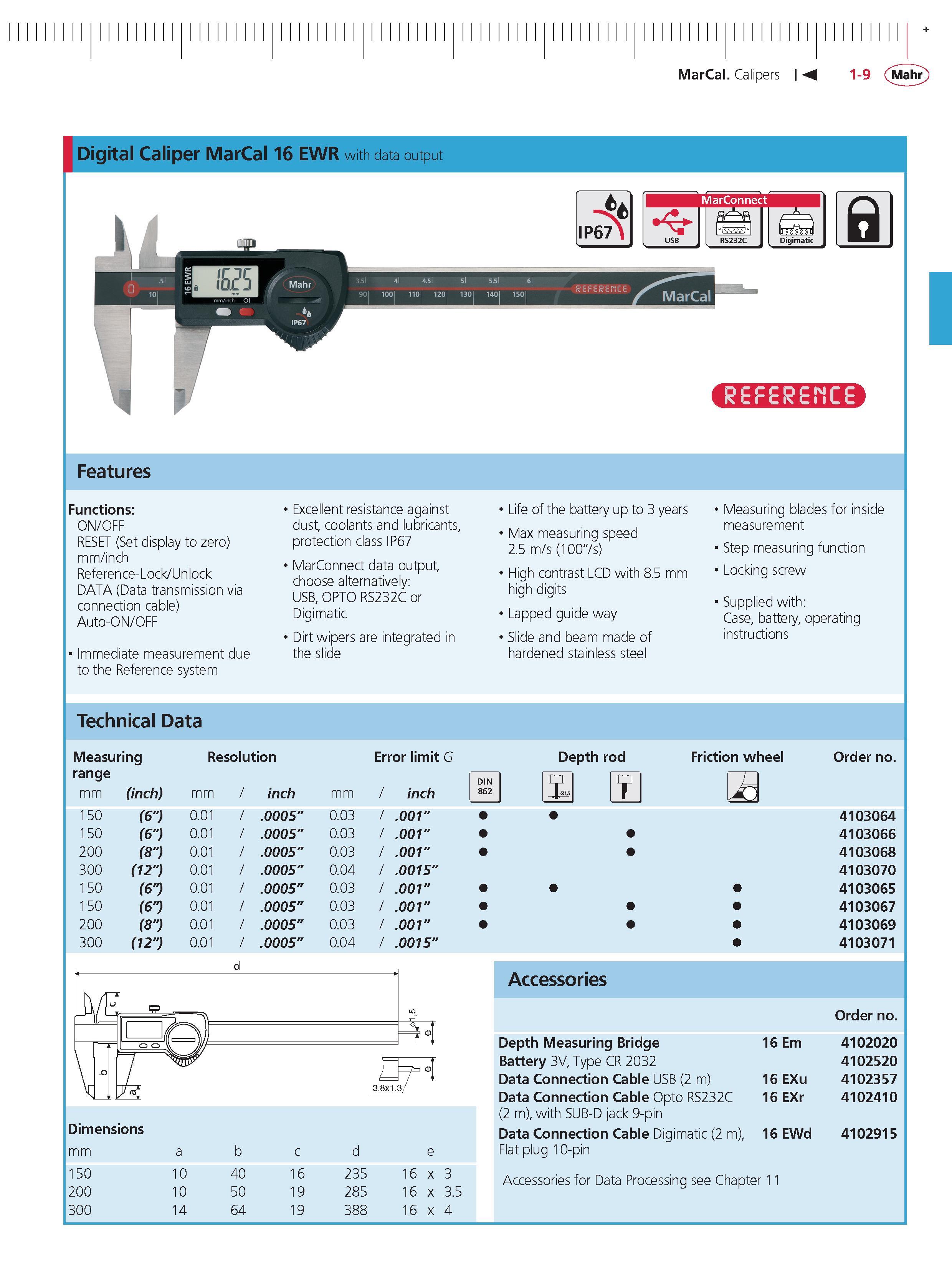

MarCal Calipers M 1-9 (ftflahr) + Digital Caliper MarCal 16 EWR with data output MarConnect IP67 USB RS232C Digimatic 0 Features Functions ON/OFF RESET (Set display to zero) mm inch Reference- Lock Unlock DATA (Data transmission via connection cable) Auto-ON/OFF Immediate measurement due to the Reference system Excellent resistance against dust coolants and lubricants protection class IP67 MarConnect data output choose alternatively USB OPTO RS232C or Digimatic Dirt wipers are integrated in the slide Life of the battery up to 3 years Max measuring speed 2.5 m s (100" s) High contrast LCD with 8.5 mm high digits Lapped guide way Slide and beam made of hardened stainless steel Measuring blades for inside measurement Step measuring function Locking screw Supplied with Case battery operating instructions Technical Data Measuring resolution error limit G Depth rod Friction wheel order no. range mm (inch) mm inch mm inch DIN 862 n J 5 150 (66") 0.01 .0005" 0.03 .001" 4103064 150 (6'") 0.01 .0005" 0.03 .001" 4103066 200 (8") 0.01 .0005" 0.03 .001" 4103068 300 (12") 0.01 .0005" 0.04 .0015" 4103070 150 (6") 0.01 .0005" 0.03 .001" 4103065 150 (6") 0.01 .0005" 0.03 .001" 4103067 200 (8") 0.01 .0005" 0.03 .001" 4103069 300 (12") 0.01 .0005" 0.04 .0015" 4103071 Dimensions mm a b c d e 150 10 40 16 235 16 x 3 200 10 50 19 285 16 x 3.5 300 14 64 19 388 16 x 4 Accessories Depth Measuring Bridge Battery 3V Type CR 2032 Data Connection Cable USB (2 m) Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin Data Connection Cable Digimatic (2 m) Flat plug 10-pin 16 em 16 EXu 16 eXr order no. 4102020 4102520 4102357 4102410 16 ewd 4102915 Accessories for Data Processing see Chapter 11
