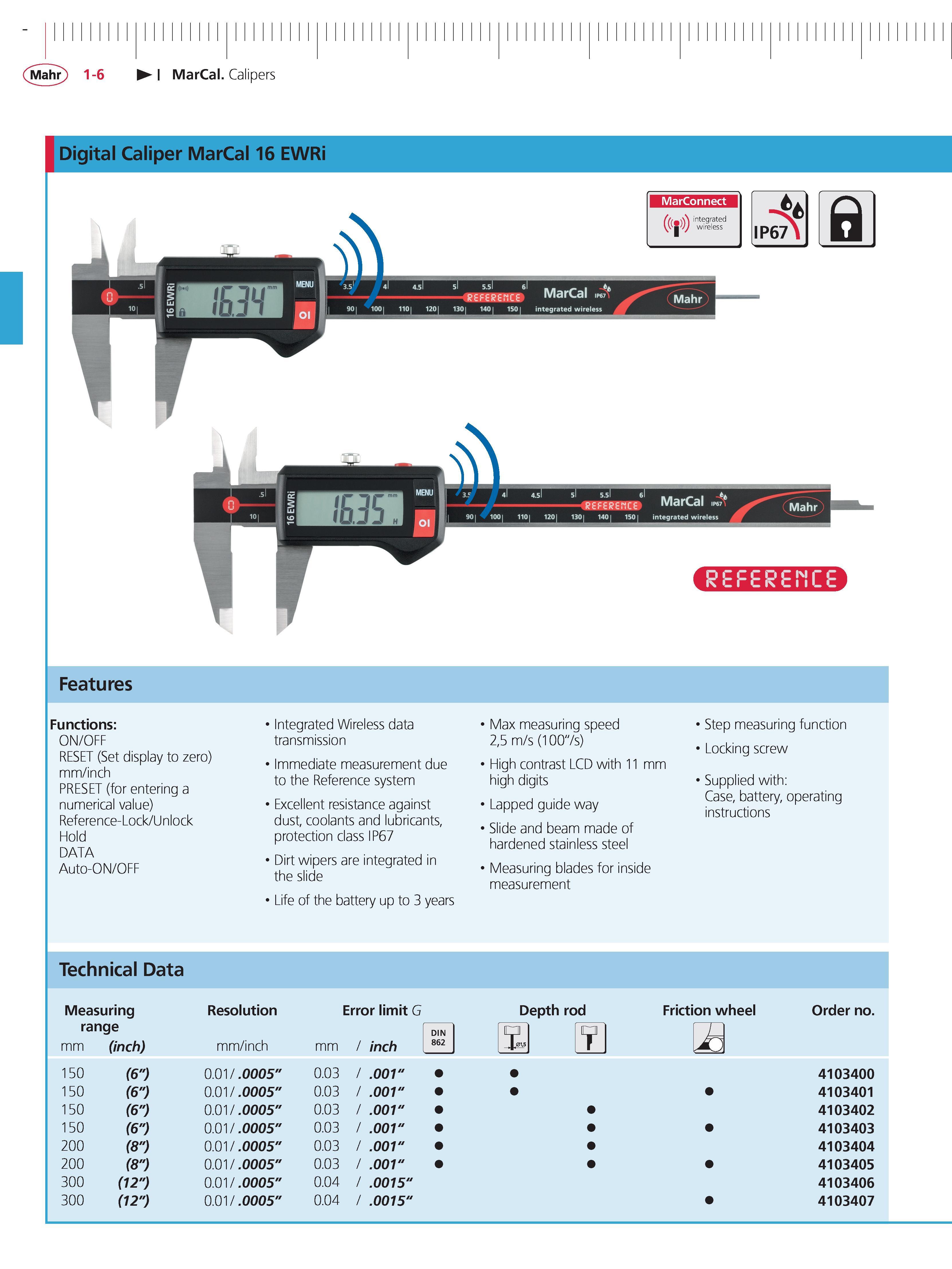

Mahr 1-6 MarCal Calipers Digital Caliper MarCal 16 EWRi MarConnect 6a IP67 01 Features Functions ON/OFF RESET (Set display to zero) mm inch PRESET (for entering a numerical value) Reference-Lock Unlock Hold DATA Auto-ON/OFF Integrated Wireless data transmission Immediate measurement due to the Reference system Excellent resistance against dust coolants and lubricants protection class IP67 Dirt wipers are integrated in the slide Life of the battery up to 3 years Max measuring speed 25 m s (100" s) High contrast LCD with 11 mm high digits Lapped guide way Slide and beam made of hardened stainless steel Measuring blades for inside measurement Step measuring function Locking screw Supplied with Case battery operating instructions Technical Data Measuring range resolution error limit G mm (inch) mm inch mm inch 150 (6") 0.01 .0005" 0.03 .001" 150 (6") 0.01 .0005" 0.03 .001" 150 (6") 0.01 .0005" 0.03 .001" 150 (6") 0.01 .0005" 0.03 .001" 200 (8") 0.01 .0005" 0.03 .001" 200 (8") 0.01 .0005" 0.03 .001" 300 (12") 0.01 .0005" 0.04 .0015" 300 (12") 0.01 .0005" 0.04 .0015" Depth rod Friction wheel order no. DIN 862 4103400 4103401 4103402 4103403 4103404 4103405 4103406 4103407
