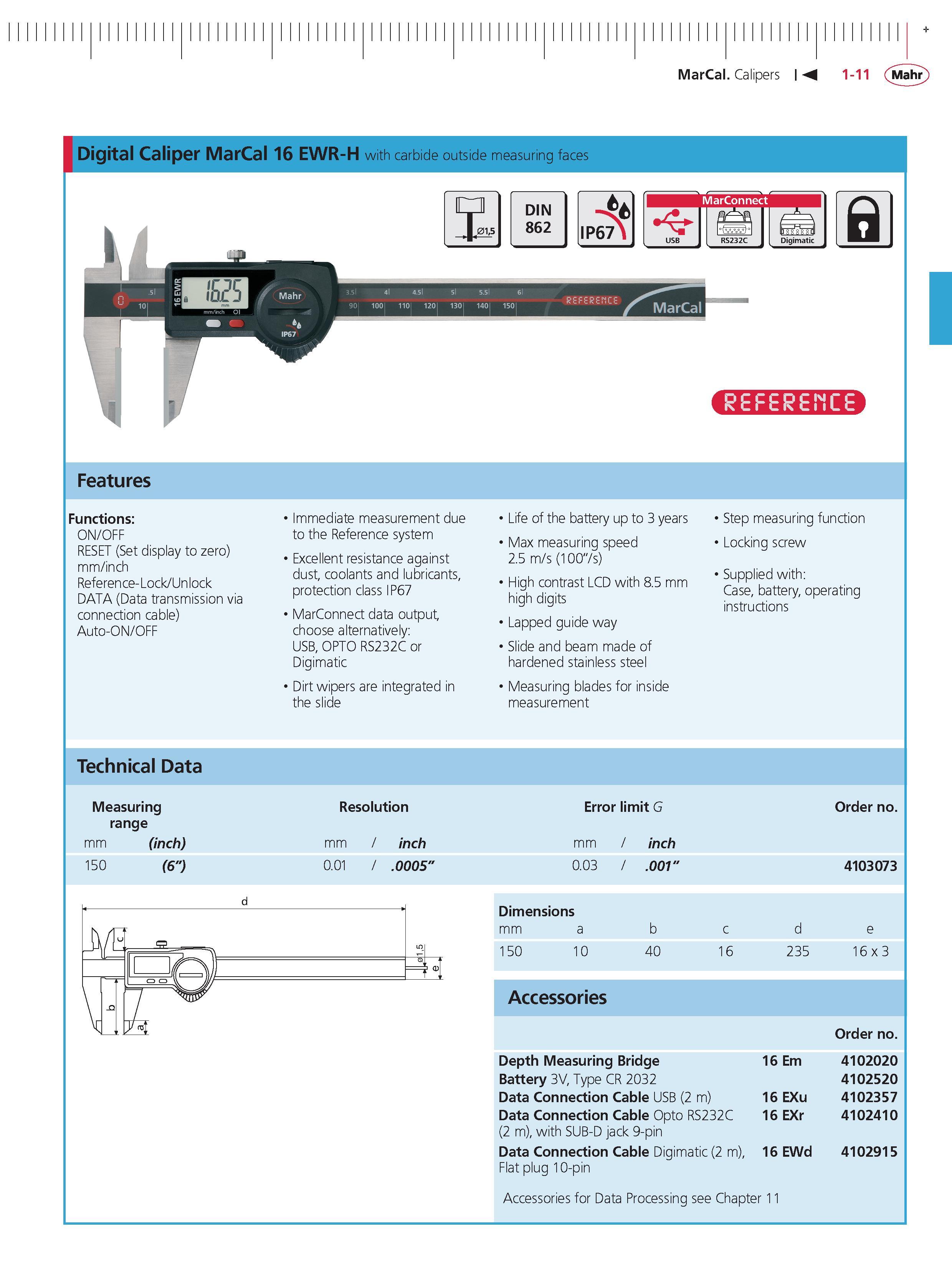

MarCal Calipers 1-11 Mahr Digital Caliper MarCal 16 EWR-H with carbide outside measuring faces s r Features Functions ON/OFF RESET (Set display to zero) mm inch Reference- Lock Unlock DATA (Data transmission via connection cable) Auto-ON/OFF Immediate measurement due to the Reference system Excellent resistance against dust coolants and lubricants protection class IP67 MarConnect data output choose alternatively USB OPTO RS232C or Digimatic Dirt wipers are integrated in the slide Life of the battery up to 3 years Max measuring speed 2.5 m s (1007s) High contrast LCD with 8.5 mm high digits Lapped guide way Slide and beam made of hardened stainless steel Measuring blades for inside measurement Step measuring function Locking screw Supplied with Case battery operating instructions Technical Data Measuring range mm (inch) 150 (6") resolution mm inch 0.01 .0005 error limit G mm inch 0.03 .001" order no. 4103073 Dimensions mm a 150 10 b 40 c 16 de 235 16x3 Accessories Depth Measuring Bridge Battery 3V Type CR 2032 Data Connection Cable USB (2 m) Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin Data Connection Cable Digimatic (2 m) Flat plug 10-pin 16 em 16 EXu 16 eXr order no. 4102020 4102520 4102357 4102410 16 ewd 4102915 Accessories for Data Processing see Chapter 11 +
