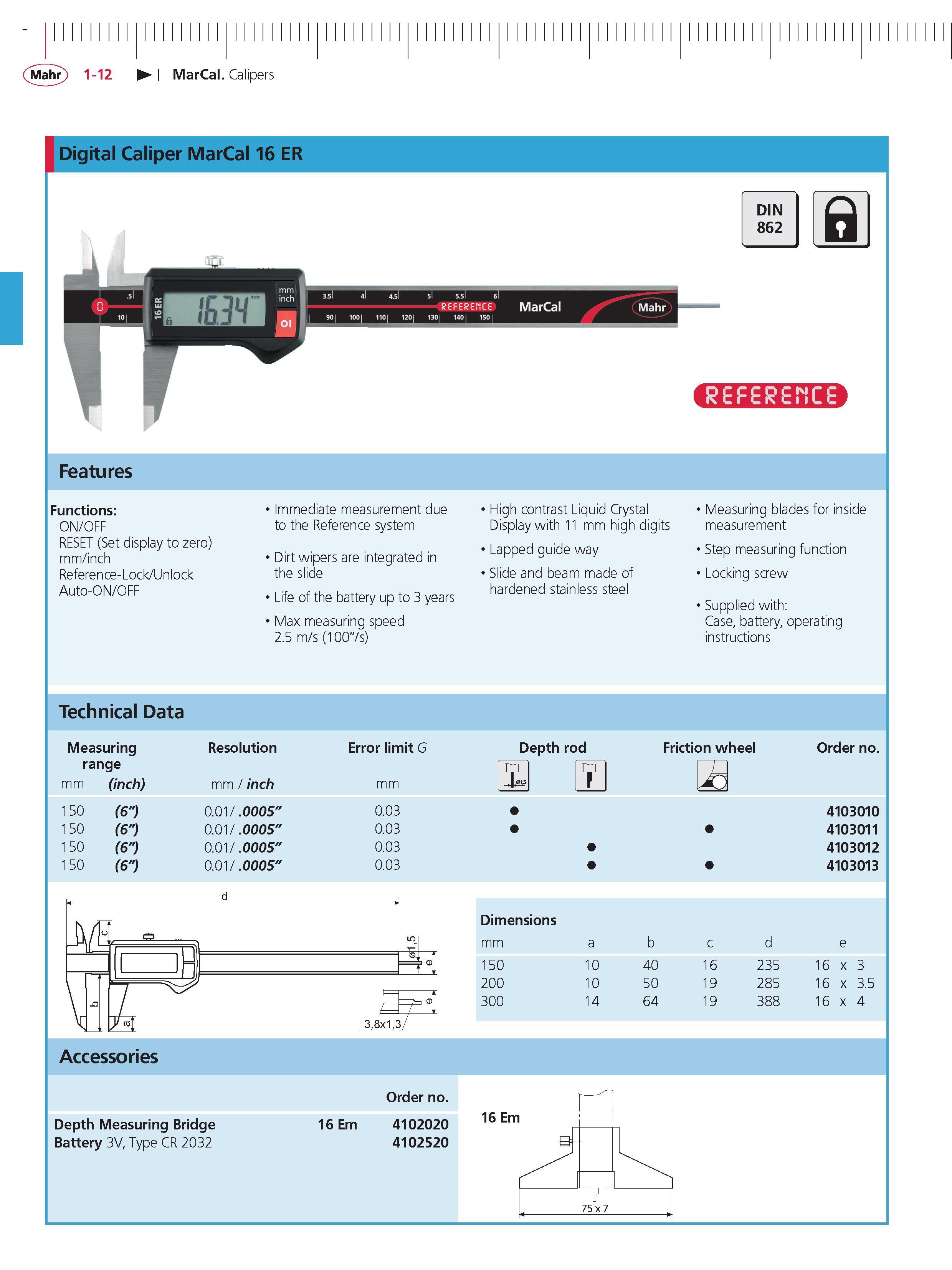

Mahr 1-12 MarCal Calipers Digital Caliper MarCal 16 ER DIN Q 862 D Features Functions ON/OFF RESET (Set display to zero) mm inch Reference-Lock Unlock Auto-ON/OFF Immediate measurement due to the Reference system Dirt wipers are integrated in the slide Life of the battery up to 3 years Max measuring speed 2.5 m s (100" s) High contrast Liquid Crystal Display with 11 mm high digits Lapped guide way Slide and beam made of hardened stainless steel Measuring blades for inside measurement Step measuring function Locking screw Supplied with Case battery operating instructions Technical Data Measuring range (inch) mm 150 150 150 150 (6") (6'") (6'") (6'") resolution mm inch 0.01 .0005" 0.01 .0005" 0.01 .0005" 0.01 .0005" d error limit G mm Depth rod Friction wheel 0.03 0.03 0.03 0.03 order no. 4103010 4103011 4103012 4103013 38x13 Dimensions mm a b c d e 150 10 40 16 235 16 x 3 200 10 50 19 285 16 x 3.5 300 14 64 19 388 16 x 4 Accessories Depth Measuring Bridge Battery 3V Type CR 2032 16 em order no. 4102020 4102520
