39 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.1-13

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 1-13 0039 ENG Lab2u

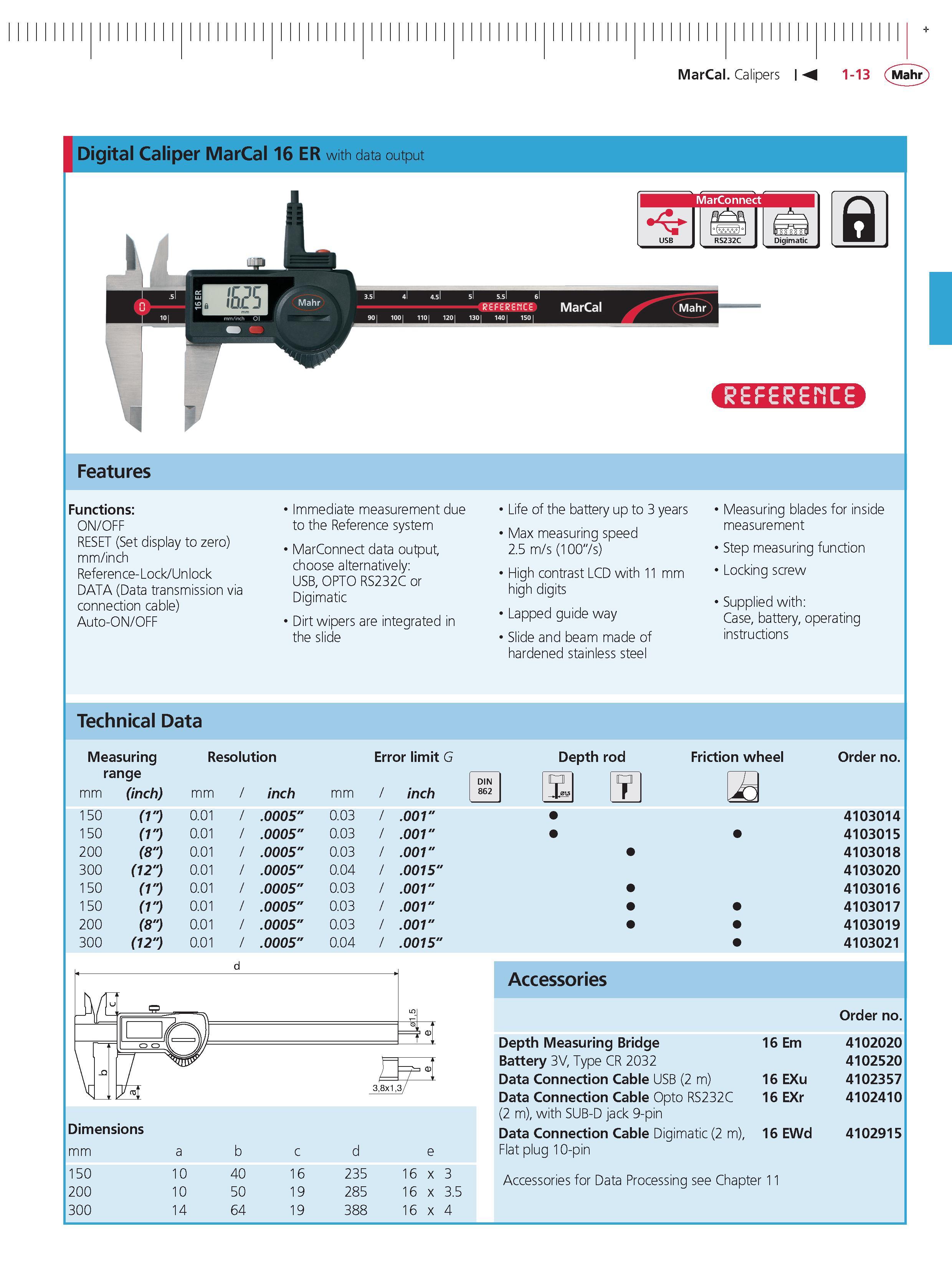

MarCal Calipers M 1-13 Mahr + Digital Caliper MarCal 16 ER with data output MarConnect W f Mahr 3.5l 4l 4.51 5l 5.51 6 R F R mC MarCal Mahr mm inch Ol 0 6 901 100 110 1201 1301 1401 1501 A 7 ' 1 Features Functions ON/OFF RESET (Set display to zero) mm inch Reference- Lock Unlock DATA (Data transmission via connection cable) Auto-ON/OFF Immediate measurement due to the Reference system MarConnect data output choose alternatively USB OPTO RS232C or Digimatic Dirt wipers are integrated in the slide Life of the battery up to 3 years Max measuring speed 2.5 m s (100" s) High contrast LCD with 11 mm high digits Lapped guide way Slide and beam made of hardened stainless steel Measuring blades for inside measurement Step measuring function Locking screw Supplied with Case battery operating instructions Technical Data Measuring range resolution Error limit mm (inch) mm inch mm inch 150 (1") 0.01 .0005" 0.03 .001" 150 (1") 0.01 .0005" 0.03 .001" 200 (8") 0.01 .0005" 0.03 .001" 300 (12") 0.01 .0005" 0.04 .0015" 150 (1") 0.01 .0005" 0.03 .001" 150 (1") 0.01 .0005" 0.03 .001" 200 (8") 0.01 .0005" 0.03 .001" 300 (12") 0.01 .0005" 0.04 .0015" Depth rod Friction wheel order no. DIN 862 n 4103014 4103015 4103018 4103020 4103016 4103017 4103019 4103021 Accessories Dimensions mm 150 200 300 a b c d e 10 40 16 235 16 x 3 10 50 19 285 16 x 3.5 14 64 19 388 16 x 4 order no. Depth Measuring Bridge 16 em 4102020 Battery 3V Type CR 2032 4102520 Data Connection Cable USB (2 m) 16 EXu 4102357 Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin 16 eXr 4102410 Data Connection Cable Digimatic (2 m) Flat plug 10-pin 16 ewd 4102915 Accessories for Data Processing see Chapter 11
