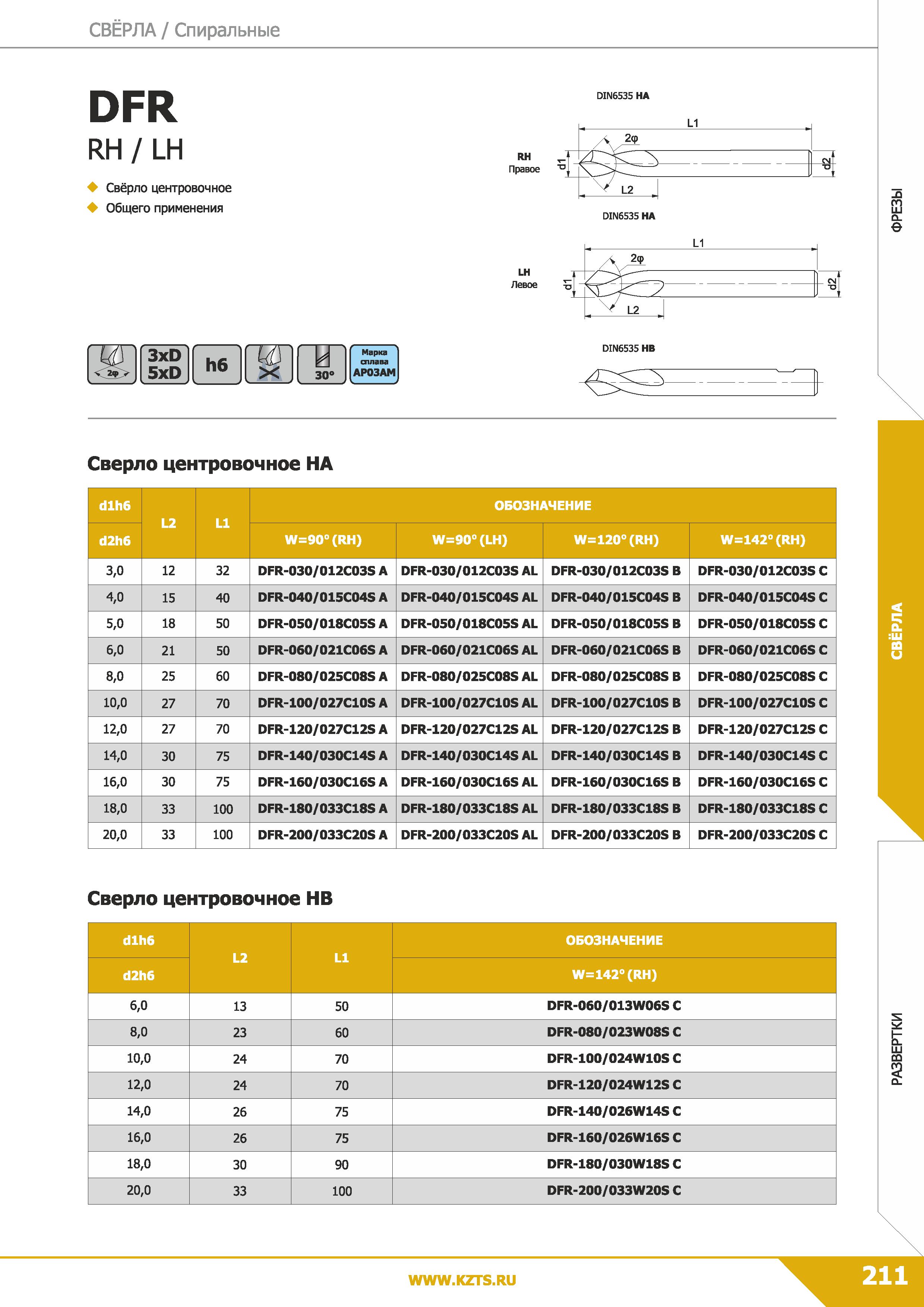

213 Каталог КЗТС 2019 Монолитный инструмент по металлу Фрезы Сверла Развертки Стр.211

Каталог КЗТС 2019 Монолитный инструмент для металлообработки Стр. 211 0213 Lab2u

Свёрла Спиральные DFR RH/LH Сверло центровочное Общего применения LH Левое DIN6535 НА L1 -О m о е 3xD 5xD h6 Wire X 30° Марка сплава АРОЗАМ DIN6535 НВ Сверло центровочное НА dlh6 L2 LI ОБОЗНАЧЕНИЕ d2h6 W=90° (RH) W=90° (LH) W=120° (RH) W=142° (RH) 3,0 12 32 DFR-030/012C03SA DFR-030/012C03S AL DFR-030/012C03SВ DFR-030/012C03SС 4,0 15 40 DFR-040/015C04SA DFR-040/015C04S AL DFR-040/015C04SВ DFR-040/015C04SС 5,0 18 50 DFR-050/018C05SA DFR-050/018C05S AL DFR-050/018C05SВ DFR-050/018C05SС 6,0 21 50 DFR-060/021C06SA DFR-060/021C06S AL DFR-060/021C06SВ DFR-060/021C06SС 8,0 25 60 DFR-080/025C08SA DFR-080/025C08S AL DFR-080/025C08SВ DFR-080/025C08SС 10,0 27 70 DFR-100/027C10S A DFR-100/027C10S AL DFR-100/027C10S В DFR-100/027C10SС 12,0 27 70 DFR-120/027C12S A DFR-120/027C12S AL DFR-120/027C12SВ DFR-120/027C12SС 14,0 30 75 DFR-140/030C14S A DFR-140/030C14S AL DFR-140/030C14S В DFR-140/030C14SС 16,0 30 75 DFR-160/030C16SA DFR-160/030C16S AL DFR-160/030C16SВ DFR-160/030C16SС 18,0 33 100 DFR-180/033C18SA DFR-180/033C18S AL DFR-180/033C18SВ DFR-180/033C18SС 20,0 33 100 DFR-200/033C20S A DFR-200/033C20S AL DFR-200/033C20SВ DFR-200/033C20SС Сверло центровочное HB dlh6 L2 ОБОЗНАЧЕНИЕ d2h6 W=142° (RH) 6,0 13 50 DFR-ОбО/013W06S С 8,0 23 60 DFR-080/023W08S С 10,0 24 70 DFR-100/024W10S С 12,0 24 70 DFR-120/024W12S С 14,0 26 75 DFR-140/026W14S С 16,0 26 75 DFR-160/026W16S С 18,0 30 90 DFR-180/030W18S С 20,0 33 100 DFR-200/033W20S С t СО 5
