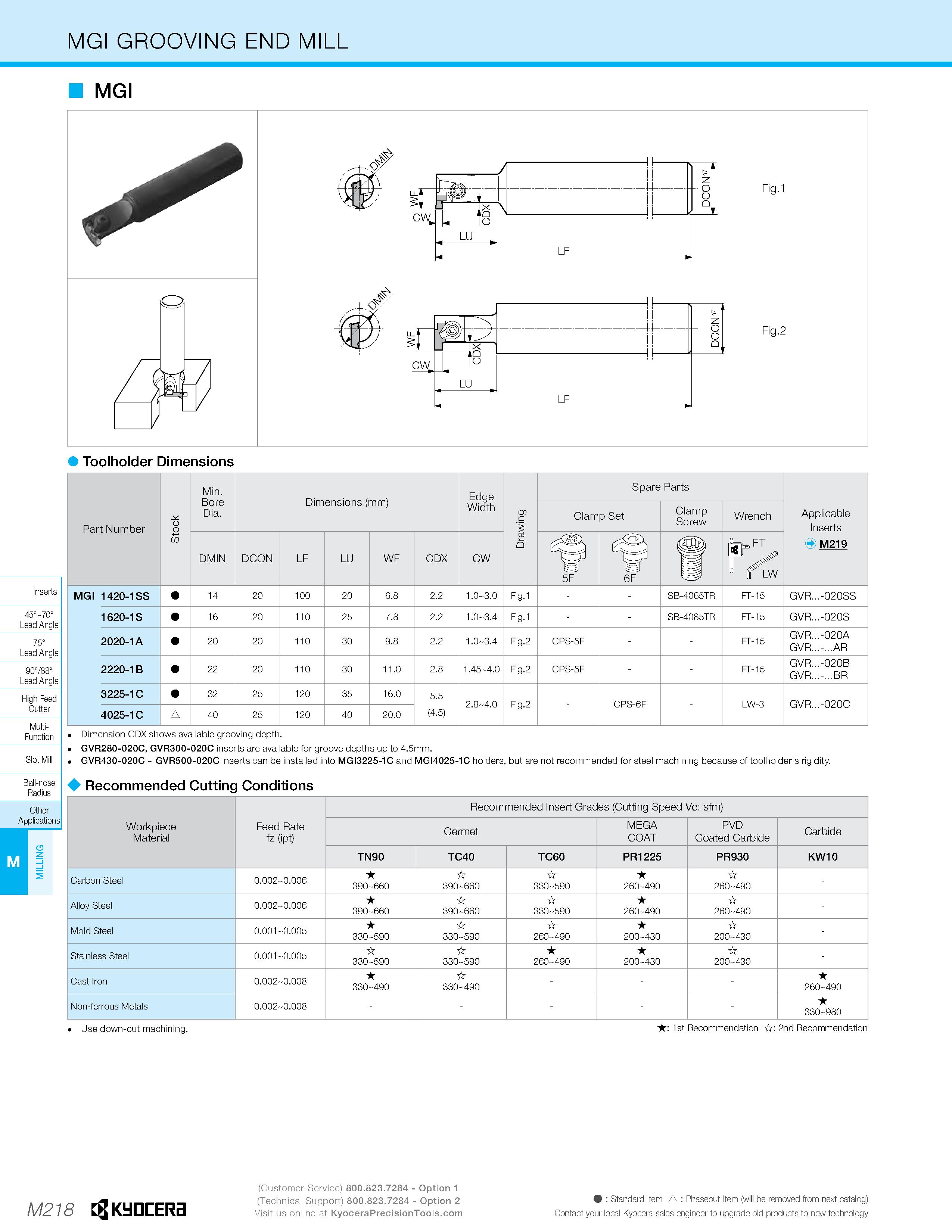

MGI GROOVING END MILL MGI Toolholder Dimensions 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function GVR280-020C, GVR300-020C inserts are available for groove depths up to 4.5mm. GVR430-020C GVR500-020C inserts can be installed into MGI3225-1C and MGI4025-1C holders, but are not recommended for steel machining because of toolholder's rigidity. B all-nose Radius Other Applications 4 Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: sfm) Workpiece Material Feed Rate fz (ipt) Cermet MEGA COAT PVD Coated Carbide Carbide TN90 TC40 TC60 PR1225 PR930 KW10 Carbon Steel 0.002-0.006 390-660 390-660 330-590 260-490 260-490 - Alloy Steel 0.002-0.006 390-660 390-660 330-590 260-490 260-490 - Mold Steel 0.001 -0.005 330-590 330-590 260-490 200-430 200-430 - Stainless Steel 0.001 -0.005 330-590 330-590 260-490 200-430 200-430 - Cast Iron 0.002-0.008 330-490 330-490 - - - 260-490 Non-ferrous Metals 0.002-0.008 - - - - - 330-980 Use down-cut machining. : 1st Recommendation : 2nd Recommendation M218 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
