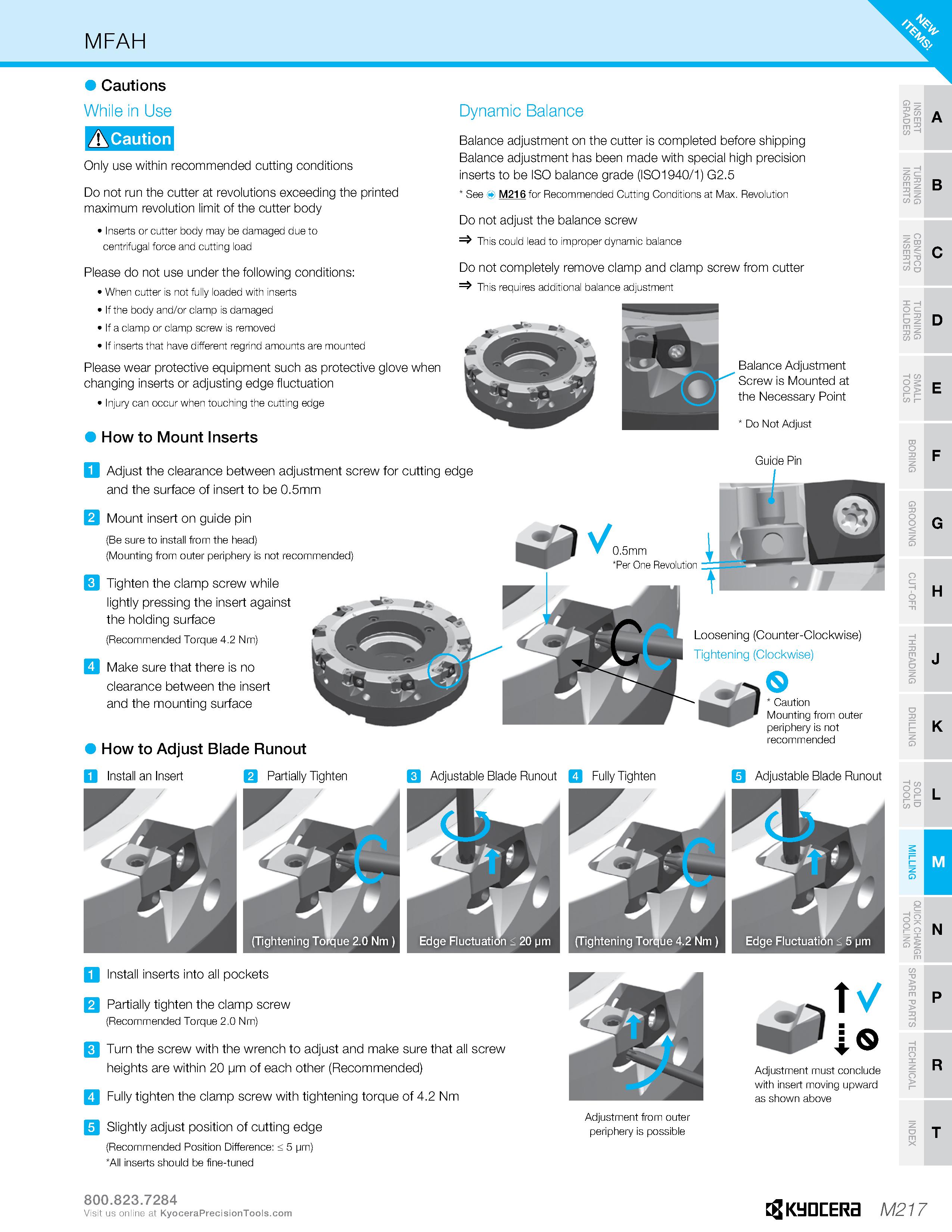

MFAH Cautions While in Use Caution Only use within recommended cutting conditions Do not run the cutter at revolutions exceeding the printed maximum revolution limit of the cutter body Inserts or cutter body may be damaged due to centrifugal force and cutting load Please do not use under the following conditions: When cutter is not fully loaded with inserts If the body and/or clamp is damaged If a clamp or clamp screw is removed If inserts that have different regrind amounts are mounted Please wear protective equipment such as protective glove when changing inserts or adjusting edge fluctuation Injury can occur when touching the cutting edge How to Mount Inserts 1 Adjust the clearance between adjustment screw for cutting edge and the surface of insert to be 0.5mm 2 Mount insert on guide pin (Be sure to install from the head) (Mounting from outer periphery is not recommended) 3 Tighten the clamp screw while lightly pressing the insert against the holding surface (Recommended Torque 4.2 Nm) 4 Make sure that there is no clearance between the insert and the mounting surface i How to Adjust Blade Runout 1 Install an Insert 0 Partially Tighten Dynamic Balance Balance adjustment on the cutter is completed before shipping Balance adjustment has been made with special high precision inserts to be ISO balance grade (ISO1940/1) G2.5 See M216 for Recommended Cutting Conditions at Max. Revolution Do not adjust the balance screw This could lead to improper dynamic balance Do not completely remove clamp and clamp screw from cutter This requires additional balance adjustment Balance Adjustment Screw is Mounted at the Necessary Point Do Not Adjust Guide Pin 0.5mm Per One Revolution 2 Adjustable Blade Runout Q Fully Tighten Loosening (Counter-Clockwise) Tightening (Clockwise) Caution Mounting from outer periphery is not recommended J Adjustable Blade Runout I (Tightening Torque 2.0 Nm ) (Tightening Torque 4.2 Nm ) Q Install inserts into all pockets B 3 Partially tighten the clamp screw (Recommended Torque 2.0 Nm) Turn the screw with the wrench to adjust and make sure that all screw heights are within 20 jm of each other (Recommended) 4 Fully tighten the clamp screw with tightening torque of 4.2 Nm 5 Slightly adjust position of cutting edge (Recommended Position Difference: 5 pm) All inserts should be fine-tuned 'hi 4V Adjustment from outer periphery is possible i Adjustment must conclude with insert moving upward as shown above DO "O SD B C D 0 s O A E K N P R T DE A F J L M Visit us online at Kyocera M217
