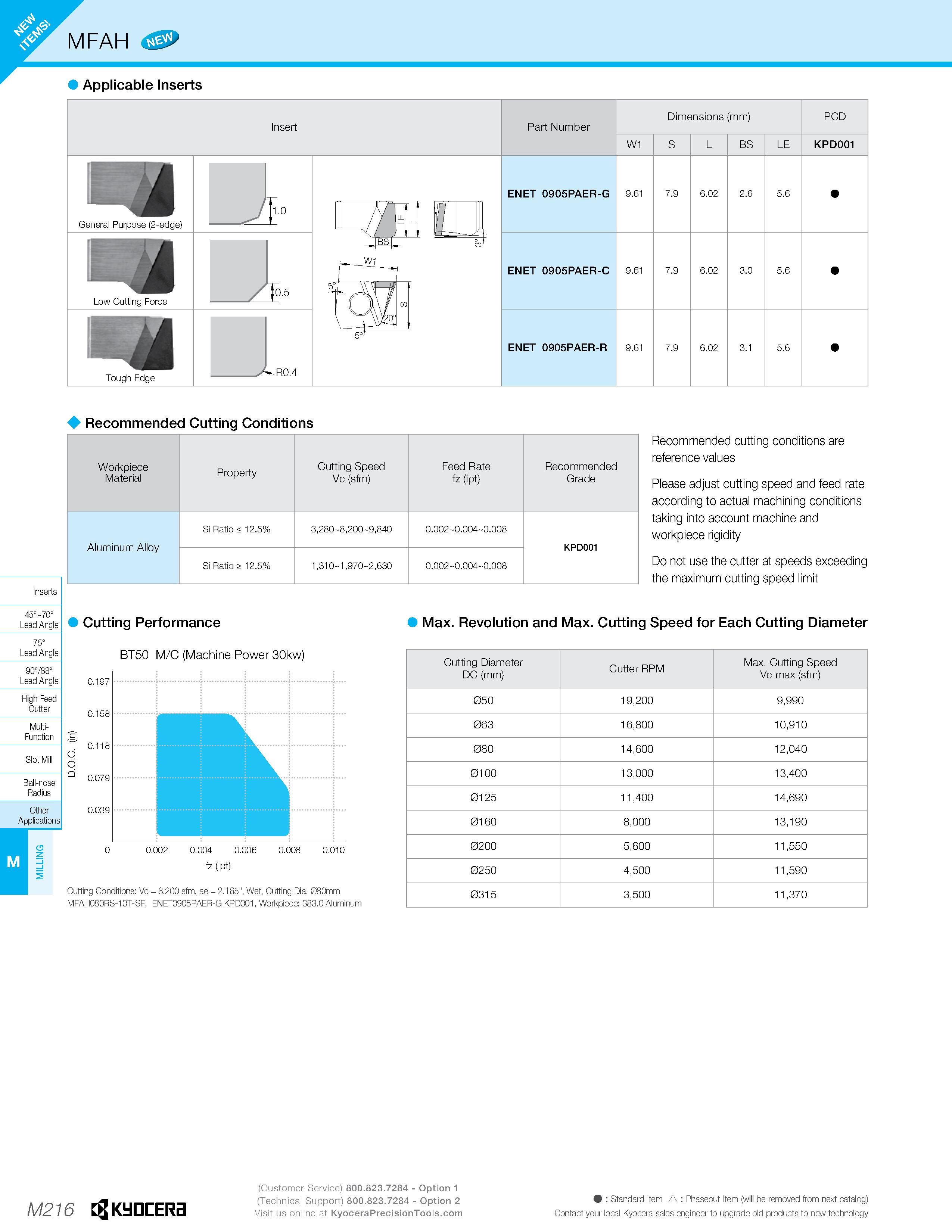

M Applicable Inserts General Purpose (2-edge) Low Cutting Force Tough Edge Insert A T°- -R0.4 Part Number ENET 0905PAER-G ENET 0905PAER-C ENET 0905PAER-R Dimensions (mm) W1 S L BS LE PCD KPD001 Recommended Cutting Conditions 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Workpiece Material Property Cutting Speed Vc (sfm) Feed Rate fz (ipt) Recommended Grade Aluminum Alloy Si Ratio 12.5% 3,280-8,200-9,840 0.002-0.004-0.008 KPD001 Si Ratio > 12.5% 1,310-1,970-2,630 0.002-0.004-0.008 Recommended cutting conditions are reference values Please adjust cutting speed and feed rate according to actual machining conditions taking into account machine and workpiece rigidity Do not use the cutter at speeds exceeding the maximum cutting speed limit Cutting Performance BT50 M/C (Machine Power 30kw) 0.197 0.158 a 0.118 Q 0.079 0.039 0 0.002 0.004 0.006 0.008 0.010 fe (ipt) Cutting Conditions: Vc = 8,200 sfm, ae = 2.165”, Wet, Cutting Dia. 080mm MFAH080RS-1OT-SF, ENET0905PAER-G KPD001, Workpiece: 383.0 Aluminum Max. Revolution and Max. Cutting Speed for Each Cutting Diameter Cutting Diameter DC (mm) Cutter RPM Max. Cutting Speed Vc max (sfm) 050 19,200 9,990 063 16,800 10,910 080 14,600 12,040 0100 13,000 13,400 0125 11,400 14,690 0160 8,000 13,190 0200 5,600 11,550 0250 4,500 11,590 0315 3,500 11,370 M216 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
