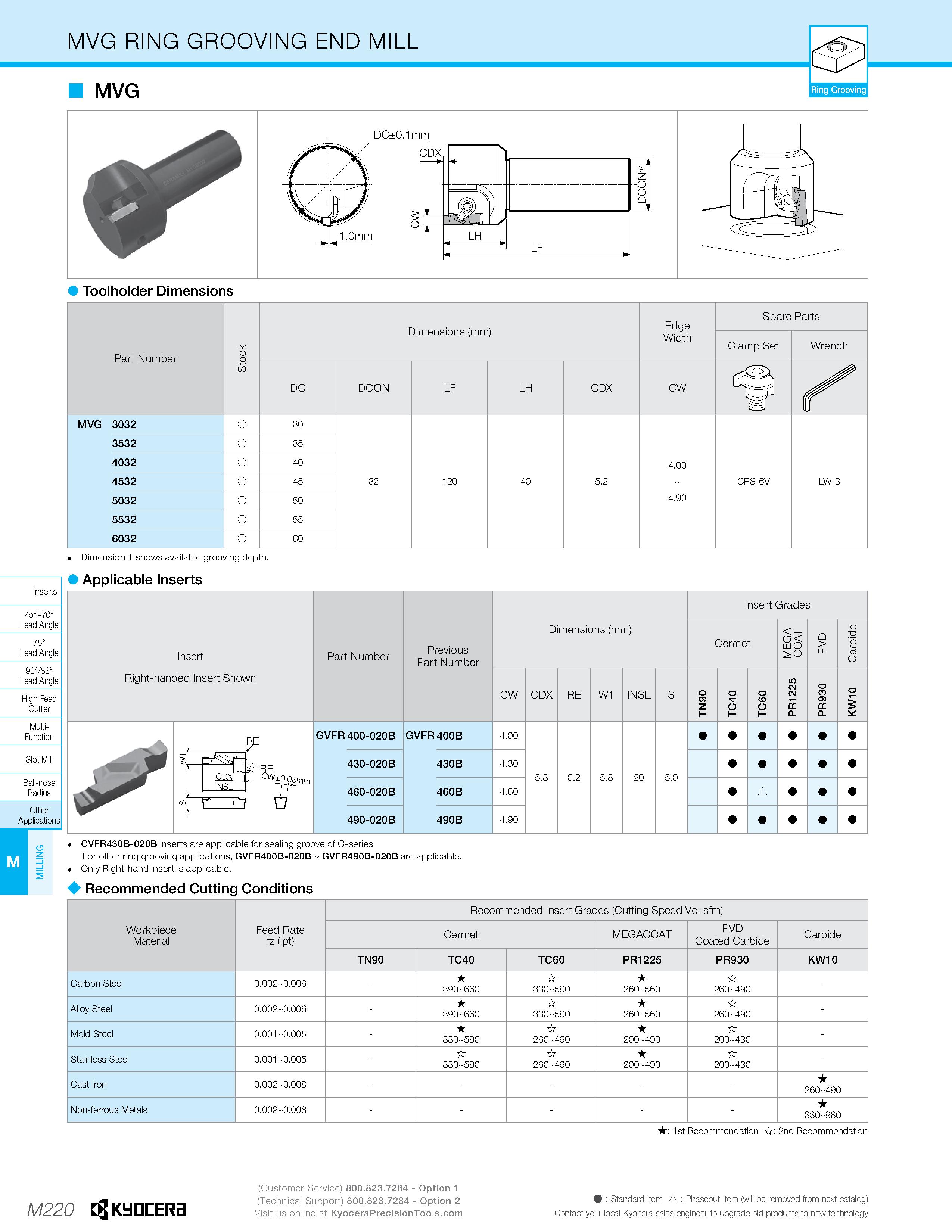

MVG RING GROOVING END MILL MVG Ring Grooving DC±0.1mm 1 .Omm Toolholder Dimensions Part Number Stock Dimensions (mm) Edge Width Spare Parts Clamp Set Wrench DC DCON LF LH CDX CW n s MVG 3032 O 30 3532 o 35 4032 o 40 4.00 4532 o 45 32 120 40 5.2 - CPS-6V LW-3 5032 o 50 4.90 5532 o 55 6032 o 60 Dimension T shows available grooving depth. Applicable Inserts Insert Right-handed Insert Shown Part Number Previous Part Number Dimensions (mm) CW CDX RE W1 INSL Insert Grades Cermet £ y o LU O Q > CC Q. RE / GVFR 400-020B GVFR 400B 430-020B 430B r n I 460-020B 460B 490-020B 490B GVFR430B-020B inserts are applicable for sealing groove of G-series For other ring grooving applications, GVFR400B-020B GVFR490B-020B are applicable. Only Right-hand insert is applicable. Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: sfm) Workpiece Material Feed Rate fz (ipt) Cermet MEGACOAT PVD Coated Carbide Carbide TN90 TC40 TC60 PR1225 PR930 KW10 Carbon Steel 0.002-0.006 - 390-660 330-590 260-560 260-490 - Alloy Steel 0.002-0.006 - 390-660 330-590 260-560 260-490 - Mold Steel 0.001 -0.005 - 330-590 260-490 200-490 200-430 - Stainless Steel 0.001 -0.005 - 330-590 260-490 200-490 200-430 - Cast Iron 0.002-0.008 - - - - - 260-490 Non-ferrous Metals 0.002-0.008 - - - - - 330-980 : 1st Recommendation : 2nd Recommendation M220 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
