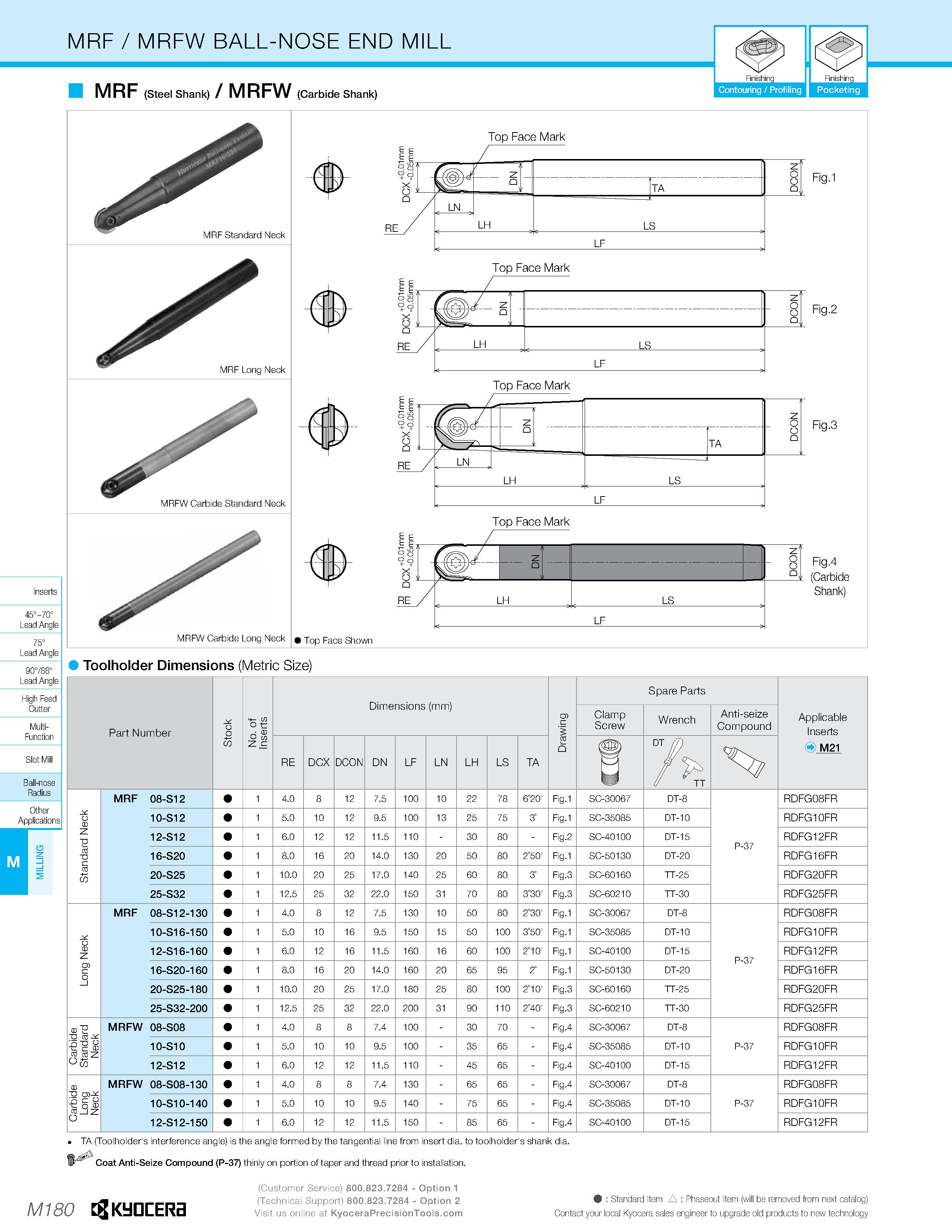

MRF / MRFW BALL-NOSE END MILL MRF Steel Shank) /MRFW Carbide Shank) Finishing Finishing Contouring / Profiling Pocketing 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Toolholder Dimensions (Metric Size) Part Number Stock No. of Inserts Dimensions (mm) Drawing Spare Parts Applicable Inserts (4 M21 Clamp Screw Wrench Anti-seize Compound RE DCX DCON DN LF LN LH LS TA ( ) 7h Standard Neck MRF 08-S12 1 4.0 8 12 7.5 100 10 22 78 6°20‘ Fig.1 SC-30067 DT-8 P-37 RDFG08FR 10-S12 1 5.0 10 12 9.5 100 13 25 75 3° Fig.1 SC-35085 DT-10 RDFG10FR 12-S12 1 6.0 12 12 11.5 110 - 30 80 - Fig.2 SC-40100 DT-15 RDFG12FR 16-S20 1 8.0 16 20 14.0 130 20 50 80 2°50‘ Fig.1 SC-50130 DT-20 RDFG16FR 20-S25 1 10.0 20 25 17.0 140 25 60 80 3° Fig.3 SC-60160 TT-25 RDFG20FR 25-S32 1 12.5 25 32 22.0 150 31 70 80 3°30‘ Fig.3 SC-60210 TT-30 RDFG25FR Long Neck MRF 08-S12-130 1 4.0 8 12 7.5 130 10 50 80 2°30‘ Fig.1 SC-30067 DT-8 P-37 RDFG08FR 10-S16-150 1 5.0 10 16 9.5 150 15 50 100 3°50‘ Fig.1 SC-35085 DT-10 RDFG10FR 12-S16-160 1 6.0 12 16 11.5 160 16 60 100 2°10‘ Fig.1 SC-40100 DT-15 RDFG12FR 16-S20-160 1 8.0 16 20 14.0 160 20 65 95 2° Fig.1 SC-50130 DT-20 RDFG16FR 20-S25-180 1 10.0 20 25 17.0 180 25 80 100 2°10‘ Fig.3 SC-60160 TT-25 RDFG20FR 25-S32-200 1 12.5 25 32 22.0 200 31 90 110 2°40‘ Fig.3 SC-60210 TT-30 RDFG25FR Carbide Standard Neck MRFW 08-S08 1 4.0 8 8 7.4 100 - 30 70 - Fig.4 SC-30067 DT-8 P-37 RDFG08FR 10-S10 1 5.0 10 10 9.5 100 - 35 65 - Fig.4 SC-35085 DT-10 RDFG10FR 12-S12 1 6.0 12 12 11.5 110 - 45 65 - Fig.4 SC-40100 DT-15 RDFG12FR Carbide Long Neck MRFW 08-S08-130 1 4.0 8 8 7.4 130 - 65 65 - Fig.4 SC-30067 DT-8 P-37 RDFG08FR 10-S10-140 1 5.0 10 10 9.5 140 - 75 65 - Fig.4 SC-35085 DT-10 RDFG10FR 12-S12-150 1 6.0 12 12 11.5 150 - 85 65 - Fig.4 SC-40100 DT-15 RDFG12FR Multi- Function B all-nose Radius Other Applications TA (Toolholder's interference angle) is the angle formed by the tangential line from insert dia. to toolholder's shank dia. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. MRF Standard Neck Neck MRFW Carbide Long Neck MRFW Carbide Standard Neck Top Face Shown Top Face Mark Top Face Mark Fig.4 (Carbide Shank) M180 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
