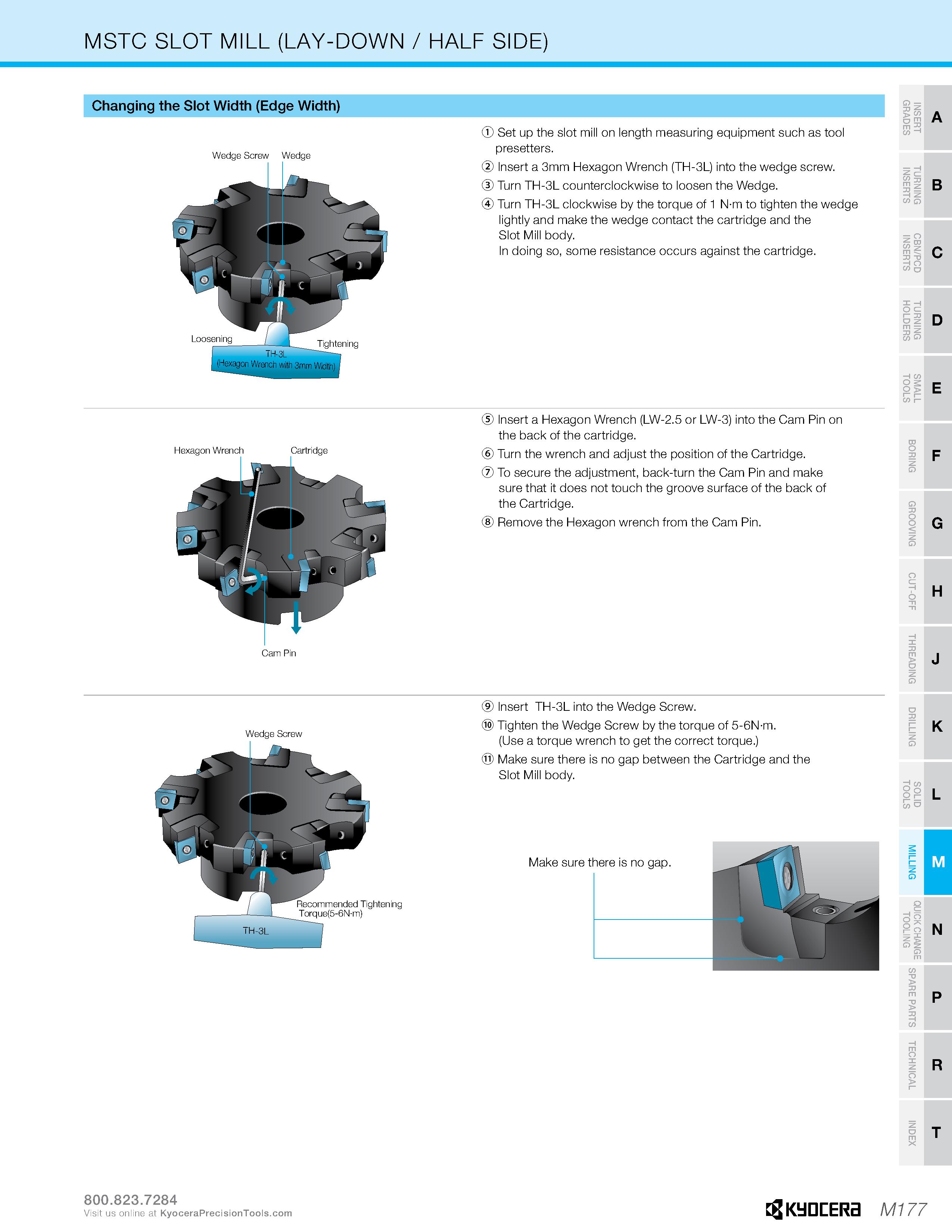

MSTC SLOT MILL (LAY-DOWN / HALF SIDE) Changing the Slot Width (Edge Width) A B C Wedge Screw Wedge Set up the slot mill on length measuring equipment such as tool presetters. Insert a 3mm Hexagon Wrench (TH-3L) into the wedge screw. Turn TH-3L counterclockwise to loosen the Wedge. Turn TH-3L clockwise by the torque of 1 N-m to tighten the wedge lightly and make the wedge contact the cartridge and the Slot Mill body. In doing so, some resistance occurs against the cartridge. DO Tl SD D E Hexagon Wrench Cartridge Insert a Hexagon Wrench (LW-2.5 or LW-3) into the Cam Pin on the back of the cartridge. Turn the wrench and adjust the position of the Cartridge. To secure the adjustment, back-turn the Cam Pin and make sure that it does not touch the groove surface of the back of the Cartridge. Remove the Hexagon wrench from the Cam Pin. G H K Wedge Screw Recommended Tightening Torque(5-6N-m) Insert TH-3L into the Wedge Screw. Tighten the Wedge Screw by the torque of 5-6N-m. (Use a torque wrench to get the correct torque.) Make sure there is no gap between the Cartridge and the Slot Mill body. Make sure there is no gap. N P R T F J L M 8°°.823.7284 Visit us online at
