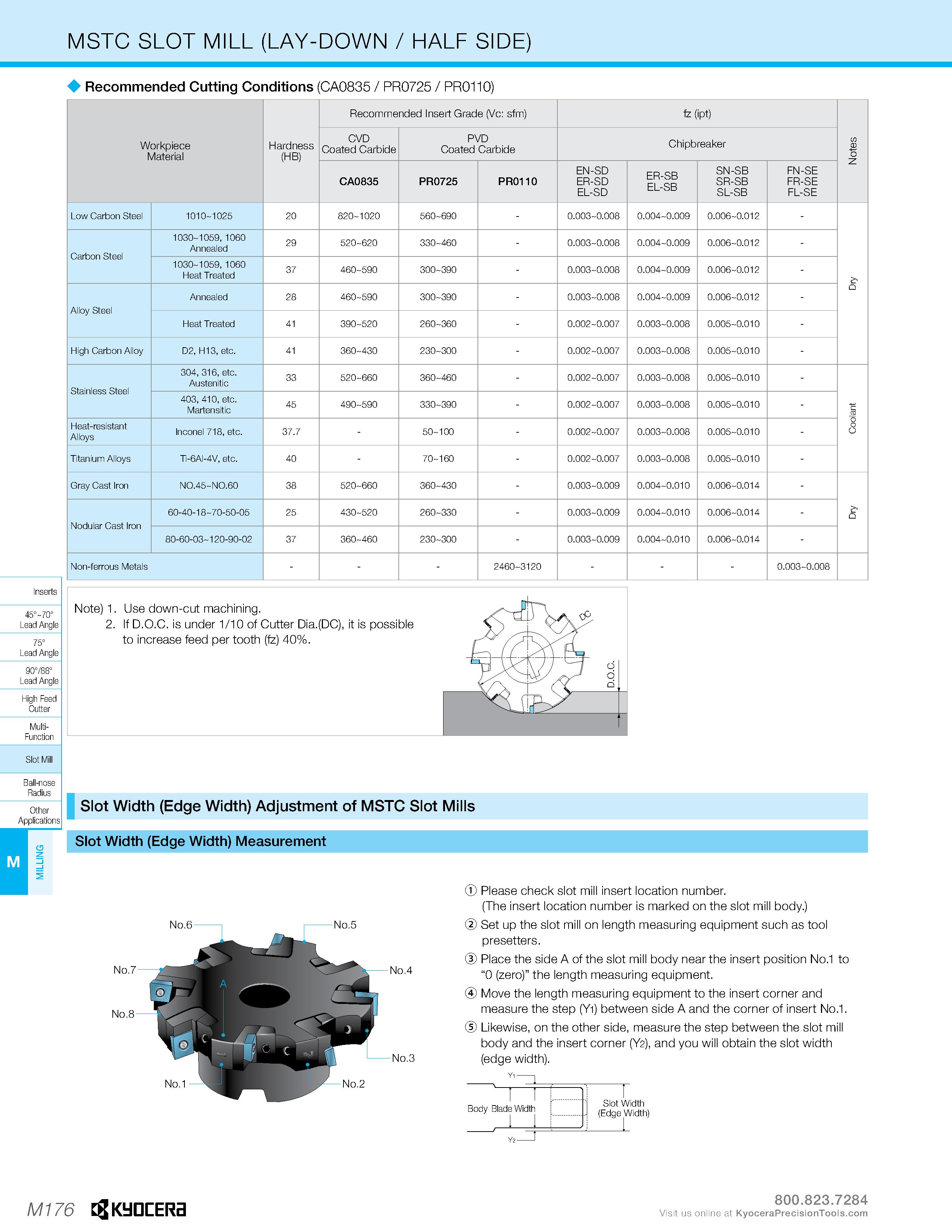

MSTC SLOT MILL (LAY-DOWN / HALF SIDE) Recommended Cutting Conditions (CA0835 / PR0725 / PR0110) Workpiece Material Hardness (HB) Recommended Insert Grade (Vc: sfm) fz (ipt) Notes CVD Coated Carbide PVD Coated Carbide Chipbreaker CA0835 PR0725 PR0110 EN-SD ER-SD EL-SD ER-SB EL-SB SN-SB SR-SB SL-SB FN-SE FR-SE FL-SE Low Carbon Steel 1010 1025 20 820 1020 560 690 0.003 0.008 0.004 0.009 0.006 0.012 ry D Carbon Steel 1030 1059, 1060 Annealed 29 520 620 330 460 0.003 0.008 0.004 0.009 0.006 0.012 1030 1059, 1060 Heat Treated 37 460 590 300 390 0.003 0.008 0.004 0.009 0.006 0.012 Alloy Steel Annealed 28 460 590 300 390 0.003 0.008 0.004 0.009 0.006 0.012 Heat Treated 41 390 520 260 360 0.002 0.007 0.003 0.008 0.005 0.010 High Carbon Alloy D2, H13, etc. 41 360 430 230 300 0.002 0.007 0.003 0.008 0.005 0.010 Stainless Steel 304, 316, etc. Austenitic 33 520 660 360 460 0.002 0.007 0.003 0.008 0.005 0.010 c la ol 403, 410, etc. Martensitic 45 490 590 330 390 0.002 0.007 0.003 0.008 0.005 0.010 Heat-resistant Alloys Inconel 718, etc. 37.7 50 100 0.002 0.007 0.003 0.008 0.005 0.010 Titanium Alloys Ti-6Al-4V, etc. 40 70 160 0.002 0.007 0.003 0.008 0.005 0.010 Gray Cast Iron NO.45 NO.60 38 520 660 360 430 0.003 0.009 0.004 0.010 0.006 0.014 & Q Nodular Cast Iron 60-40-18 70-50-05 25 430 520 260 330 0.003 0.009 0.004 0.010 0.006 0.014 80-60-03 120-90-02 37 360 460 230 300 0.003 0.009 0.004 0.010 0.006 0.014 Non-ferrous Metals 2460 3120 0.003 0.008 45° 70° Lead Angle 75° Lead Angle 90°/88° Lead Angle High Feed Cutter Multi- Function Ball-nose Radius Other Applications Note) 1. Use down-cut machining. 2. If D.O.C. is under 1/10 of Cutter Dia.(DC), it is possible to increase feed per tooth (fz) 40%. Slot Width (Edge Width) Adjustment of MSTC Slot Mills Slot Width (Edge Width) Measurement nserts Slot Mill M No.6 No.5 No.7 No.8 No.4 No.3 Please check slot mill insert location number. (The insert location number is marked on the slot mill body.) Set up the slot mill on length measuring equipment such as tool presetters. Place the side A of the slot mill body near the insert position No.1 to “0 (zero)” the length measuring equipment. Move the length measuring equipment to the insert corner and measure the step (Y1) between side A and the corner of insert No.1. Likewise, on the other side, measure the step between the slot mill body and the insert corner (Y2), and you will obtain the slot width (edge width). Body BladeWidth Slot Width (Edge Width) M176 Kyocera Visit us online at
