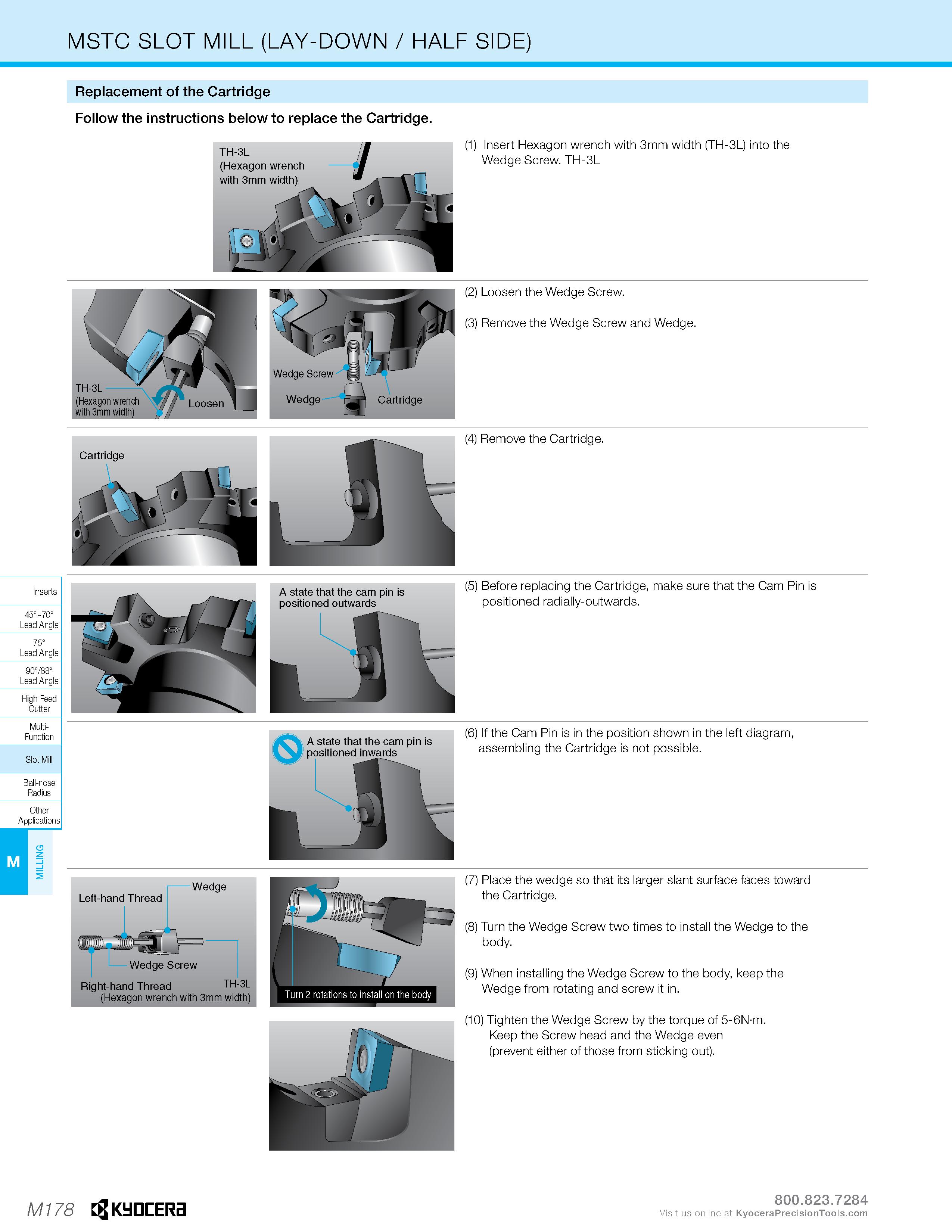

MSTC SLOT MILL (LAY-DOWN / HALF SIDE) Replacement of the Cartridge Follow the instructions below to replace the Cartridge. TH-3L (Hexagon wrench with 3mm width) (1) Insert Hexagon wrench with 3mm width (TH-3L) into the Wedge Screw. TH-3L TH-3L (Hexagon wrench with 3mm width) (2) Loosen the Wedge Screw. (3) Remove the Wedge Screw and Wedge. (4) Remove the Cartridge. 45° 70° Lead Angle 75° Lead Angle 90°/88° Lead Angle High Feed Cutter A state that the cam pin is positioned outwards (5) Before replacing the Cartridge, make sure that the Cam Pin is positioned radially-outwards. Multi- Function Ball-nose Radius Other Applications A state that the cam pin is positioned inwards (6) If the Cam Pin is in the position shown in the left diagram, assembling the Cartridge is not possible. Left-hand Thread Wedge Wedge Screw Right-hand Thread TH-3i (Hexagon wrench with 3mm width) Turn 2 rotations to install on the body (7) Place the wedge so that its larger slant surface faces toward the Cartridge. (8) Turn the Wedge Screw two times to install the Wedge to the body. (9) When installing the Wedge Screw to the body, keep the Wedge from rotating and screw it in. (10) Tighten the Wedge Screw by the torque of 5-6Nm Keep the Screw head and the Wedge even (prevent either of those from sticking out). nserts Slot Mill M M178 Kyocera Visit us online at
