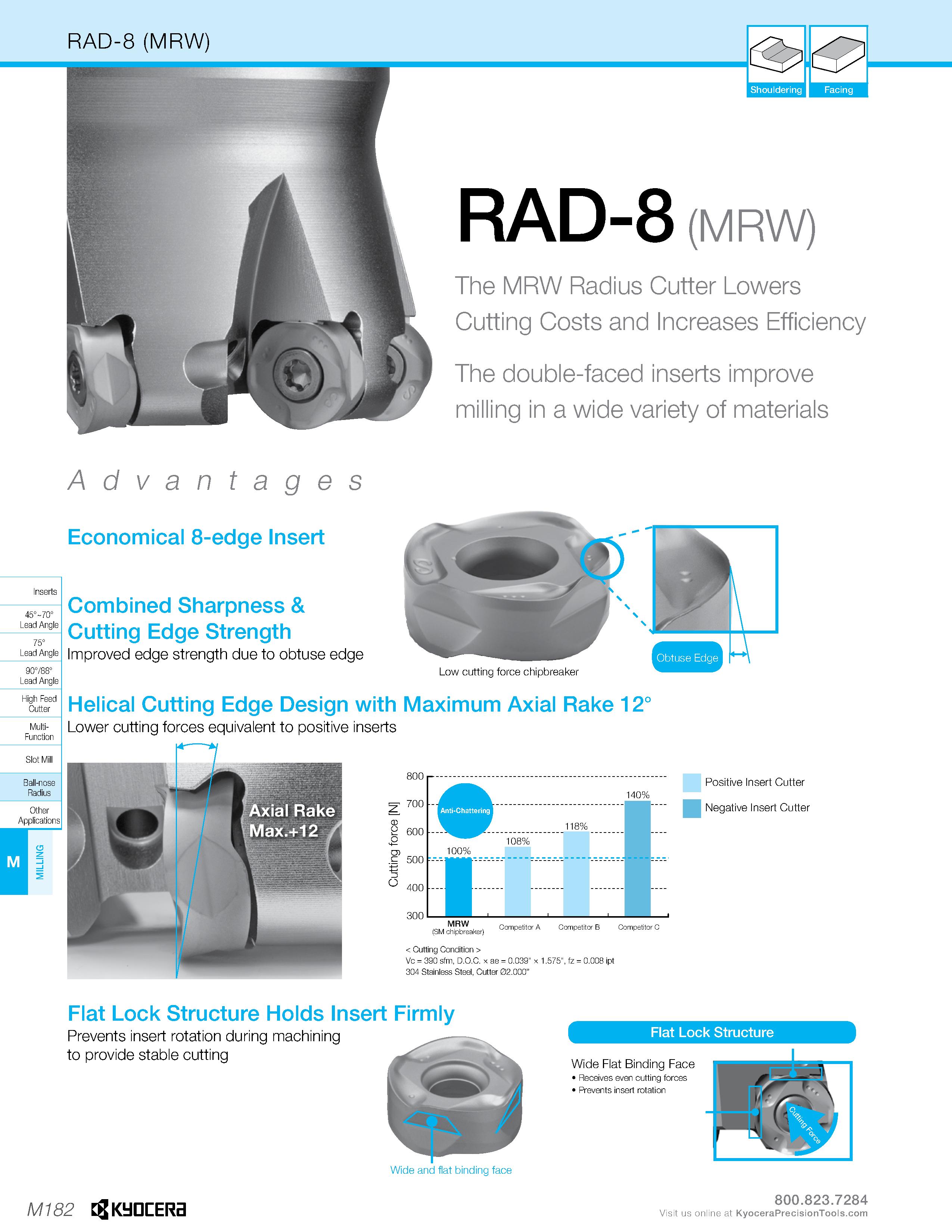

RAD-8 (MRW) Advantages Economical 8-edge Insert RAD-8 (MRW) The MRW Radius Cutter Lowers Cutting Costs and Increases Efficiency The double-faced inserts improve milling in a wide variety of materials 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Combined Sharpness & Cutting Edge Strength Improved edge strength due to obtuse edge Helical Cutting Edge Design with Maximum Axial Rake 12° Lower cutting forces equivalent to positive inserts o 600 400 Positive Insert Cutter Negative Insert Cutter MRW (SM chipbreaker) Competitor A Competitor Cutting Condition > Vc = 390 sfm, D.O.C. xae = 0.039" x 1.575", fz = 0.008 ipt 304 Stainless Steel, Cutter 02.000” Flat Lock Structure Wide Flat Binding Face Receives even cutting forces Prevents insert rotation Low cutting force chipbreaker Flat Lock Structure Holds Insert Firmly Prevents insert rotation during machining to provide stable cutting Wide and flat binding face M182 Kyocera Visit us online at
