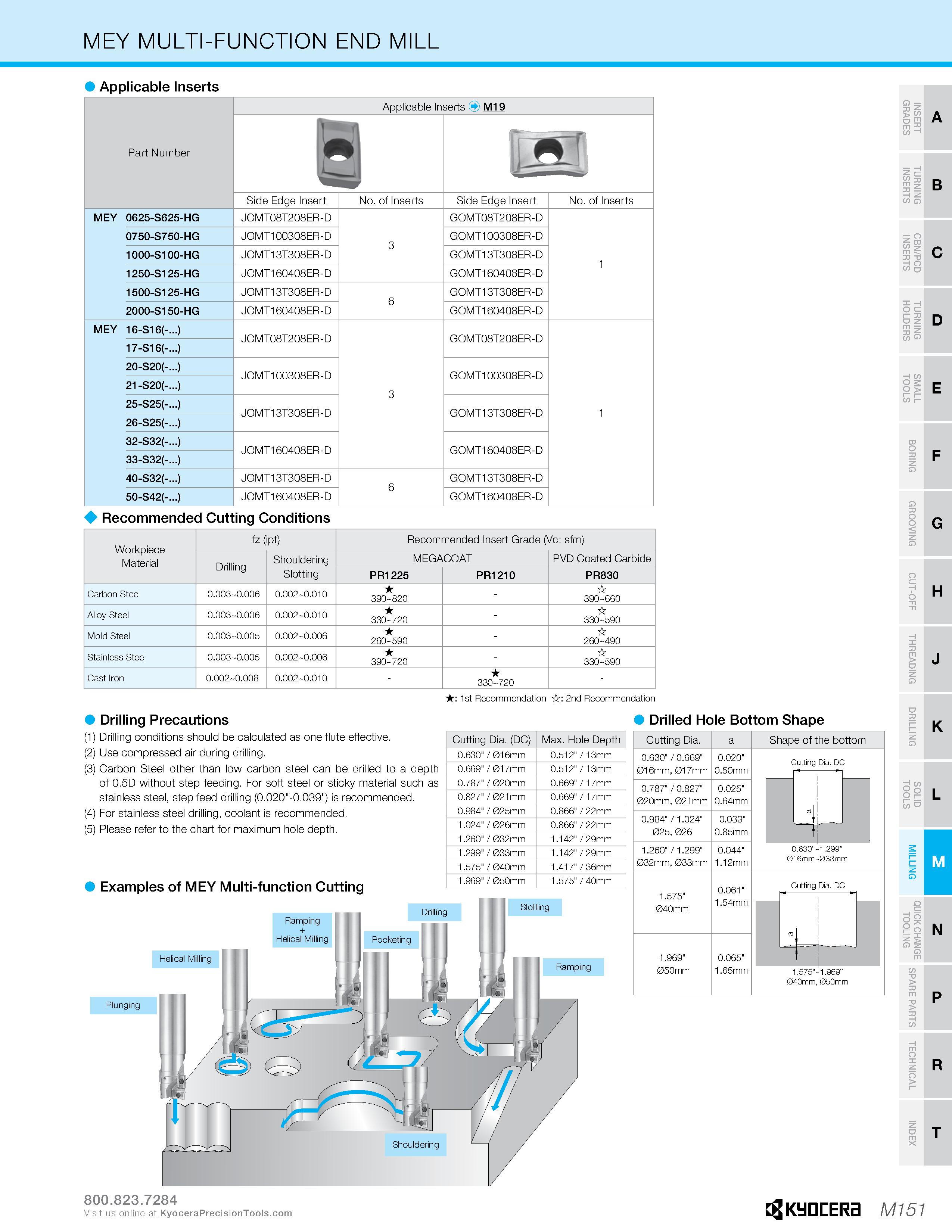

MEY MULTI-FUNCTION END MILL Applicable Inserts Part Number MEY 0625-S625-HG 0750-S750-HG 1000-S100-HG 1250-S125-HG 1500-S125-HG 2000-S150-HG MEY 16-SI 6(- . 17-S16(-.. 20-S20(-.. 21 -S20(-.. 25-S25(-.. 26-S25(-.. 32-S32(-.. 33-S32(-.. 40-S32(-.. 50-S42(-.. 4 Recommended Applicable Inserts M1S Side Edge Insert No. of Inserts JOMT08T208ER-D JOMT100308ER-D JOMT13T308ER-D JOMT160408ER-D JOMT 13T308ER-D JOMT160408ER-D JOMT08T208ER-D JOMT100308ER-D JOMT 13T308ER-D JOMT160408ER-D JOMT 13T308ER-D JOMT160408ER-D Cutting Conditions Side Edge Insert GOMT08T208ER-D GOMT100308ER-D GOMT13T308ER-D GOMT160408ER-D GOMT 13T308ER-D GOMT160408ER-D GOMT08T208ER-D GOMT100308ER-D GOMT 13T308ER-D GOMT160408ER-D GOMT 13T308ER-D GOMT160408ER-D No. of Inserts Workpiece Material fz (ipt) Recommended Insert Grade Vc: sfm) Drilling Shouldering MEGACOAT PVD Coated Carbide Slotting PR1225 PR1210 PR830 Carbon Steel 0.003-0.006 0.002-0.010 390-820 - 390-660 Alloy Steel 0.003-0.006 0.002-0.010 330-720 - 330-590 Mold Steel 0.003-0.005 0.002-0.006 260-590 - 260-490 Stainless Steel 0.003-0.005 0.002-0.006 390-720 - 330-590 Cast Iron 0.002-0.008 0.002-0.010 - 330-720 - Drilling Precautions (1) Drilling conditions should be calculated as one flute effective. (2) Use compressed air during drilling. (3) Carbon Steel other than low carbon steel can be drilled to a depth of 0.5D without step feeding. For soft steel or sticky material such as stainless steel, step feed drilling (0.020"-0.039") is recommended. (4) For stainless steel drilling, coolant is recommended. (5) Please refer to the chart for maximum hole depth. Examples of MEY Multi-function Cutting : 1st Recommendation it'. 2nd Recommendation Drilled Hole Bottom Shape Cutting Dia. (DC) Max. Hole Depth 0.630" / 016mm 0.512" /13mm 0.669" / 017mm 0.512" /13mm 0.787" / 020mm 0.669“ / 17mm 0.827"/021mm 0.669“ / 17mm 0.984" / 025mm 0.866“ / 22mm 1.024" / 026mm 0.866“ / 22mm 1.260" / 032mm 1.142“ /29mm 1.299" / 033mm 1.142“ /29mm 1.575" / 040mm 1.417“ /36mm 1.969" / 050mm 1.575“ / 40mm Plunging Cutting Dia. 0.630" / 0.669" 016mm, 017mm 0.787" / 0.827" 020mm, 021mm 0.984" /1.024" 025, 026 1.260" / 1.299" 032mm, 033mm 1.575" 040mm 1.969" 050mm 0.020" 0.50mm 0.025" 0.64mm 0.033" 0.85mm 0.044" 1.12mm 0.061" 1.54mm 0.065" 1.65mm Shape of the bottom Cutting Dia. DC 0.630’ 1.299" 016mm 033mm Cutting Dia. DC 1.575” 1.£ 040mm, 050mm Visit us online at o m A SS A “ C/> cz I- T> O m = H K N Kyocera M151
