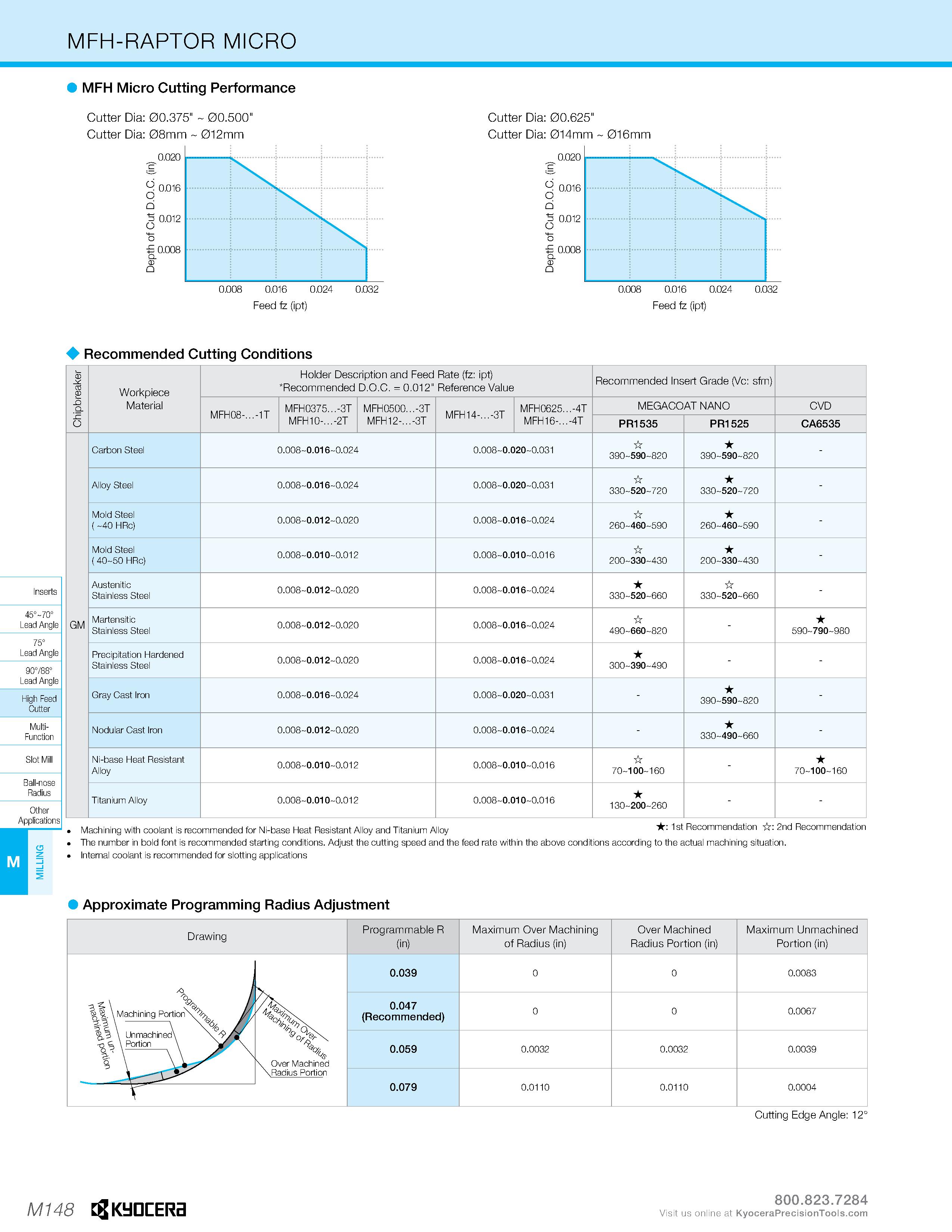

MFH-RAPTOR MICRO MFH Micro Cutting Performance Cutter Dia: 00.375" 00.500" Cutter Dia: 08mm 012mm Feed fz (ipt) Cutter Dia: 00.625" Cutter Dia: 014mm - 016mm 0.016 Feed fz (ipt) 4 Recommended Cutting Conditions Inserts 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function Slot Mill B all-nose Radius Other Applications (5 M Chipbreaker Workpiece Material Holder Description and Feed Rate (fz: ipt) Recommended D.O.C. = 0.012" Reference Value Recommended Insert Grade (Vc: sfm) MFH08-...-1T MFH0375...-3T MFH10-...-2T MFH0500...-3T MFH12-...-3T MFH14-...-3T MFH0625...-4T MFH16-...-4T MEGACOAT NANO CVD PR1535 PR1525 CA6535 GM Carbon Steel 0.008-0.016-0.024 0.008-0.020-0.031 390-590-820 390-590-820 - Alloy Steel 0.008-0.016-0.024 0.008-0.020-0.031 330-520-720 330-520-720 - Mold Steel (-40 HRc) 0.008-0.012-0.020 0.008-0.016-0.024 260-460-590 260-460-590 - Mold Steel (40-50 HRc) 0.008-0.010-0.012 0.008-0.010-0.016 200-330-430 200-330-430 - Austen itic Stainless Steel 0.008-0.012-0.020 0.008-0.016-0.024 330-520-660 330-520-660 - Martensitic Stainless Steel 0.008-0.012-0.020 0.008-0.016-0.024 490-660-820 - 590-790-980 Precipitation Hardened Stainless Steel 0.008-0.012-0.020 0.008-0.016-0.024 300-390-490 - - Gray Cast Iron 0.008-0.016-0.024 0.008-0.020-0.031 - 390-590-820 - Nodular Cast Iron 0.008-0.012-0.020 0.008-0.016-0.024 - 330-490-660 - Ni-base Heat Resistant Alloy 0.008-0.010-0.012 0.008-0.010-0.016 70-100-160 - 70-100-160 Titanium Alloy 0.008-0.010-0.012 0.008-0.010-0.016 130-200-260 - - Machining with coolant is recommended for Ni-base Heat Resistant Alloy and Titanium Alloy Recommendation : 2nd Recommendation The number in bold font is recommended starting conditions. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. Internal coolant is recommended for slotting applications Approximate Programming Radius Adjustment Drawing Programmable R (in) Maximum Over Machining of Radius (in) Over Machined Radius Portion (in) Maximum Unmachined Portion (in) X) / 3 £ \ %, M \ Machining PortionX'fx M/ \ -v \% M C- \ \ \ /G>/. // 3 \ Unmachined\ \'9MF o & \ Portion \ \ \ \ \ 8 v % \ Over Machined \Radius Portion 0.039 0 0 0.0083 0.047 (Recommended) 0 0 0.0067 0.059 0.0032 0.0032 0.0039 0.079 0.0110 0.0110 0.0004 Cutting Edge Angle: 12° M148 Kyocera Visit us online at
