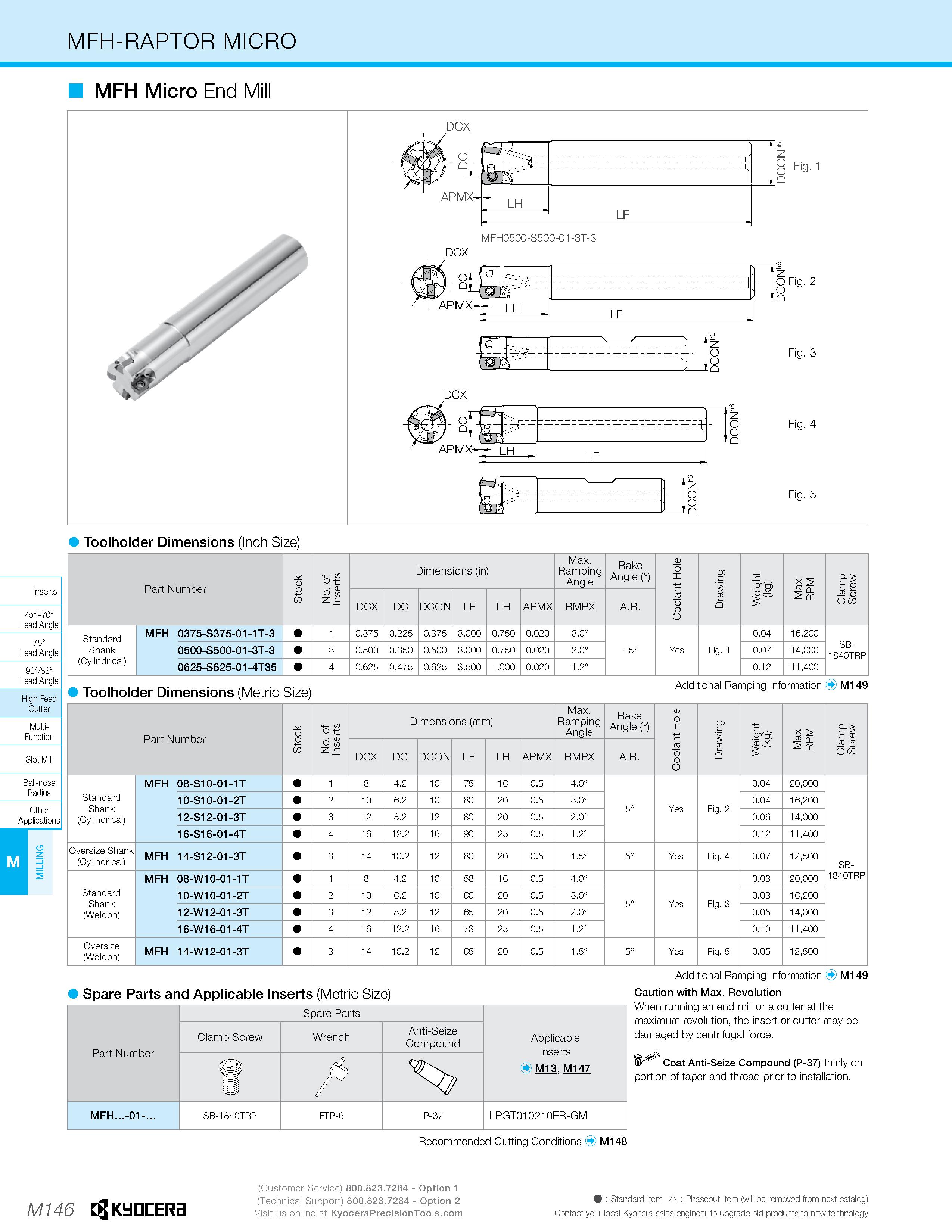

1116 Каталог KYOCERA 2019 Режущий инструмент для металлообработки на станках Стр.M146

Каталог KYOCERA 2019 Режущий инструмент по металлу Стр. M146 1116 Lab2u

MFH-RAPTOR MICRO MFH Micro End DCX g Fig. 1 DCX DCX O „o Fig.4 Fig. 5 Toolholder Dimensions (Inch Size) Part Number Stock No. of Inserts Dimensions (in) Max. Ramping Angle Rake Angle (°) Coolant Hole Drawing Weight (kg) Max RPM Clamp Screw DCX DC DCON LF LH APMX RMPX A.R. MFH 0375-S375-01 -1T-3 1 0.375 0.225 0.375 3.000 0.750 0.020 3.0° 0.04 16,200 Shank 0500-S500-01-3T-3 3 0.500 0.350 0.500 3.000 0.750 0.020 2.0° +5° Yes Fig. 1 0.07 14,000 SB- 1840TRP (Cylindrical) 0625-S625-01-4T35 4 0.625 0.475 0.625 3.500 1.000 0.020 1.2° 0.12 11,400 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Toolholder Dimensions (Metric Size) Additional Ramping Information M149 Part Number o No. of Inserts Dimensions (mm) Max. Ramping Angle Rake Angle (°) 0 o X Drawing £ Max RPM E 0 DCX DC DCON LF LH APMX RMPX A.R. o CD 5 js o OCO MFH 08-S10-01-1T 1 8 4.2 10 75 16 0.5 4.0° 0.04 20,000 Standard Shank (Cylindrical) 1 0-S10-01-2T 2 10 6.2 10 80 20 0.5 3.0° 5° Yes Fig.2 0.04 16,200 12-S12-01-3T 3 12 8.2 12 80 20 0.5 2.0° 0.06 14,000 1 6-S16-01-4T 4 16 12.2 16 90 25 0.5 1.2° 0.12 11,400 Oversize Shank (Cylindrical) MFH 1 4-S12-01-3T 3 14 10.2 12 80 20 0.5 1.5° 5° Yes Fig.4 0.07 12,500 SB- MFH 08-W10-01-1T 1 8 4.2 10 58 16 0.5 4.0° 0.03 20,000 1840TRP Standard Shank (Weldon) 1 0-W10-01-2T 2 10 6.2 10 60 20 0.5 3.0° 5° Yes Fig.3 0.03 16,200 1 2-W12-01-3T 3 12 8.2 12 65 20 0.5 2.0° 0.05 14,000 1 6-W16-01-4T 4 16 12.2 16 73 25 0.5 1.2° 0.10 11,400 Oversize (Weldon) MFH 1 4-W12-01-3T 3 14 10.2 12 65 20 0.5 1.5° 5° Yes Fig. 5 0.05 12,500 Multi- Function B all-nose Radius Other Applications Spare Parts and Applicable Inserts (Metric Size) Part Number Spare Parts Applicable Inserts M>) M13. M147 Clamp Screw Wrench Anti-Seize Compound u / MFH...-01-... SB-1840TRP FTP-6 P-37 LPGT010210ER-GM Additional Ramping Information M149 Caution with Max. Revolution When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. Recommended Cutting Conditions M148 M146 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
