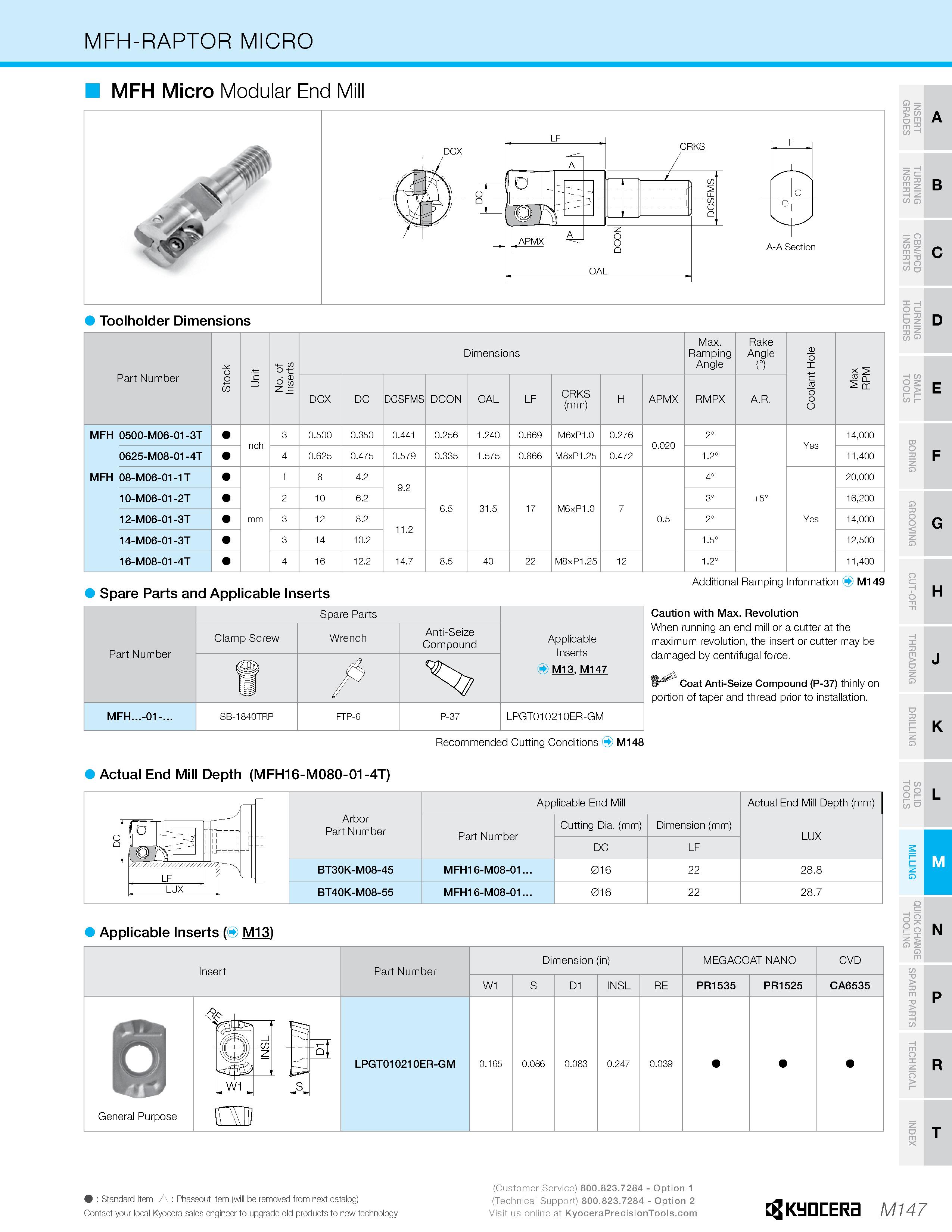

MFH-RAPTOR MICRO MFH Micro Modular End £ 5 I C/> Q B Toolholder Dimensions Part Number Stock Unit No. of Inserts Dimensions Max. Ramping Angle Rake Angle 0 Coolant Hole Max RPM DCX DC DCSFMS DCON OAL LF CRKS (mm) H APMX RMPX A.R. MFH 0500-M06-01-3T inch 3 0.500 0.350 0.441 0.256 1.240 0.669 M6xP1.0 0.276 0.020 2° +5° Yes 14,000 0625-M08-01-4T 4 0.625 0.475 0.579 0.335 1.575 0.866 M8xP1.25 0.472 1.2° 11,400 MFH 08-M06-01-1T mm 1 8 4.2 9.2 6.5 31.5 17 M6xP1.0 7 0.5 4° Yes 20,000 10-M06-01-2T 2 10 6.2 3° 16,200 12-M06-01-3T 3 12 8.2 11.2 2° 14,000 14-M06-01-3T 3 14 10.2 1.5° 12,500 16-M08-01-4T 4 16 12.2 14.7 8.5 40 22 M8xP1.25 12 1.2° 11,400 T> u S8 O cz I- T> O m = W C5 O s o > o 33 z Q o cz -H o > o z. Q Spare Parts and Applicable Inserts Part Number Spare Parts Applicable Inserts ) M13. M147 Clamp Screw Wrench Anti-Seize Compound fH MFH...-01-... SB-1840TRP FTP-6 P-37 LPGT01021 OER-GM Additional Ramping Information M149 Caution with Max. Revolution When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. H K Recommended Cutting Conditions M148 Actual End Mill Depth (MFH16-M080-01-4T) Applicable End Mill Actual End Mill Depth (mm) ° iz Cf> Arbor Part Number Part Number Cutting Dia. (mm) Dimension (mm) LUX DC LF BT30K-M08-45 MFH1 6-M08-01... 016 22 28.8 I- z o BT40K-M08-55 MFH1 6-M08-01... 016 22 28.7 Applicable Inserts ( M13) ip N Insert Part Number Dimension (in) W1 D1 INSL RE MEGACOAT NANO CVD PR1535 PR1525 CA6535 General Purpose cff& l -CO z W1 \3L LPGT01021OER-GM : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M147
