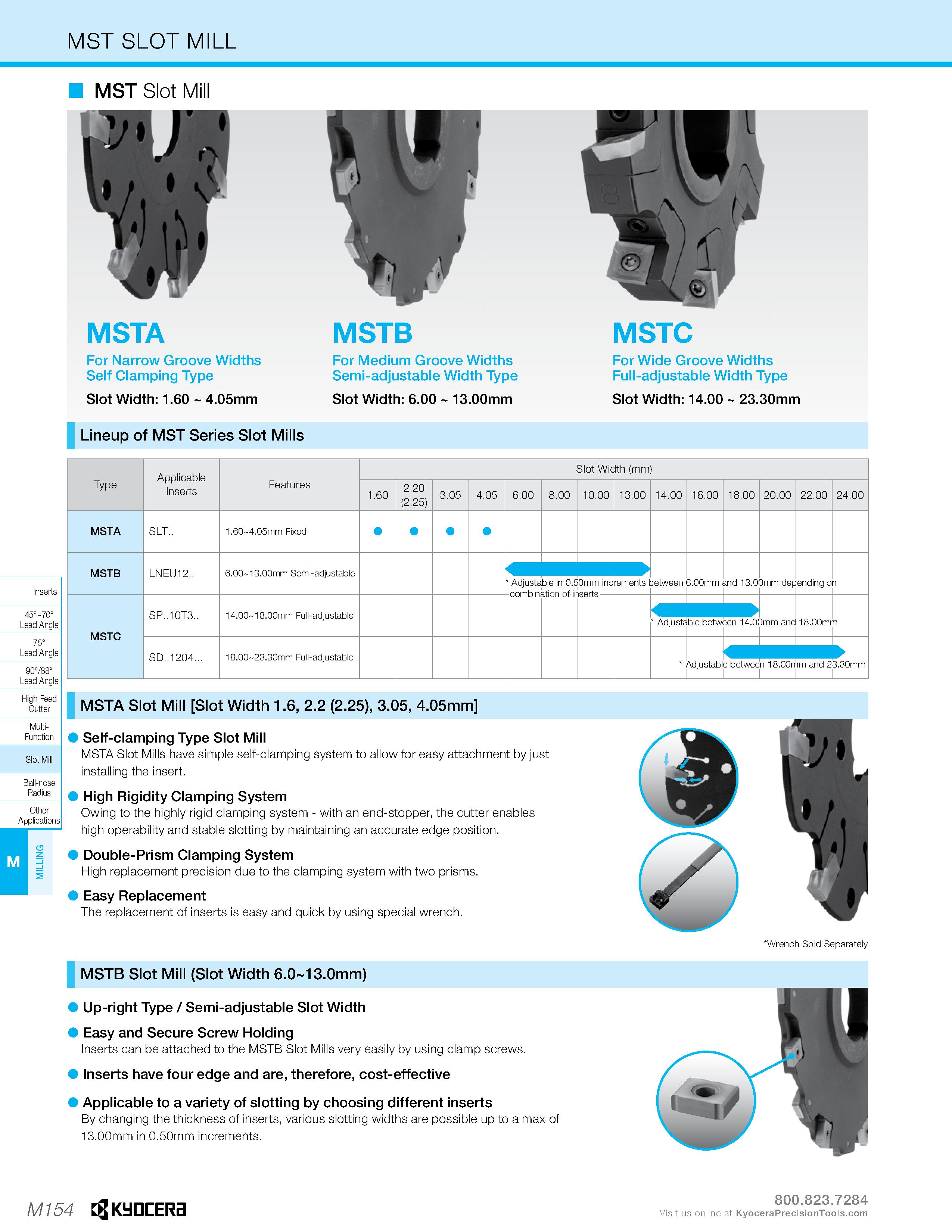

MST SLOT MILL MST Slot Mill MSTA For Narrow Groove Widths Self Clamping Type Slot Width: 1.60 4.05mm MSTB For Medium Groove Widths Semi-adjustable Width Type Slot Width: 6.00 13.00mm MSTC For Wide Groove Widths Full-adjustable Width Type Slot Width: 14.00 23.30mm Lineup of MST Series Slot Mills Type Applicable Inserts Features Slot Width (mm) 1.60 2.20 (2.25) 3.05 4.05 6.00 8.00 10.00 13.00 14.00 16.00 18.00 20.00 22.00 24.00 MSTA SLT.. 1.60 4.05mm Fixed MSTB LNEU12.. 6.00 13.00mm Semi-adjustable Adjusta ble in 0.5 ation of ir 0mm inc rements between 6.00mm and 13.0 0mm dep ending o n MSTC SP..10T3.. 14.00 18.00mm Full-adjustable Adjusts ble betw sen 14.0 0mm anc 18.00m m SD..1204... 18.00 23.30mm Full-adjustable Adjustab e between 18.00mm and 23.30mm 1 1 1 45° 70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function Ball-nose Radius Other Applications MSTA Slot Mill Slot Width 1.6, 2.2 (2.25), 3.05, 4.05mm Self-clamping Type Slot Mill MSTA Slot Mills have simple self-clamping system to allow for easy attachment by just installing the insert. High Rigidity Clamping System Owing to the highly rigid clamping system - with an end-stopper, the cutter enables high operability and stable slotting by maintaining an accurate edge position. Double-Prism Clamping System High replacement precision due to the clamping system with two prisms. Easy Replacement The replacement of inserts is easy and quick by using special wrench. MSTB Slot Mill (Slot Width 6.0 13.0mm) Up-right Type / Semi-adjustable Slot Width Easy and Secure Screw Holding Inserts can be attached to the MSTB Slot Mills very easily by using clamp screws. Inserts have four edge and are, therefore, cost-effective Applicable to a variety of slotting by choosing different inserts By changing the thickness of inserts, various slotting widths are possible up to a max of 13.00mm in 0.50mm increments. Wrench Sold Separately M154 Kyocera Visit us online at nserts Slot Mill M
