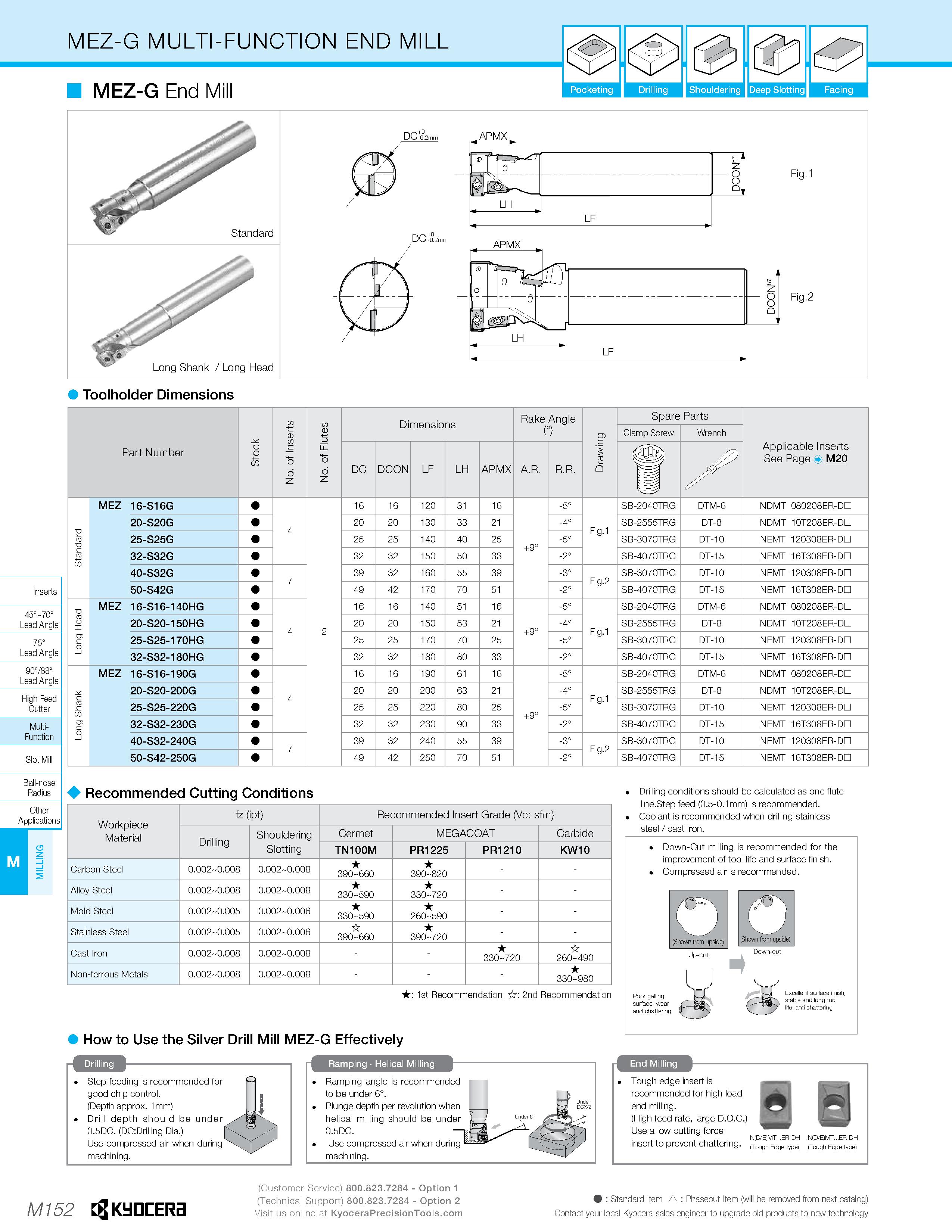

MEZ-G MULTI-FUNCTION END MILL MEZ-G End 0 Pocketing Drilling Shouldering Deep Slotting Facing Standard Long Shank / Long Head APMX n o fe P pip Li- O' H Toolholder Dimensions 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function Part Number Stock No. of Inserts No. of Flutes Dimensions Rake Angle 0 Drawing Spare Parts Applicable Inserts See Page M20 Clamp Screw Wrench DC DCON LF LH APMX A.R. R.R. Hi Standard MEZ 16-S16G 4 2 16 16 120 31 16 +9° -5° Fig-1 SB-2040TRG DTM-6 NDMT 080208ER-DD 20-S20G 20 20 130 33 21 -4° SB-2555TRG DT-8 NDMT 10T208ER-DD 25-S25G 25 25 140 40 25 -5° SB-3070TRG DT-10 NEMT 120308ER-DD 32-S32G 32 32 150 50 33 -2° SB-4070TRG DT-15 NEMT 16T308ER-DD 40-S32G 7 39 32 160 55 39 -3° Fig.2 SB-3070TRG DT-10 NEMT 120308ER-DD 50-S42G 49 42 170 70 51 -2° SB-4070TRG DT-15 NEMT 16T308ER-DD Long Head MEZ 16-S16-140HG 4 16 16 140 51 16 +9° -5° Fig-1 SB-2040TRG DTM-6 NDMT 080208ER-DD 20-S20-150HG 20 20 150 53 21 -4° SB-2555TRG DT-8 NDMT 10T208ER-DD 25-S25-170HG 25 25 170 70 25 -5° SB-3070TRG DT-10 NEMT 120308ER-DD 32-S32-180HG 32 32 180 80 33 -2° SB-4070TRG DT-15 NEMT 16T308ER-DD Long Shank MEZ 16-S16-190G 4 16 16 190 61 16 +9° -5° Fig-1 SB-2040TRG DTM-6 NDMT 080208ER-DD 20-S20-200G 20 20 200 63 21 -4° SB-2555TRG DT-8 NDMT 10T208ER-DD 25-S25-220G 25 25 220 80 25 -5° SB-3070TRG DT-10 NEMT 120308ER-DD 32-S32-230G 32 32 230 90 33 -2° SB-4070TRG DT-15 NEMT 16T308ER-DD 40-S32-240G 7 39 32 240 55 39 -3° Fig.2 SB-3070TRG DT-10 NEMT 120308ER-DD 50-S42-250G 49 42 250 70 51 -2° SB-4070TRG DT-15 NEMT 16T308ER-DD B all-nose Radius Other Applications 4 Recommended Cutting Conditions Workpiece Material fz (ipt) Recommended Insert Grade (Vc: sfm) Drilling Shouldering Slotting Cermet MEGACOAT Carbide TN100M PR1225 PR1210 KW10 Carbon Steel 0.002-0.008 0.002-0.008 390-660 390-820 - - Alloy Steel 0.002-0.008 0.002-0.008 330-590 330-720 - - Mold Steel 0.002-0.005 0.002-0.006 330-590 260-590 - - Stainless Steel 0.002-0.005 0.002-0.006 390-660 390-720 - - Cast Iron 0.002-0.008 0.002-0.008 - - 330-720 260-490 Non-ferrous Metals 0.002-0.008 0.002-0.008 - - - 330-980 Drilling conditions should be calculated as one flute line.Step feed (0.5-0.1 mm) is recommended. Coolant is recommended when drilling stainless steel / cast iron. Down-Cut milling is recommended for the improvement of tool life and surface finish. Compressed air is recommended. : 1st Recommendation : 2nd Recommendation How to Use the Silver Drill Mill MEZ-G Effectively Step feeding is recommended for good chip control. (Depth approx. 1 mm) Drill depth should be under 0.5DC. (DC:Drilling Dia.) Use compressed air when during machining. Ramping Helical Milling Tough edge insert is recommended for high load end milling. (High feed rate, large D.O.C/ Use a low cutting force insert to prevent chattering. N(D/E)MT... ER-DH N(D/E)MT.. .ER-DH (Tough Edge type) (Tough Edge type) Ramping angle is recommended to be under 6°. Plunge depth per revolution when helical milling should be under 0.5DC. Use compressed air when during machining. M152 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
