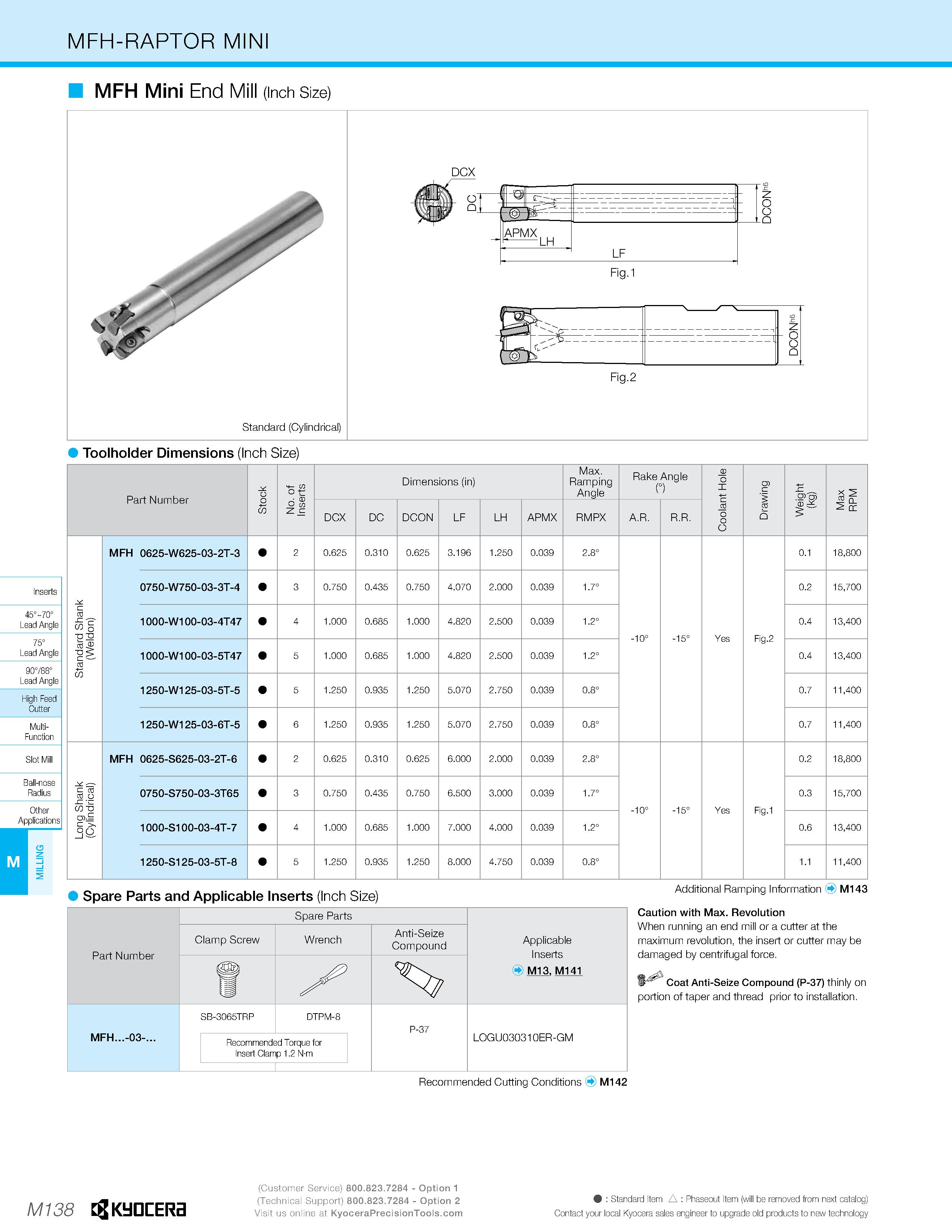

MFH-RAPTOR MINI MFH Mini End Mill (inch Size) Toolholder Dimensions (Inch Size) 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function Part Number o No. of Inserts Dimensions (in) Max. Ramping Angle Rake Angle (°) 0 o X Drawing £ Max RPM DCX DC DCON LF LH APMX RMPX A.R. R.R. o 0 5 MFH 0625-W625-03-2T-3 2 0.625 0.310 0.625 3.196 1.250 0.039 2.8° 0.1 18,800 0750-W750-03-3T-4 3 0.750 0.435 0.750 4.070 2.000 0.039 1.7° 0.2 15,700 £Z W TD 0 1000-W100-03-4T47 4 1.000 0.685 1.000 4.820 2.500 0.039 1.2° -10° -15° Yes Fig.2 0.4 13,400 cd. +S 1000-W100-03-5T47 5 1.000 0.685 1.000 4.820 2.500 0.039 1.2° 0.4 13,400 1250-W125-03-5T-5 5 1.250 0.935 1.250 5.070 2.750 0.039 o 0.7 11,400 1250-W125-03-6T-5 6 1.250 0.935 1.250 5.070 2.750 0.039 o 0.7 11,400 MFH 0625-S625-03-2T-6 2 0.625 0.310 0.625 6.000 2.000 0.039 2.8° 0.2 18,800 £= O -C 0750-S750-03-3T65 3 0.750 0.435 0.750 6.500 3.000 0.039 1.7° -10° -15° Yes Fig.1 0.3 15,700 05 50 1000-S100-03-4T -7 4 1.000 0.685 1.000 7.000 4.000 0.039 1.2° 0.6 13,400 1250-S125-03-5T -8 5 1.250 0.935 1.250 8.000 4.750 0.039 o 1.1 11,400 B all-nose Radius Other Applications Spare Parts and Applicable Inserts (Inch Size) Part Number MFH...-03-... Spare Parts Clamp Screw Wrench Recommended Torque for Insert Clamp 1.2 N-m Anti-Seize Compound Applicable Inserts M M13. M141 LOGU030310ER-GM Additional Ramping Information M143 Caution with Max. Revolution When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. Recommended Cutting Conditions M142 M138 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
