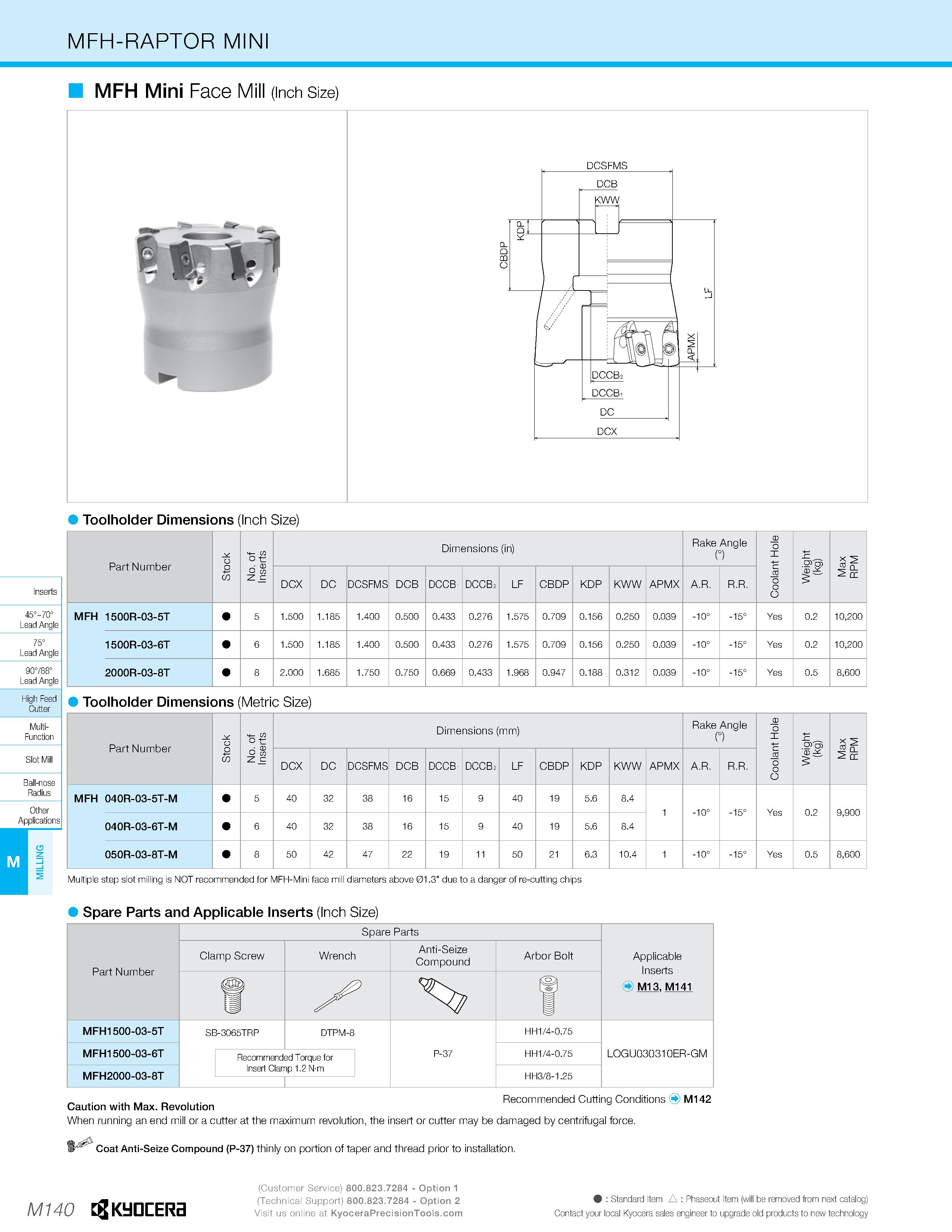

MFH-RAPTOR MINI MFH Mini Face Mill (inch Size) DCSFMS Toolholder Dimensions (Inch Size) Part Number Stock No. of Inserts Dimensions (in) Rake Angle n Coolant Hole Weight (kg) Max RPM DCX DC DCSFMS DCB DCCB DCCB LF CBDP KDP KWW APMX A.R. R.R. MFH 1500R-03-5T 5 1.500 1.185 1.400 0.500 0.433 0.276 1.575 0.709 0.156 0.250 0.039 -10° -15° Yes 0.2 10,200 1500R-03-6T 6 1.500 1.185 1.400 0.500 0.433 0.276 1.575 0.709 0.156 0.250 0.039 -10° -15° Yes 0.2 10,200 2000R-03-8T 8 2.000 1.685 1.750 0.750 0.669 0.433 1.968 0.947 0.188 0.312 0.039 -10° -15° Yes 0.5 8,600 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Toolholder Dimensions (Metric Size) Part Number Stock No. of Inserts Dimensions (mm) Rake Angle n Coolant Hole Weight (kg) Max RPM DCX DC DCSFMS DCB DCCB dccb2 LF CBDP KDP KWW APMX A.R. R.R. MFH 040R-03-5T-M 5 40 32 38 16 15 9 40 19 5.6 8.4 1 -10° -15° Yes 0.2 9,900 040R-03-6T-M 6 40 32 38 16 15 9 40 19 5.6 8.4 050R-03-8T-M 8 50 42 47 22 19 11 50 21 6.3 10.4 1 -10° -15° Yes 0.5 8,600 Multi- Function B all-nose Radius Other Applications Multiple step slot milling is NOT recommended for MFH-Mini face mill diameters above 01.3" due to a danger of re-cutting chips Spare Parts and Applicable Inserts (Inch Size) Recommended Cutting Conditions M142 Caution with Max. Revolution When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. M140 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
