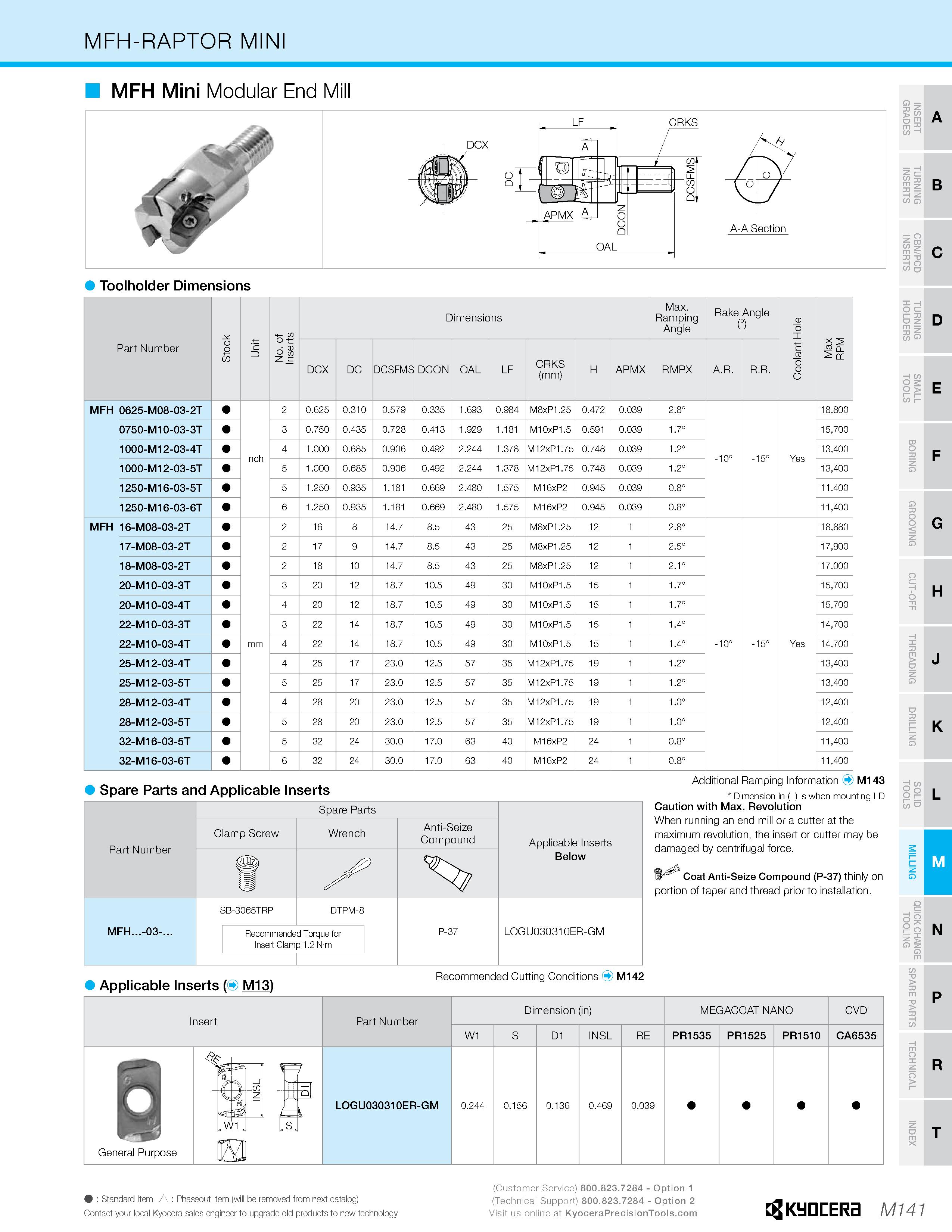

MFH-RAPTOR MINI MFH Mini Modular End o > £ o g m 2 c/> C/> Q B Toolholder Dimensions H- Dimensions Max. Ramping Angle Rake Angle n 0 o X Max RPM Part Number Unit o w Z c DCX DC DCSFMS DCON OAL LF CRKS (mm) H APMX RMPX A.R. R.R. c o MFH 0625-M08-03-2T 2 0.625 0.310 0.579 0.335 1.693 0.984 M8xP1.25 0.472 0.039 2.8° 18,800 0750-M10-03-3T 3 0.750 0.435 0.728 0.413 1.929 1.181 M10xP1.5 0.591 0.039 1.7° 15,700 1000-M12-03-4T inch 4 1.000 0.685 0.906 0.492 2.244 1.378 M12xP1.75 0.748 0.039 1.2° -10° -15° Yes 13,400 1000-M12-03-5T 5 1.000 0.685 0.906 0.492 2.244 1.378 M12xP1.75 0.748 0.039 1.2° 13,400 1250-M16-03-5T 5 1.250 0.935 1.181 0.669 2.480 1.575 M16xP2 0.945 0.039 o 11,400 1250-M16-03-6T 6 1.250 0.935 1.181 0.669 2.480 1.575 M16xP2 0.945 0.039 o 11,400 MFH 16-M08-03-2T 2 16 8 14.7 8.5 43 25 M8xP1.25 12 1 2.8° 18,880 17-M08-03-2T 2 17 9 14.7 8.5 43 25 M8xP1.25 12 1 2.5° 17,900 18-M08-03-2T 2 18 10 14.7 8.5 43 25 M8xP1.25 12 1 2.1° 17,000 20-M10-03-3T 3 20 12 18.7 10.5 49 30 M10xP1.5 15 1 1.7° 15,700 20-M10-03-4T 4 20 12 18.7 10.5 49 30 M10xP1.5 15 1 1.7° 15,700 22-M10-03-3T 3 22 14 18.7 10.5 49 30 M10xP1.5 15 1 1.4° 14,700 22-M10-03-4T mm 4 22 14 18.7 10.5 49 30 M10xP1.5 15 1 1.4° -10° -15° Yes 14,700 25-M12-03-4T 4 25 17 23.0 12.5 57 35 M12xP1.75 19 1 1.2° 13,400 25-M12-03-5T 5 25 17 23.0 12.5 57 35 M12xP1.75 19 1 1.2° 13,400 28-M12-03-4T 4 28 20 23.0 12.5 57 35 M12xP1.75 19 1 1.0° 12,400 28-M12-03-5T 5 28 20 23.0 12.5 57 35 M12xP1.75 19 1 1.0° 12,400 32-M16-03-5T 5 32 24 30.0 17.0 63 40 M16xP2 24 1 o 11,400 32-M16-03-6T 6 32 24 30.0 17.0 63 40 M16xP2 24 1 o 11,400 Spare Parts and Applicable Inserts Part Number MFH...-03-... Clamp Screw Spare Parts Wrench Recommended Torque for Insert Clamp 1.2 N-m Anti-Seize Compound Applicable Inserts Below Applicable Inserts ( M13) LOGU03031OER-GM Recommended Cutting Conditions M142 Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. O cz I- T> O m = o 33 z Q o cz -H o > o Q Additional Ramping Information M143 Dimension in ( ) is when mounting LD Caution with Max. Revolution When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. H K R N Insert Part Number Dimension (in) W1 D1 INSL RE MEGACOAT NANO PR1535 PR1525 PR1510 CVD CA6535 % W1 LQGU03031 OER-GM : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera Ml 41
