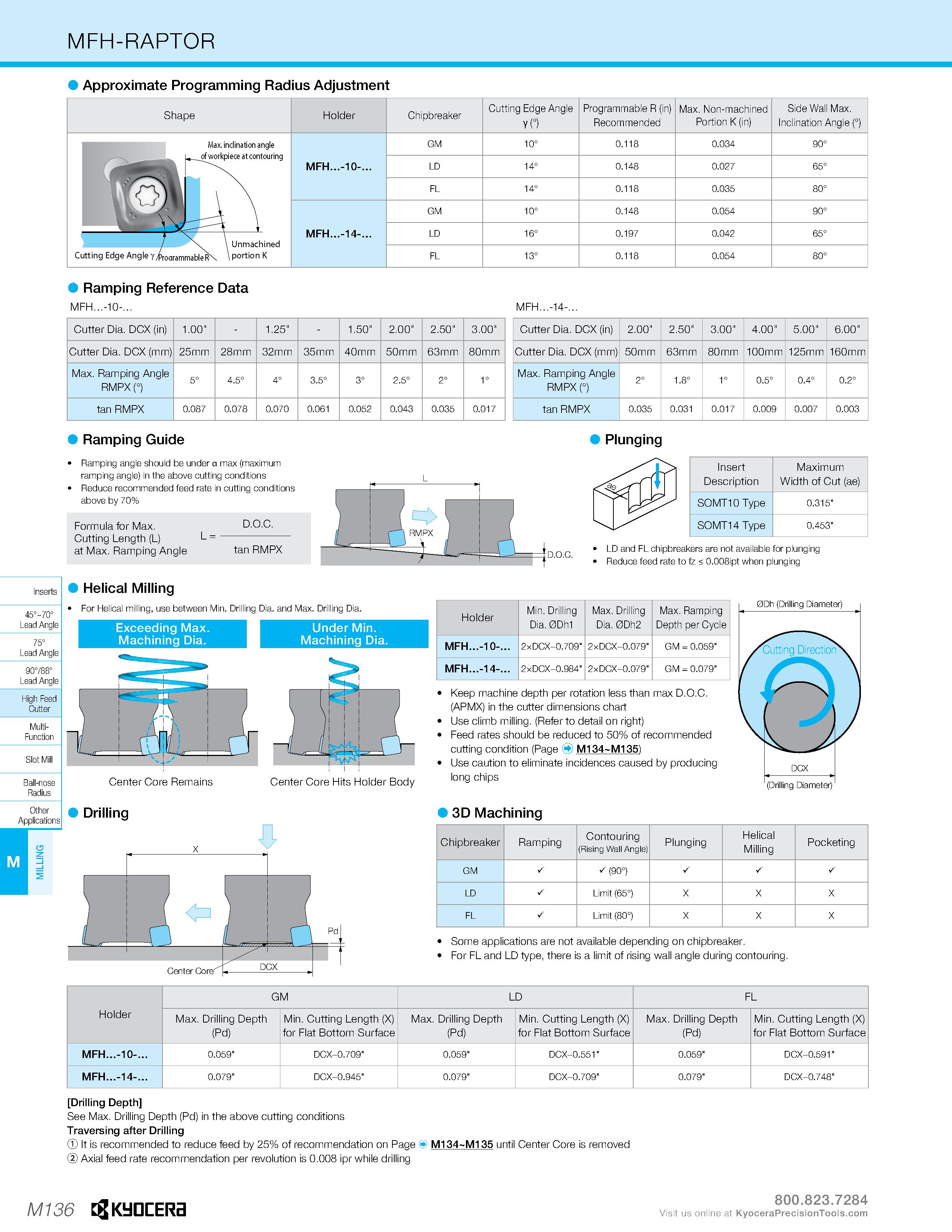

MFH-RAPTOR Approximate Programming Radius Adjustment Shape Holder Chipbreaker Cutting Edge Angle V (°) Programmable R (in) Recommended Max. Non-machined Portion K (in) Side Wall Max. Inclination Angle (°) Max. inclination angle , ofworkpiece at contouring GM 10° 0.118 0.034 90° MFH...-10-... LD 14° 0.148 0.027 65° w/ , \ FL 14° 0.118 0.035 80° \ GM 10° 0.148 0.054 90° \ Unmachined mableX \porti°n K MFH...-14-... LD 16° 0.197 0.042 65° Cutting Edge Angle y /Program FL 13° 0.118 0.054 80° Ramping Reference Data MFH...-10-... MFH...-14-... Cutter Dia. DCX (in) 2.00" 2.50" 3.00" 4.00" 5.00" 6.00" Cutter Dia. DCX (mm) 50mm 63mm 80mm 100mm 125mm 160mm Max. Ramping Angle RMPX (°) 2° 1.8° 1° 0.5° 0.4° 0.2° tan RMPX 0.035 0.031 0.017 0.009 0.007 0.003 Cutter Dia. DCX (in) 1.00" 1.25" 1.50" 2.00" 2.50" 3.00" Cutter Dia. DCX (mm) 25mm 28mm 32mm 35mm 40mm 50mm 63mm 80mm Max. Ramping Angle RMPX (°) 5° 4.5° 4° 3.5° 3° 2.5° 2° 1° tan RMPX 0.087 0.078 0.070 0.061 0.052 0.043 0.035 0.017 Inserts 45° 70° Lead Angle 75° Lead Angle 90°/88° Lead Angle High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Other Applications M Ramping Guide Plunging Ramping angle should be under a max (maximum ramping angle) in the above cutting conditions Reduce recommended feed rate in cutting conditions above by 70% Formula for Max. D.O.C. Cutting Length (L) L at Max. Ramping Angle tan RMPX Insert Description Maximum Width of Cut (ae) SOMT10 Type 0.315" SOMT14 Type 0.453" LD and FL chipbreakers are not available for plunging Reduce feed rate to fz 0.008ipt when plunging Helical Milling For Helical milling, use between Min. Drilling Dia. and Max. Drilling Dia. Center Core Remains Drilling Exceeding Max. 1 1 Under Min. Machining Dia. Machining Dia. Holder Min. Drilling Dia. 0Dh1 Max. Drilling Dia. 0Dh2 Max. Ramping Depth per Cycle MFH...-10-... 2xDCX-0.709" 2xDCX-0.079" GM = 0.059" MFH...-14-... 2xDCX-0.984" 2xDCX-0.079" GM = 0.079" Keep machine depth per rotation less than max D.O.C. (APMX) in the cutter dimensions chart Use climb milling. (Refer to detail on right) Feed rates should be reduced to 50% of recommended cutting condition (Page M134 M135) Use caution to eliminate incidences caused by producing long chips 3D Machining (Drilling Diameter) Chipbreaker Ramping Contouring (Rising Wall Angle) Plunging Helical Milling Pocketing GM (90°) LD Limit (65°) X X X FL Limit (80°) X X X Some applications are not available depending on chipbreaker. For FL and LD type, there is a limit of rising wall angle during contouring. Holder GM LD FL Max. Drilling Depth (Pd) Min. Cutting Length (X) for Flat Bottom Surface Max. Drilling Depth (Pd) Min. Cutting Length (X) for Flat Bottom Surface Max. Drilling Depth (Pd) Min. Cutting Length (X) for Flat Bottom Surface MFH...-10-... 0.059" DCX-0.709" 0.059" DCX-0.551" 0.059" DCX-0.591" MFH...-14-... 0.079" DCX-0.945" 0.079" DCX-0.709" 0.079" DCX-0.748" Drilling Depth See Max. Drilling Depth (Pd) in the above cutting conditions Traversing after Drilling It is recommended to reduce feed by 25% of recommendation on Page M134 M135 until Center Core is removed Axial feed rate recommendation per revolution is 0.008 ipr while drilling M136 Kyocera Visit us online at
