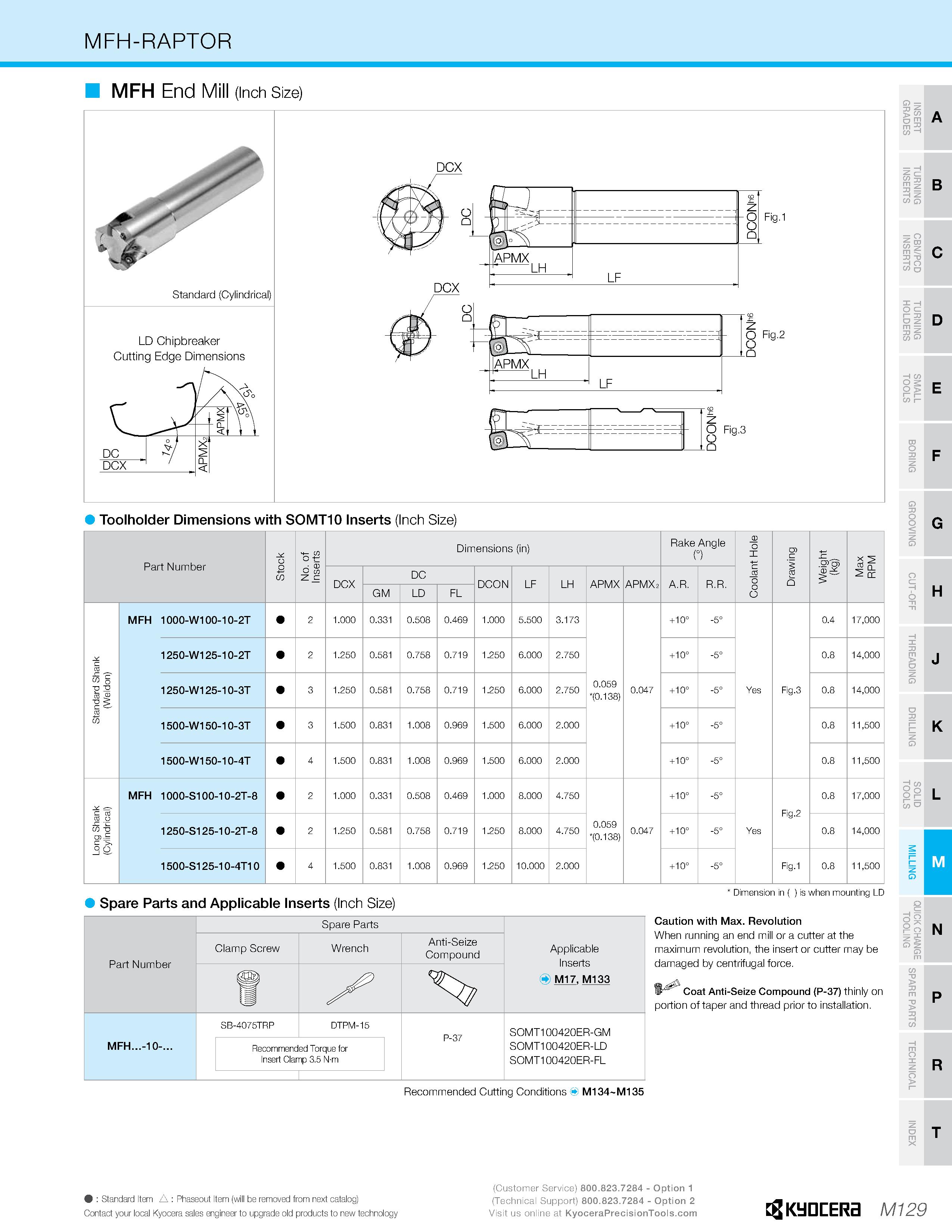

MFH-RAPTOR MFH End Mill (Inch Size) Standard (Cylindrical) LD Chipbreaker Cutting Edge Dimensions DCX Toolholder Dimensions with SOMTIO Inserts (Inch Size) Part Number Stock No. of Inserts Dimensions (in) Rake Angle (°) Coolant Hole Drawing Weight (kg) Max RPM DCX DC LF LH APMX APMX2 A.R. R.R. GM LD FL Standard Shank (Weldon) MFH 1000-W100-10-2T 2 1.000 0.331 0.508 0.469 1.000 5.500 3.173 0.059 (0.138) 0.047 +10° -5° Yes Fig.3 0.4 17,000 1250-W125-10-2T 2 1.250 0.581 0.758 0.719 1.250 6.000 2.750 +10° -5° 0.8 14,000 1250-W125-10-3T 3 1.250 0.581 0.758 0.719 1.250 6.000 2.750 +10° -5° 0.8 14,000 1500-W150-10-3T 3 1.500 0.831 1.008 0.969 1.500 6.000 2.000 +10° -5° 0.8 11,500 1500-W150-10-4T 4 1.500 0.831 1.008 0.969 1.500 6.000 2.000 +10° -5° 0.8 11,500 Long Shank (Cylindrical) MFH 1000-S100-10-2T -8 2 1.000 0.331 0.508 0.469 1.000 8.000 4.750 0.059 (0.138) 0.047 +10° -5° Yes Fig.2 0.8 17,000 1250-S125-10-2T -8 2 1.250 0.581 0.758 0.719 1.250 8.000 4.750 +10° -5° 0.8 14,000 1500-S125-10-4T10 4 1.500 0.831 1.008 0.969 1.250 10.000 2.000 +10° -5° Fig.1 0.8 11,500 V) Q O cz I- T> O m = W B o 5 z Q G O cz -H o H m 6 J Q> O 30 K Spare Parts and Applicable Inserts (Inch Size) Dimension in ( ) is when mounting LD Caution with Max. Revolution When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. Recommended Cutting Conditions M134 M135 T : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M129
